恒压驱动电源

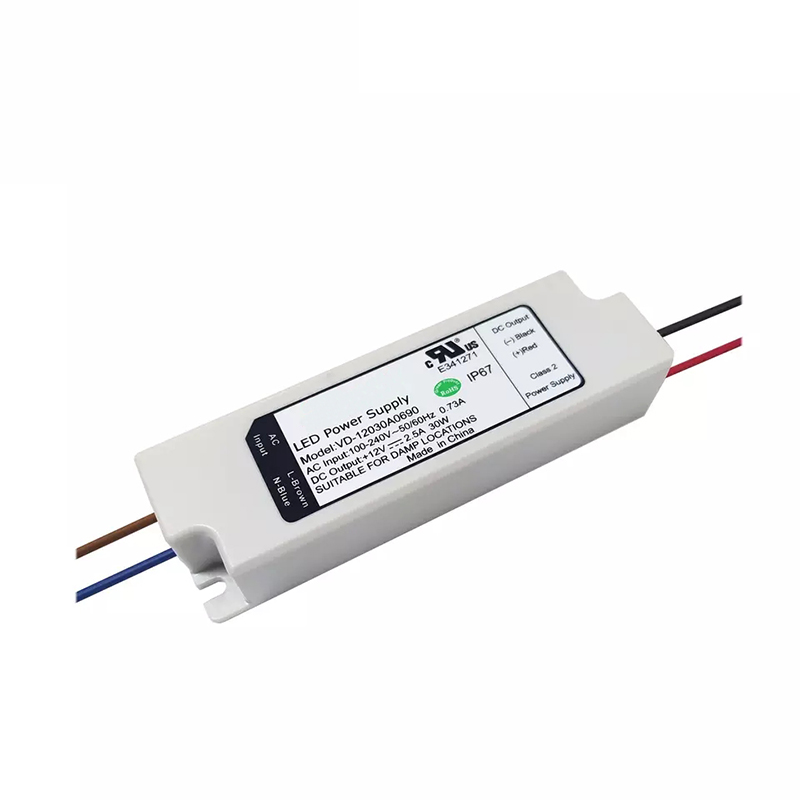

30w 恒压防水电源

Short Description:

Brand: STARWELL

Input Voltage: 200-240VAC

Output Voltage: 24VDC / 12VDC

Output Current: 2.5A / 1.25A

Working Mode: Constant Voltage

Typical efficiency:86%

Size: 182*29*20.5mm

Certification: CE, RoHS

    Specifications

    Item No

    VA-12030D0952

    VA-24030D0952

    VAS-12030D0185

    VAS-24030D0185

    Output Voltage

    12V

    24V

    12V

    24V

    Output Current

    2.5A

    1.25 A

    2.5A

    1.25 A

    Rated power

    30W

    Input Voltage

    170~264Vac or 240~374Vdc

    Efficiency Typ.)

    85.50%

    86.00%

    83.50%

    84.50%

    Power factor

    PF≥0.5/230Vac (at full load)

    PF≥0.9/230V(at full load)

    Waterproof Rating

    IP67

    Warranty

    2/3/5 years

    Certificate

    CE, Rohs, BIS

    CE, Rohs, BIS, EMC

    Working temperature

    -25°C~+50°C

    Working humidity

    10%~90%RH, No Condensation

    Storage temperature and humidity

    -25°C~+75°C, 5%~95%RH

    Dimension

    182*29*20.5mm(L*W*H)

    217X36.5X27mm(L*W*H)

    Package

    0.2Kg/PCS 50PCS/Ctn OKg/box (395*215*180mm)

    0.38Kg/PCS, 50PCS/19Kg/box, (325X260X270mm)

    1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
    2. Derating may be needed under low input voltages. Please check the static characteristics for more details.
    3. Tolerance: includes set up tolerance, line regulation and load regulation.
    4. Ripple & noise are measured at 20MHZ of bandwidth by using twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
    5.The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will
    be affected by the complete installation, the final equipment manufacturers must re-confirm EMC Directive on the complete installation.
    6.The start time was tested under the situation of cold star, continuous switching on/off may raise the start time.

    Should you need specific data sheet, kindly please contact us.

    Features

    Small sizeHigh efficiencyHigh reliabilityLong lifetime.Ip67 rating

    ProtectionOverloadOver-voltageShort-circuit protection

    100% full load aging test. Low output ripple noises;

    Application

    Signage and Back Lit Letters, Self-Content Channel Letters, Light Boxes and Raceway

    Under-Cabinet Installation, RV/Motorhome Lighting, Accent Lighting, or any Low Voltage Project

    Why Us

    1.0We have complete certificates around the world.

    Certified with UL, cUL, Class2, TUV, CE, EMC, SAA, FCC, RoHS, MM, KC, IP67.

    2.Quality guarantee

    We offer 3/5/10 years warranty service.

    3.We have full range of output power and input voltage coverage.

    Output wattage covers 15-200W, AC voltage covers 90V-264V, High PFC

    4.Factory Outlet

    We are a professional manufacturer of LED drivers since 1998 and was the first factory to produce waterproof led driver in mainland China. We keen on offering the most competitive price and the best after-service.
