DALI Dimming LED Driver is one of the constant current dimming LED driver developed by my company with high power factor, high efficiency, high precision, the use of the efficient stable low loss switch control chip and the high performance components makes it with low noise, energy saving,environmental protection,long life and other characteristics.

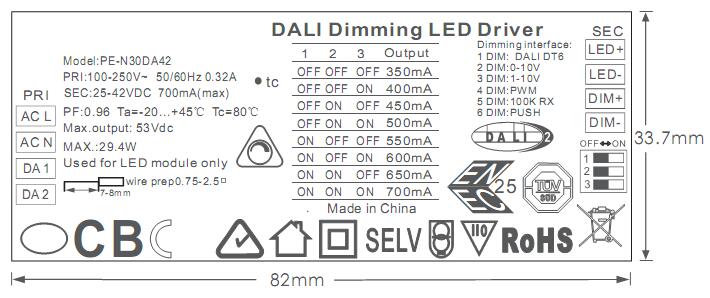

PE-N30DA has DALI/ Push/ 0-10V/1-10V/PWM/R DIM six dimming ways , use the DIP switch to change the dimming function, not interfering with each other, not existing at the same time.
Dimming interface:
1. DALI dimming, use standard DALI signal interface. can match with all DALI control system in the marker.
2.0-10V dimming ,use the standard 0-10V /100K resistance/10V PWM dimming.
30W Constant Current DALI Dimmable LED Driver Features:
1. Integrated DALI/Push/0-10V/1-10V/PWM/R DIM standard dimming interface
2. With PUSH function to realize PUSH dimming
3. Digital control output, flicker free
4. International general AC input 100-250V range
5. Protection type: short circuit / over current / over voltage
6. Natural cold wind
7. Big terminal locked by screw
8. Economic and convenient installation
9. Conform to the world lighting equipment safety standards
10. Protection class II
11. 5-year warranty
12. TUV CE SAA ENEC certificate
13. Size: 147.5*43*30mm
30W Constant Current DALI Dimmable LED Driver Model list:
DALI constant current dimming
| Series | Dimming | Model | Input | Power | PF | Output Voltage | Output Current |
| PE-N14DA 12-14.7W |
DALI/Push/0-10V/1-10V/ 100K Resistor/PWM | PE-N14DA24 | AC100-250V | 12w | 0.88-0.96PF THD<10% | 9-24V | 200/250/280/300/ 350/400/450/500mA |
| PE-N14DA42 | 14.7W | 9-42V | 150/180/200/250/ 280/300/320/350mA | ||||
| PE-N20DA 12-20W |
DALI/Push/0-10V/1-10V/ 100K Resistor/PWM | PE-N20DA24 | AC100-250V | 19.2W | 0.88-0.96PF THD<10% | 9-24V | 450/500/550/600/ 650/700/750/800mA |
| PE-N20DA42 | 21W | 9-42V | 200/250/280/300/ 350/400/450/500mA | ||||
| PE-N30DA 20-30W |
DALI/Push/0-10V/1-10V/ 100K Resistor/PWM | PE-N30DA42 | AC100-250V | 29.4W | 0.88-0.96PF THD<10% | 9-42V | 350/400/450/500/ 550/600/650/700mA |
| PE-N45DA 30-45W |
DALI/Push/0-10V/1-10V /100K Resistor/PWM | PE-N45DA42 | AC100-250V | 44.1W | 0.88-0.96PF THD<10% | 9-42V | 700/750/800/850/ 900/950/1000/1050mA |
| PE-N60DA 30-60W |
DALI/Push/0-10V/1-10V/ 100K Resistor/PWM | PE-N60DA42 | AC200-250V | 58.8W | 0.88-0.96PF THD<10% | 9-42V | 700/800/900/ 1000/1100/1200/ 1300/1400mA |
30W Constant Current DALI Dimmable LED Driver Application:
DALI (Digital Addressable Lighting Interface) LED drivers are used in various scenarios. Here are some common applications:
1. Commercial building lighting
2. Educational Institutions
3. Healthcare facilities
4. Hospitality industry
5. Retail stores
6. Architectural lighting
7. Outdoor lighting
30W Constant Current DALI Dimmable LED Driver Specification:
| Model | PE-N30DA42 | PE-N45DA42 | ||
| OUTPUT | Output Voltage | 9-42Vdc | 9-42Vdc | |
| Max Output Voltage | 42Vdc | 42Vdc | ||
| Non-load Output Voltage | 55Vdc | 55Vdc | ||
| Output Current | 550/600/650/700mA | 900/950/1000/1050mA | ||
| Output Power | 4.95W~29.4W | 8.1W~44.1W | ||
| Strobe Level | No Flicker | |||
| Dimming Range | 0~100%，LEDstart at 0.03%possible. | |||
| PWM Dimming Frequency | >3600Hz | |||
| Current Accuracy | ±3% | |||
| Ripple & Noise | ≤2V (No dimming) | |||
| INPUT | Dimming Interface | DALI (IEC62386), Push /0-10V/1-10V/PWM/100KR DIM Signal control current < 0.1mA | ||
| Input Voltage Range | 100-250Vac | |||
| Frequency | 50/60Hz | |||
| Input Current | <0.37A | <0.56A | ||
| Power Factor | PF>0.95/100Vac, at full load | PF>0.95/100Vac, at full load | ||
| THD | 230Vac@THD ≤15% (full load) | |||
| Efficiency(tys.) | 88% full load | 88% full load | ||
| Inrush Current(typ.) | Cold start 3.7A@230Vac | Cold start 5.6A@230Vac | ||
| Anti Surge | L-N: 2kV | |||
| Leakage Current | <0.25mA/230Vac | |||
| ENVIRONMENT | Working Temperature | ta: 45°C tc: 80°C | ||
| Working Humidity | 20 ~ 95%RH, non-condensing | |||
| Storage Temp., Humidity | -40 ~ 80°C, 10~95%RH | |||
| Temp. Coefficient | ±0.03%/°C(0-50) °C | |||
| Vibration | 10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes. | |||
| PROTECTION | Over-heat Protection | Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, , auto recovers. | ||
| Over Load Protection | Shut down the output when rated power≥102%, auto recovers. | |||
| Short Circuit Protection | Shut down automatically if short circuit occurs, auto recovers. | |||
| Non-load Protection | output Constant Voltage. | |||
| SAFETY & EMC | Withstand Voltage | I/P-O/P: 3750Vac | ||
| Isolation Resistance | I/P-O/P: 100MΩ/500VDC/25°C/70%RH | |||
| Safety Standards | IEC/EN61347-1, IEC/EN61347-2-13 | |||
| EMC Emission | EN55015, EN61000-3-2 Class C, IEC61000-3-3 | |||
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11, EN61547 | |||
| Strobe Test Standard | IEEE 1789 | |||
| OTHERS | Dimension | 147.5(117)×43×30mm(L×W×H) | ||
| Packing | PE bag | |||
| Weight(G.W.) | 187g/245g±10g | |||
Dimensions:
