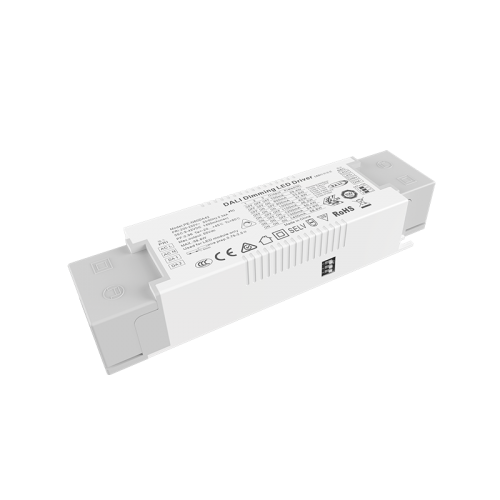

PE-N60DA DALI 调光电源恒流

█ Features:

● Integrated DALI/PUSH/0-10V/1-10V/PWM/R DIM standard dimming interface

● DALI2 certification, DALI member

● Digital control, flicker free Output

● Universal AC input voltage (100-250VAC)

● Protection: short circuit/over voltage/over current

● Natural air cooling, moisture-proof, heat conduction, silica gel heat dissipation process

● Unique design slow light, slow off function

● Suitable for LED home and business intelligent lighting system

● Large diameter copper terminals, convenient installation

● Comply with world lighting safety code

● 8 gears current selection

● 5 years warranty

● Size: 160*43*30mm

Datasheet

You can purchase 60W Constant Current DALI Dimmable LED Driver from STARWELL with confidence, as we are a proficient producer of high-quality 60W Constant Current DALI Dimmable LED Driver. We promise to provide you with the best after-sale service and prompt delivery.

DALI Dimming LED Driver is one of the constant current dimming LED driver developed by my company with high power factor, high efficiency, high precision, the use of the efficient stable low loss switch control chip and the high performance components makes it with low noise, long life and other characteristics.

PE-N60DA have DALI/ Push/ 0-10V/1-10V/PWM/R DIM six dimming ways , Dali is the main default, 6 kinds of dimming mode switching, no interference with each other.<br>

Dimming interface:

1. DALI dimming, use standard DALI signal interface. can match with all DALI control system in the marker.

DALI full name:Digital Addressable Lighting Interface

2.0-10V dimming ,use the standard 0-10V /100K resistance/10V PWM dimming.

3.Push dimming mode is shared with Dali interface, and one of them can be selected.

60W Constant Current DALI Dimmable LED Driver Features:

1. Integrated DALI/Push/0-10V/1-10V/PWM/R DIM standard dimming interface

2. DAL2 certification, DALI member

3. Digital control output, flicker free

4. International general AC input 100-250V range

5. Protection type: short circuit / over current / over voltage

6. Natural air cooling, moisture-proof, Thermal silicone heat dissipation process

7. Suitable for LED home and business intelligent lighting applications

8. Output fast pressure terminal, safe and convenient

9. Comply with world lighting safety code

10. Protection class II

11. 5-year warranty

12. TUV CE SAA ENEC certificate

13. Size: 160*43*30mm

60W Constant Current DALI Dimmable LED Driver Model list:

DALI constant current dimming

Series	Dimming	Model	Input	Power	PF	Output Voltage	Output Current
PE-N14DA 12-14.7W	DALI/Push/0-10V/1-10V/ 100K Resistor/PWM	PE-N14DA24	AC100-250V	12w	0.88-0.96PF THD<10%	9-24V	200/250/280/300/ 350/400/450/500mA
PE-N14DA 12-14.7W	DALI/Push/0-10V/1-10V/ 100K Resistor/PWM	PE-N14DA42	AC100-250V	14.7W	0.88-0.96PF THD<10%	9-42V	150/180/200/250/ 280/300/320/350mA
PE-N20DA 12-20W	DALI/Push/0-10V/1-10V/ 100K Resistor/PWM	PE-N20DA24	AC100-250V	19.2W	0.88-0.96PF THD<10%	9-24V	450/500/550/600/ 650/700/750/800mA
PE-N20DA 12-20W	DALI/Push/0-10V/1-10V/ 100K Resistor/PWM	PE-N20DA42	AC100-250V	21W	0.88-0.96PF THD<10%	9-42V	200/250/280/300/ 350/400/450/500mA
PE-N30DA 20-30W	DALI/Push/0-10V/1-10V/ 100K Resistor/PWM	PE-N30DA42	AC100-250V	29.4W	0.88-0.96PF THD<10%	9-42V	350/400/450/500/ 550/600/650/700mA
PE-N45DA 30-45W	DALI/Push/0-10V/1-10V /100K Resistor/PWM	PE-N45DA42	AC100-250V	44.1W	0.88-0.96PF THD<10%	9-42V	700/750/800/850/ 900/950/1000/1050mA
PE-N60DA 30-60W	DALI/Push/0-10V/1-10V/ 100K Resistor/PWM	PE-N60DA42	AC200-250V	58.8W	0.88-0.96PF THD<10%	9-42V	700/800/900/ 1000/1100/1200/ 1300/1400mA

60W Constant Current DALI Dimmable LED Driver Application:

DALI (Digital Addressable Lighting Interface) LED drivers are used in various scenarios. Here are some common applications:

1. Commercial building lighting

2. Educational Institutions

3. Healthcare facilities

4. Hospitality industry

5. Retail stores

6. Architectural lighting

7. Outdoor lighting

60W Constant Current DALI Dimmable LED Driver Specification:

Model		PE-N60DA42
OUTPUT	Output Voltage	9-42Vdc
	Max Output Voltage	42Vdc
	Non-load Output Voltage	55Vdc
	Output Current	700/800/900/1000/1100/1200/1300/1400mA
	Output Power	6.3W~58.8W
	Strobe Level	No Flicker
	Dimming Range	0~100%，LEDstart at 0.03%possible.
	PWM Dimming Frequency	>3600Hz
	Current Accuracy	±3%
	Ripple & Noise	Power down memory function
INPUT	Dimming Interface	DALI (IEC62386), Push /0-10V/1-10V/PWM/100KR DIM Signal control current < 0.1mA
	Input Voltage Range	100-250Vac
	Frequency	50/60Hz
	Input Current	<0.64A ac110v
	Power Factor	PF>0.99/100Vac, at full load
	THD	230Vac@THD ≤8% (full load)
	Efficiency(tys.)	88%
	Inrush Current(typ.)	Cold start 20A@230Vac
	Anti Surge	L-N: 2kV
	Leakage Current	<0.25mA/230Vac ac( 50% Ipeak test twidth=58.4us )
ENVIRONMENT	Working Temperature	ta: 45°C tc: 80°C
	Working Humidity	20 ~ 95%RH, non-condensing
	Storage Temp., Humidity	-40 ~ 80°C, 10~95%RH
	Temp. Coefficient	±0.03%/°C(0-50) °C
	Vibration	10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.
PROTECTION	Over-heat Protection	Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, , auto recovers.
	Over Load Protection	Shut down the output when rated power≥102%, auto recovers.
	Short Circuit Protection	Shut down automatically if short circuit occurs, auto recovers.
	Non-load Protection	output Constant Voltage.
SAFETY & EMC	Withstand Voltage	I/P-O/P: 3750Vac
	Isolation Resistance	I/P-O/P: 100MΩ/500VDC/25°C/70%RH
	Safety Standards	IEC/EN61347-1, IEC/EN61347-2-13
	EMC Emission	EN55015, EN61000-3-2 Class C, IEC61000-3-3
	EMC Immunity	EN61000-4-2,3,4,5,6,8,11, EN61547
	Strobe Test Standard	IEEE 1789
OTHERS	Dimension	160(130)×43×30mm(L×W×H)
	Packing	PE plastic bag packing
	Weight(G.W.)	245g/245g±10g
