Our company offers a selection of classic models in constant current triac dimmable led drivers. In our small-sized circular series, we have models such as PE280 (8W), PE281 (12W), PE282 (18W), and PE283 (30W). These power supplies are characterized by their compact size and utilize controllable silicon technology to achieve efficient dimming capabilities.

Additionally, we have a classic series of flicker-free dimmable led driver, which include models such as PE294 (12W), PE296 (18W), PE292 (30W), PE299 (36W), and PE298 (50W). These power supplies are designed to eliminate flickering and provide stable illumination.

LED DRIVER SPEC

Model		PE294R2435	PE294R4225	PE294R4230	PE294R24250	PE294R1570	PE294R1570
OUTPUT	Output Voltage	12-24Vdc	25-42Vdc	25-42Vdc	12-24Vdc	6-15Vdc	2.5-6Vdc
	Max Output Voltage	24Vdc	42Vdc	42Vdc	24Vdc	15Vdc	6Vdc
	Non-load Output Voltage	27Vdc	45Vdc	45Vdc	27Vdc	19Vdc	8Vdc
	Output Current	350mA	250mA	300mA	500mA	700mA	700mA
	Output Power	4.2W~8.4W	6.25W~10.5W	7.5W~12.6W	6W~12W	4.2W~10.5W	1.75W~4.2W
	Dimming Range	2~100%,
	Current Accuracy	±5%
	Ripple & Noise	=500mv p-p
INPUT	Dimming Interface	Triac Leading edge / Tralling edge Dimming Led driver
	Input Voltage Range	200-250Vac 50/60Hz
	Input Current	<0.072A	<0.077A	<0.077A	<0.066A	<0.077A	<0.02A
	Power Factor	PF>0.9	PF>0.9	PF>0.9	PF>0.9	PF>0.9	PF>0.9
	THD	230Vac@THD <18% (at full load)
	Efficyency	77%	79%	78%	78%	77%	75%
	Inrush Current(typ.)	Cold start1.44A	Cold start1.54A	Cold start1.54A	Cold start1.32A	Cold start1.54A	Cold start0.4A
ENVIRONMENT	Anti Surge	L-N: 1.5kV
	Leakage Current	<0.25mA/230Vac
	Working Temperature	ta: 45 °C tc: 85 °C
	Working Humidity	20 ~ 95%RH, non-condensing
	Storage Temp., Humidity	-40 ~ 80 °C , 10~95%RH
	Vibration	10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.
PROTECTION	Over-heat Protection	Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, , auto recovers.
	Over Load Protection	Shut down the output when rated power≥102%, auto recovers.
	Short Circuit Protection	Shut down automatically if short circuit occurs, auto recovers.
	Non-load Protection	Shut down the output if no load, auto recovers when load back to normal.
SAFETY	Withstand Voltage	I/P-O/P: 3750Vac
	Isolation Resistance	I/P-O/P: 100MΩ/500VDC/25°C/70%RH
	Safety Standards	IEC/EN61347-1, IEC/EN61347-2-13
	EMC Emission	EN55015, EN61000-3-2 Class C, IEC61000-3-3
	EMC Immunity	EN61000-4-2,3,4,5,6,8,11, EN61547
	Strobe Test Standard	IEEE 1789
OTHERS	Dimension	104×39×26mm(L×W×H)
	Packing	105×40×26.5mm(L×W×H)
	Weight(G.W.)	68g±10g





LED DRIVER MODEL LIS

Constant Voltage TRIAC Dimmable LED DRIVER
Series	MODEL	Input Voltage	Power	Output Voltage	Output Current	Power Factor	Dimension
PE702 series	PE702TV12	200-250VAC	20W	12V DC	1670mA	0.6	135*43.5*26.5mm
	PE702TV24			24V DC	830mA
PE-TL60TV series	PE-TL60TV12	200-250VAC	60W	12V DC	2.5A	0.6	165*37*27mm
	PE-TL60TV24			24V DC	5.0A
PE-TL100TV series	PE-TL100TV12	200-250VAC	100W	12V DC	8.3A	0.6	180*47.5*32mm
	PE-TL100TV24			24V DC	4.2A
PE-TL150TV series	PE-TL150TV12	200-250VAC	150W	12V DC	10.0A	0.6	230*47.5*32mm
	PE-TL150TV24			24V DC	6.25A
PE-TL250TV series	PE-TL250TV24	200-250VAC	250W	24V DC	10.5A	0.6	264.5*47.5*32mm
PE-TL300TV series	PE-TL300TV24	200-250VAC	300W	24V DC	12.5A	0.6	264.5*47.5*32mm
Constant Current TRIAC DIMMING LED DRIVER
Series	MODEL	Input Voltage	Power	Output Voltage	Output Current	Power Factor	Dimension
PE294R series	PE294R4230	200-250VAC or 90-130VAC	12.6W	25-42V DC	0-300mA	0.95	98*39*26mm
	PE294R2450		12W	12-24V DC	0-500mA	0.95
	PE294R1570		10.5W	6-15V DC	0-700mA	0.95
	PE294R0670		4.2W	2.5-6V DC	0-700mA	0.95
PE296R series	PE296R2470	200-250VAC or 90-130VAC	16.8W	12-24V DC	0-700mA	0.95	132*44*29mm
	PE296R4240		16.8W	25-42V DC	0-400mA	0.95
	PE296R3845		16.8W	25-38V DC	0-450mA	0.95
	PE296R6030		18W	43-60V DC	0-300mA	0.95
	PE296R7025		17.5W	42-70V DC	0-400mA	0.95
PE292R series	PE292B2490	200-250VAC or 90-130VAC	21.6W	12-24V DC	0-900mA	0.95	156.5*44*29mm
	PE292R4270		29.4W	25-42V DC	0-700mA	0.95
	PE292R7040		28W	43-70V DC	0-400mA	0.95
	PE292R6050		30W	43-60V DC	0-500mA	0.95
PE299B series	PE292B42105	200-250VAC or 90-130VAC	44.1W	25-42V DC	0-1050mA	0.95	156.5*44*29mm
	PE292B7060		43W	43-70V DC	0-600mA	0.95
PE298B series	PE298B24200	200-250VAC or 90-130VAC	50W	12-24V DC	0-2000mA	0.95	208.0*44.5*33.5mm
	PE298B42120		50W	25-42V DC	0-1200mA	0.95
	PE298B7070		50W	43-70V DC	0-700mA	0.95

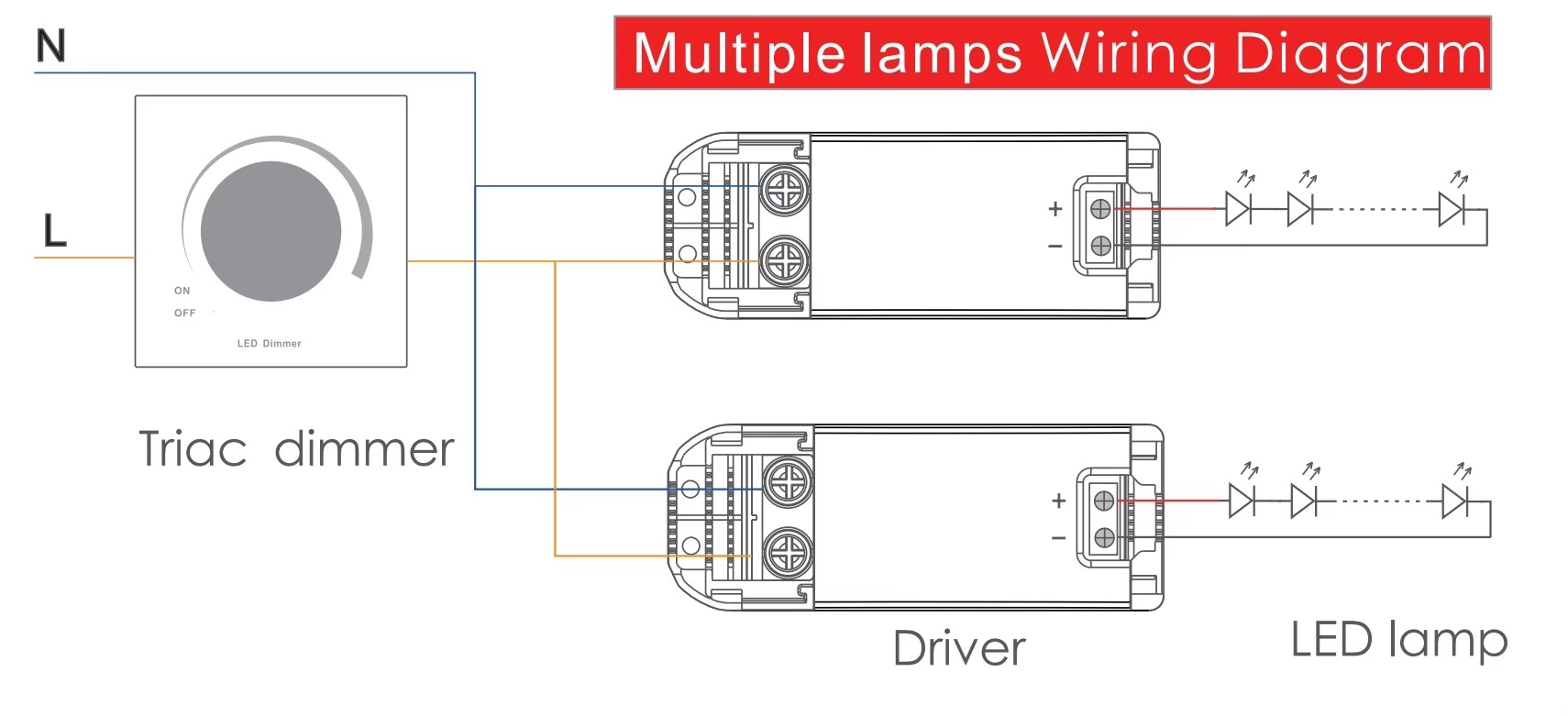

Wiring Diagrame:
