PE280系列可控硅调光电源

█ Features:

● LED phase-cut dimming driver, dimming range 2-100%

● used for RPC Mosfet Dimmer and FPC Traic dimmer

● Active PFC

● Protections: Short circuit/over voltage/over current protection

● Natural air cooling

● Big terminal locked by screw

● Economic and convenient installation

● 3 years warranty

● size: 47.4*29.3*20.8mm(LxWxH)

Datasheet

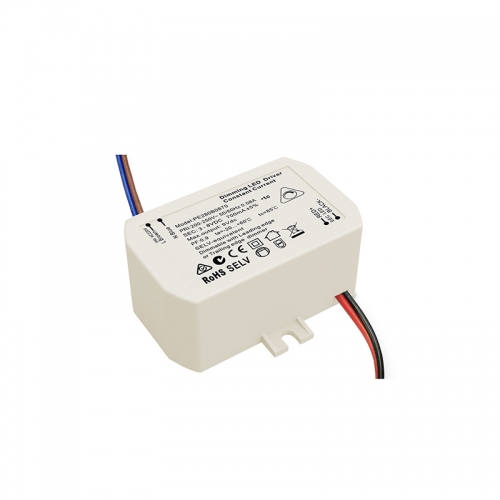

8W small size built-in Triac dimming led driver

Triac dimming with constant current allows for accurate control of lighting brightness by utilizing bidirectional semiconductor switches. It is commonly applied in conjunction with constant current LED drivers to achieve adjustable illumination levels, providing flexibility and versatility in lighting applications.

PE280 is one of the constant current dimming LED driver developed by my company with high power factor, high efficiency, high precision, the use of the efficient stable low loss switch control chip and the high performance components makes it with low noise, energy saving, environmental protection, long life and other characteristics.

The driver adopts silica gel heat conduction technology, which can withstand 55℃ high temperature.

Features:

. Constant Current design

. Input Voltage AC200-250V

. LED phase-cut dimming driver, dimming range 2-100%

. Suitable for RPC MOSFET dimmer and FPC TRAIC dimmer

. Active PFC

. Protections: short circuit/over voltage/over current

. Silica gel heat conduction technology

. Natural cold wind

. Ultra small volume

. Suitable for LED home lighting and commercial lighting

. Economic and convenient installation

. Conform to the world lighting equipment safety standards

. Protection class II

. Three years warranty

. CE SAA C-TICK certificate

. Size: 50*29.3*20.8mm

Model list:

Series	Model	Input	Power	PF	Output Voltage	Output Current
PE280 3-8.4W	PE280B0670	PE280B: AC200V-250V	4.2W	0.88-0.91PF	2.5-6V	700mA
	PE280B4220		8.4W		25-42V	200mA
	PE280B2435		8.4W		12-24V	350mA
	PE280B1270		8.4W		6-12V	700mA

Application:

Triac dimming LED driver are commonly used in various types of lighting fixtures and scenes.

1. Residential lighting

2. Commercial lighting

3. Hospitality and Entertainment lighting

4. Architectural Lighting

5. Outdoor Lighting

6. Art Galleries and Museums lighting.

Specification:

Model		PE280B2435	PE280B4220	PE280B0670	PE280B1270	PE280B2430
OUTPUT	Output Voltage	12-24Vdc	25-42Vdc	2.5-6Vdc	6-12Vdc	12-24Vdc
	Max Output Voltage	24Vdc	42Vdc	6Vdc	12Vdc	24Vdc
	Non-load Output Voltage	27Vdc	43Vdc	8Vdc	15Vdc	27Vdc
	Output Current	350mA	200mA	700mA	700mA	300mA
	Output Power	4.2W~8.4W	5W~8.4W	1.75W~4.2W	4.2W~8.4W	3.6W~7.2W
	Strobe Level	Lower flicker(8%)
	Dimming Range	2~100%，
	PWM Dimming Frequency
	Current Accuracy	±5%
	Ripple & Noise	=500mv p-p
INPUT	Dimming Interface	Triac Leading edge/Tralling edge
	Input Voltage Range	200-250Vac
	Frequency	50/60Hz
	Input Current	<0.08A	<0.08A	<0.08A	<0.08A	<0.08A
	Power Factor	PF>0.9(at full load)	PF>0.9(at full load)	PF>0.88(at full load)	PF>0.88(at full load)	PF>0.88(at full load)
	THD	230Vac@THD <20% (at full load)
	Efficiency	77%	79%	77%	77%	77%
	Inrush Current(typ.)	Cold start0.8A	Cold start0.8A	Cold start1.54A	Cold start0.8A	Cold start0.8A
	Anti Surge	L-N: 1.5kV
	Leakage Current	<0.25mA/230Vac
ENVIRONMENT	Working Temperature	ta: 55 °C tc: 85 °C
	Working Humidity	20 ~ 95%RH, non-condensing
	Storage Temp., Humidity	-40 ~ 80 °C , 10~95%RH
		±0.03%/°C(0-50)°C
	Vibration	10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.
PROTECTION	Over-heat Protection	Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, , auto recovers.
	Over Load Protection	Shut down the output when rated power≥102%, auto recovers.
	Short Circuit Protection	Shut down automatically if short circuit occurs, auto recovers.
	Non-load Protection	Shut down the output if no load, auto recovers when load back to normal.
SAFETY & EMC	Withstand Voltage	I/P-O/P: 3750Vac
	Isolation Resistance	I/P-O/P: 100MΩ/500VDC/25°C/70%RH
	Safety Standards	IEC/EN61347-1, IEC/EN61347-2-13
	EMC Emission	EN55015, EN61000-3-2 Class C, IEC61000-3-3
	EMC Immunity	EN61000-4-2,3,4,5,6,8,11, EN61547
	Strobe Test Standard	IEEE 1789

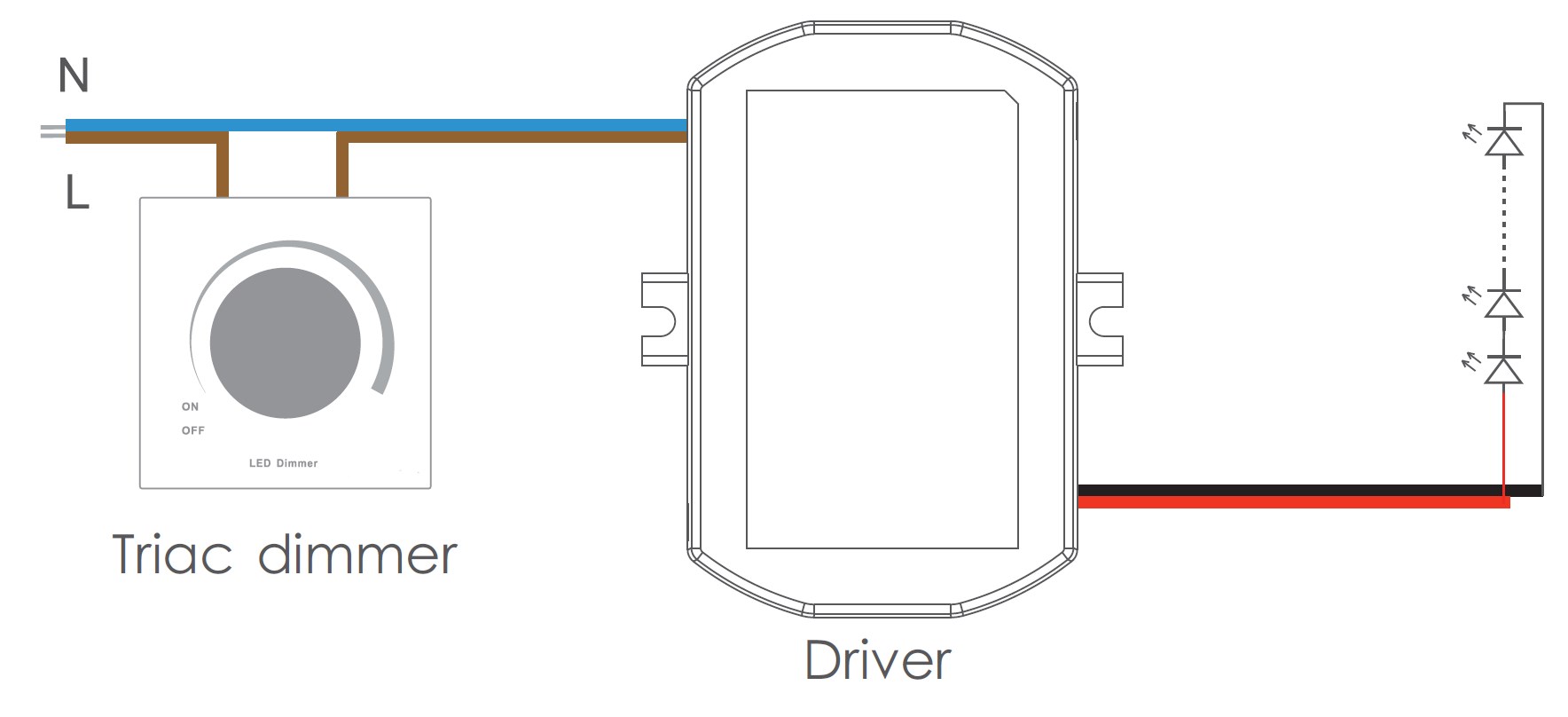

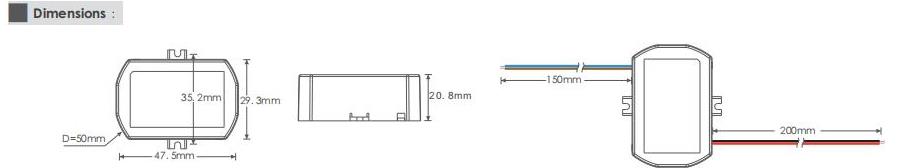

OTHERS	Dimension	47.4×29.3×20.8/50mm(L×W×H/D)
	Packing	PE bag
	Weight(G.W.)	42g±5g
