Constant Current 0/1-10V dimmable driver

60W 0-10V Dimmable Led Driver

█  Features:

● Integrated 0-10V/1-10V/10V PWM/100k resistor dimminig

● Digital control, flicker free Output

● Universal AC input range: 100-250VAC

● Protections: Short circuit/over voltage/over current protection

● Natural air cooling

● Built-in MCU, compatible with 0-10V & 1-10V dimming

● Dimming range 0-100%

● Signal reverse connection protection.

● 8 gears current selection

● size: 160*43*30mm(LxWxH)

      STARWELL is one of 60W Constant Current 0-10V Dimmable LED Driver manufacturers and suppliers in China who can wholesale 60W Constant Current 0-10V Dimmable LED Driver. We can provide professional service and better price for you. If you interested in 60W Constant Current 0-10V Dimmable LED Driver, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.

    The CPU for PE-N60AA is used to control the dimming curve and the mixed frequency control to achieve the visual angle perception brightness. The raw materials used are first-line brands and imported chips are designed for ultra deep dimming, It matches a variety of intelligent dimming systems on the market, accurately controls the brightness, comes with a slow start-up and ultra small size design.


    60W Constant Current 0-10V Dimmable LED Driver Features:

    1. integrate multiple signal dimming interfaces

    2. digital control output without stroboscopic

    3. AC input 200-250v range

    4. natural air cooling, moisture-proof, heat conducting silicone heat dissipation process

    5. deep dimming design

    6. multiple protection functions

    7. crimping design, convenient and fast

    8. TUV CE SAA ENEC certificate

    9. 160*43*30mm

    60W Constant Current 0-10V Dimmable LED Driver Model list:

    0/1-10V constant current dimming

    Series Dimming Model Input Power PF Output voltage Output current
    PE-N60AA

    21-30W
    0-10V
    1-10V
    PWM 10V
    100K
    Resistor PUSH
    PE-N60AA42 AC200-250V 58.8W 0.88-0.96PF THD<10% 9-42V 700/800/900/1000/1100/ 1200/1300/1400mA

    60W Constant Current 0-10V Dimmable LED Driver Application:

    1. Led monochrome light source

    2. villa intelligent lighting

    3. wireless intelligent lighting system can be accessed

    4. museum lighting

    5. high end commercial lighting

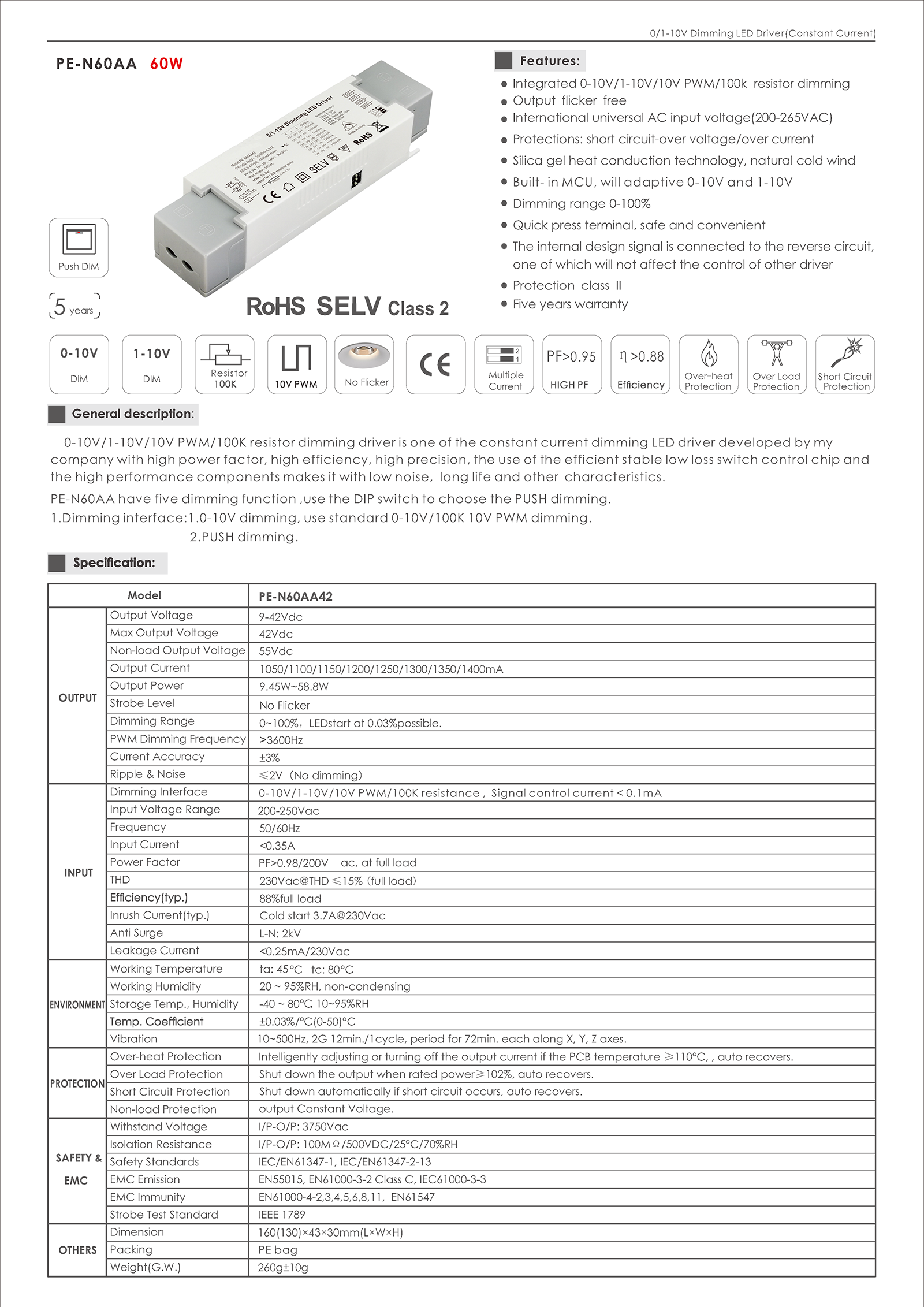

    60W Constant Current 0-10V Dimmable LED Driver Specification:

    Model PE-N60AA42
    OUTPUT Output Voltage 9-42Vdc
    Max Output Voltage 42Vdc
    Non-load Output Voltage 55Vdc
    Output Current 700/800/900/1000/1100/1200/1300/1400mA
    Output Power 6.3W~58.8W
    Strobe Level No Flicker
    Dimming Range 0~100%,LED start at 0.3%possible.
    PWM Dimming Frequency >3600Hz
    Current Accuracy ±5%
    Power down mode No signal maximum brightness output
    INPUT Dimming Interface 0-10V 1-10V signal interface current <2ma / PUSH(P1 P2)
    Input Voltage Range 200-250Vac
    Frequency 50/60Hz
    Input Current <0.34A ac230v
    Power Factor PF>0.98/230V ac(at full load)
    THD 230Vac@THD <8% (at full load)
    Efficency(typ.) 87%
    Inrush Current(typ.) cold start30A@230Vac
    Anti Surge L-N: 1.5kV
    Leakage Current <0.25mA/230Vac
    ENVIRONMENT Working Temperature ta: 45°C tc: 80 °C
    Working Humidity 20 ~ 95%RH, non-condensing
    Storage Temp., Humidity -40 ~ 80°C, 10~95%RH
    Temp.Coefficient ±0.03%/°C(0-50)°C
    Vibration 10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.
    PROTECTION Over-heat Protection Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, , auto recovers.
    Over Load Protection Shut down the output when rated power≥102%, auto recovers.
    Short Circuit Protection Shut down automatically if short circuit occurs, auto recovers.
    Non-load Protection output Constant Voltage.
    SAFETY
    & EMC
    Withstand Voltage I/P-O/P: 3750Vac
    Isolation Resistance I/P-O/P: 100MΩ/500VDC/25°C/70%RH
    Safety Standards IEC/EN61347-1, IEC/EN61347-2-13
    EMC Emission EN55015, EN61000-3-2 Class C, IEC61000-3-3
    EMC Immunity EN61000-4-2,3,4,5,6,8,11, EN61547
    Strobe Test Standard IEEE 1789
    OTHERS Dimension 160(130)×43×30mm(L×W×H)
    Packing Box
    Weight(G.W.) 260g±10g

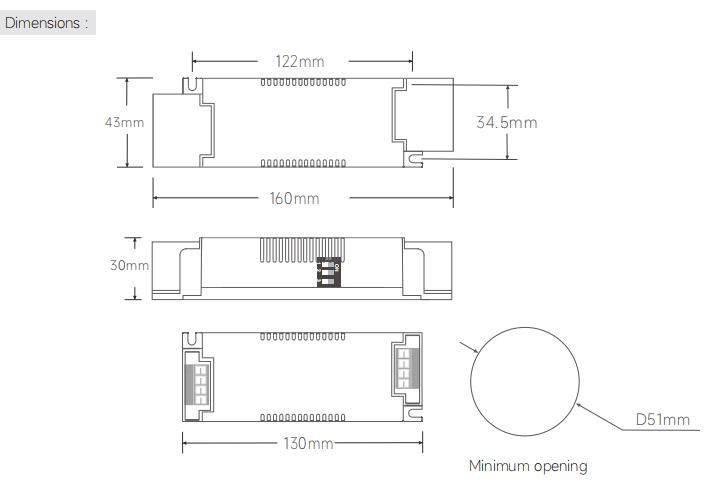

    Dimensions:

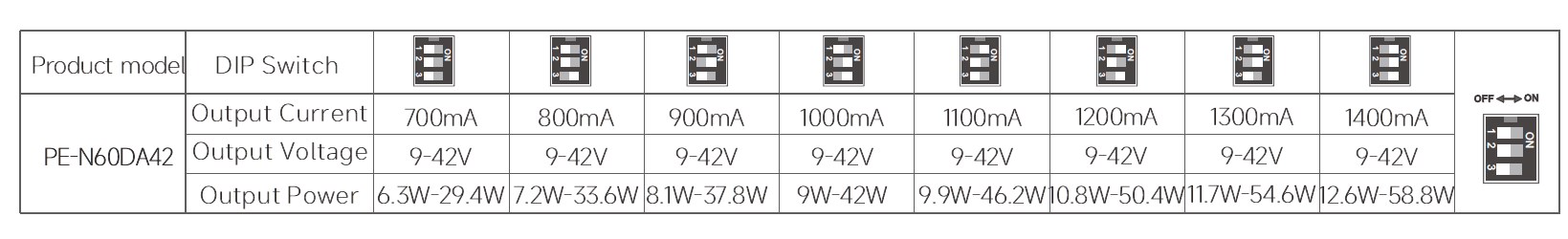

    0-10V DIMMABLE LED DRIVER CURRENT SETTING:

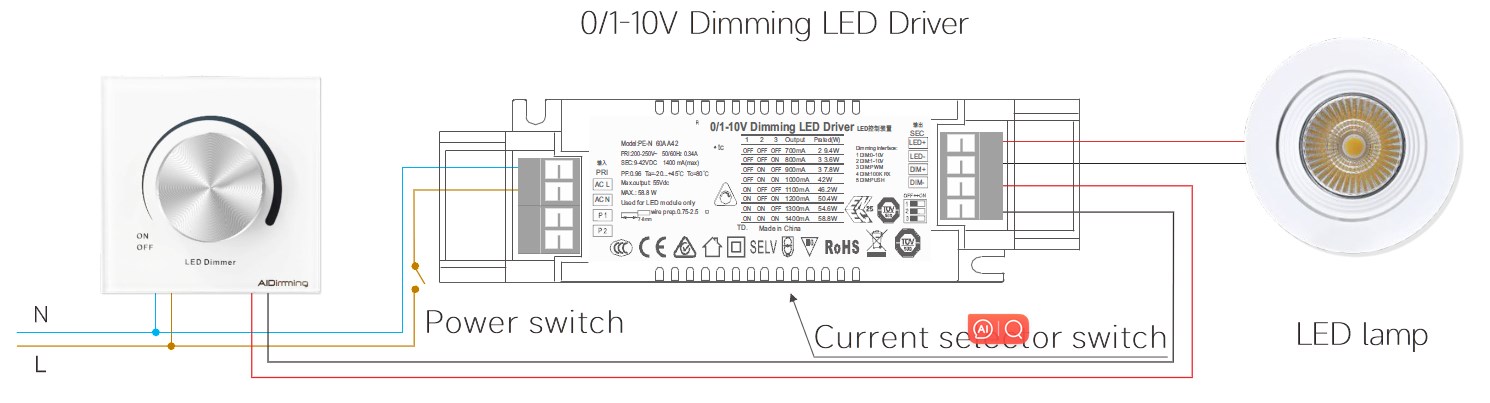

    0-10V DIMMING DIAGRAM:

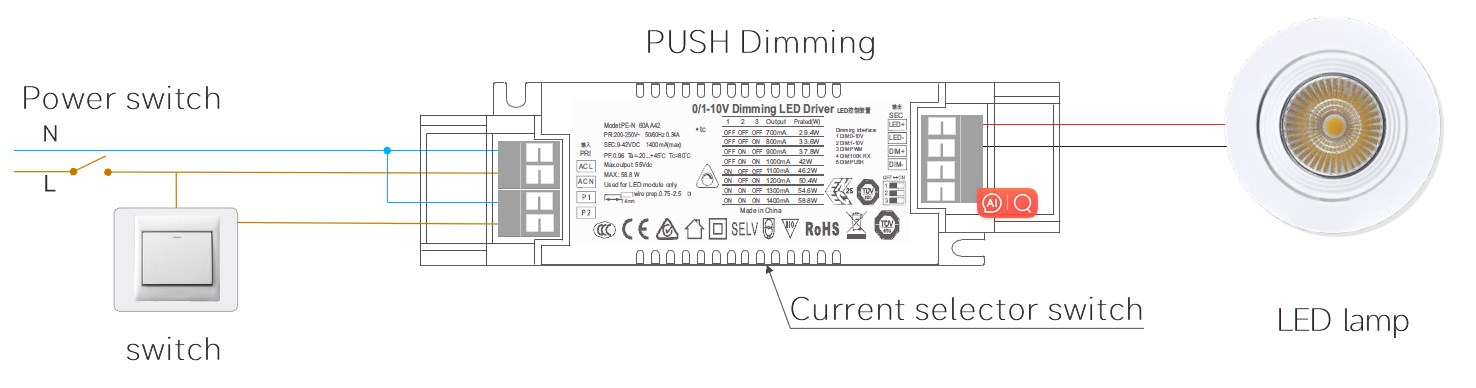

    PUSH Dimming DIAGRAM:

    The use of guidance:

    Unless otherwise specified, all specifications and parameters are measured at 230VAC input, rated load and 25 ℃ Ambient Temperature

    This product has a press line cap at the input, with self-locking clamping, it can be opened up with a screwdriver, then you will see the input terminal connected with the AC line L and the null lime N, The output terminal connect a according to the product label, notice the positive and negative pole.

    1:please pay attention to the distinction between input and out put , connect correctly, then power on

    2:please connect first the load of the DC output, open the driver after checking; in the constant current mode, if power on at open circuit, please turn off the driver and can’t connect the LED until the electric energy stored by the output release, or it may damage the LED ;

    3.this type of driver is only limited to the use of the LED lamps ,the input voltage range is AC100-250V,the heat insulation cotton and other items that obstruct the heat dissipation of the product, which conforms to the product under the specified output voltage, current range, the use environment temperature is -20-45 degrees, and the surface can not cover the conditions of the environment, this product enjoys 5 years of free warranty.

    1.the LED lamp doesn’t bright after the dimming driver is connected at the first time, please turn off the AC input and check as follow:

    1)whether or not DC output bad contact;

    2)whether DC output polarity is reversed, or the LED board is welded anti;

    3)whether AC input is bad contact, test after eliminating these failures;

    2.the device has good connection, LED lights, but the LED flicker, please turn off the AC input and check as follow:

    1).whether or not the parameters and actual parameters match.

    2).please timely communicate with us if you have any questions in the using, we will try our best to solve the problems with you.

    Difference between 0-10V and 1-10V:

    1.When the 0 / 10V dimmer is adjusted to the maximum 10V, the output current will reach 100% of the power output, and the brightness will reach 100%. When the 0-10V dimmer is adjusted to 0V,the current will be the minimum, and the light will be turned off; When the 1-10V dimming is adjusted to 1V, the current is the minimum and the light is off.

    2.Difference between 0-10V and 1-10V dimming: different starting and closing voltage, 0-10V is on at 0.7V, (the min brightness) 1-10V is on at 1.2V (the min brightness).

    3.Digital dimming driver 0-10V and 1-10V dimming automatic identification two dimming modes.

    4.The same signal circuit controls light and dark at the same time.

    5.Dimmer (dimming system) is divided into 0-10V and 1-10V dimming signals.

    6.Dimming compatibility is related to the control distance of signal line and the number of control power supply. If the number is too large or the signal line is too long, problems such as can not adjusted lower and can not adjusted off will occur.

    Product warranty scope:

    1. the signal control interface shall not be connected to a voltage higher than 15V to damage the power supply

    2. input and output connections are reversed, resulting in power damage

    3. the power supply is damaged due to water ingress
