Onboard Battery charger

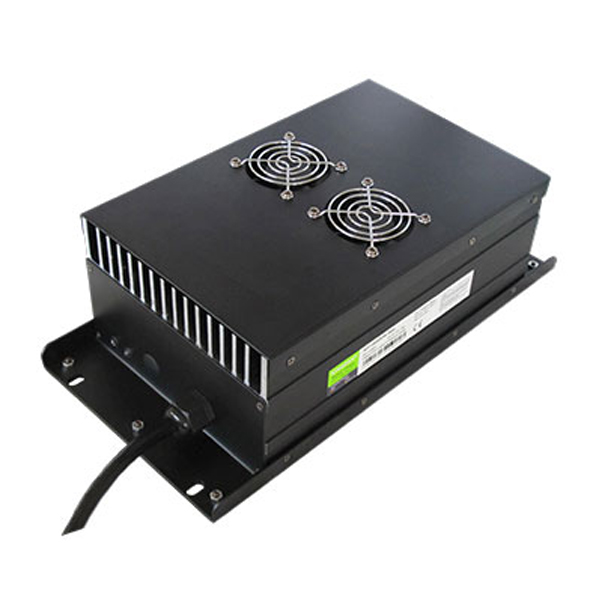

1.5KW Onboard Battery Charger

MODEL: KP1500DR

Input voltage: 110V -230V or 380v

Output: 12V 24V 36V 60V 72V 144V 288V

POWER: 1500W

Charger type: Li-FePO4 charger , Li-ion charger and lead acid charger

Control mode: Intelligent independent digital control chip

Handshake protocol: CAN BUS ( optional )

Waterproof and Shockproof for Vehicle mounted.

Application: Electric motorcycles, sweeper, goft car, e-scooter. AGV, forklift .etc

    This product is manufactured STARWELL located in Shenzhen, China. The 1.5kw OBC chargers in this series feature an integrated die-casting shell structure, ensuring enhanced strength and durability. The inner part of the charger utilizes a glue-filling process to secure internal components and prevent damage.

    These chargers are versatile and compatible with various battery types, including flooded batteries, sealed (VRLA gel) lead-acid batteries, lithium batteries, Ni-MH batteries, Ni-CD batteries, and more. They are designed for both cyclic charging and floating charging of battery packs used in electric cars, motorcycles, sightseeing cars, cycle charging cars, forklifts, communications equipment, electric power devices, ships, and other applications.

    The 1.5kw OBC chargers are equipped with comprehensive protection features, such as overcharging protection, over-discharging protection, short circuit protection, and overcurrent protection. These safety measures ensure reliable and secure charging processes.

    Furthermore, the 1.5kw OBC chargers incorporate an intelligent charging management system that adjusts charging parameters based on the battery‘s condition and requirements, optimizing charging efficiency and extending battery lifespan.

    Manufactured by Starwell Technology, these chargers offer high efficiency and rapid charging capabilities, resulting in reduced charging time and energy consumption. They also allow for adjustable charging currents and voltages to accommodate different battery charging needs.

    Overall, these chargers from Starwell Technology are reliable, efficient, and suitable for a wide range of applications. Whether for personal or commercial use, they provide dependable charging solutions for various electric vehicles, power equipment, and marine applications.

    Technical parameter

    AC input voltage range:180-260VAC;45-65Hz

    AC Input Maximum Current:≤6A@220VAC

    Power factor:≥0.98

    Maximum efficiency:93.0%(full load)

    Noise:≤45dB

    Grade of waterproof:IP67

    Weight:3kg

    Operating temperature:-30℃-+55℃

    Storage temperature:-40℃-+95℃

    CAN bus control is optional; three-color indicator lights can be attached to the outside; charging lock (charging process can be locked by relay vehicle power system). To meet the charging requirements of various occasions

    Specification:
    Charger type lifepo4 charger , Li-ion charger and lead acid charger
    Input voltage 110V or 220V or 150v-300v
    Output voltage 48V
    Color Silver / black / customized
    Max Power Can be customized
    Control mode Intelligent independent digital control chip
    Customize charging way Yes. (Pre-charging, automaticly shut off, over charging protection etc)
    Efficiency 85-88%
    Warranty 2 years
    Case Aluminum / plastic
    Application Electric motorcycles, sweeper, goft car, e-scooter, forklift, storage energy etc.

    MODEL LIST:

    Rated voltage of battery pack Max. Output voltage Max. Output current
    24V 34V 30A
    36V 51V 30A
    48V 68V 20A
    72V 102V 15A
    72V 102V 18A

    Waterproof And Shockproof
    Car Digital Charger

    Scope of Application

    11

    Electric motorcycle

    11

    Electric forklift

    11

    Drone

    11

    Golf cart

    11

    AGV

    11

    Lawn mower



    Advantage

    • All-aluminum casing starwell patent

      Full silent, more advanced charging experience

    • Indicator light

      The charging situation can be grasped at any time, making your charging experience more comfortable

    • European and American original IC, IGBT

      Stable performance, safe and reliable

    • IP65 protection class

      All key components are treated with glue,
      waterproof, dustproof and salt-proof


    Technical Parameter

    1-- Full automatic transition of CC, CV and Float/cut-off (CC, CV 3-stage charger).

    2-- Precise limit of voltage & current, guarantee fully charged and avoid over charge

    3-- Over Voltage/Current Protection: Yes

    4-- High Temperature Protection: Yes

    5-- Short Circuit and Reverse Polarity Protection: Yes

    6-- Two LED indicators, Aluminium, elegant and reliable

    7-Patent pending: 2-year Warranty

    Note: Voltages and Currents can be customized by Customers‘ Requirement.



















    No.

    Volts

    Constant Voltage

    Constant Current

    Float Voltage (Lead Acid Only)

    Cut-Off Current

    Dimenson (mm)

    Lead Acid

    Lithium Ion

    Lifepo4

    Max(A)

    Lead Acid

    Li

    1

    12V

    14.7V

    16.8V

         14.6V

    50A

    13.8V

    12.5A

    2.5A

    265*160*115

    2

    24V

    29.4V

    29.4V

    29.2V

    40A

    27.6V

    10.0A

    2.0A

    3

    36V

    44.1V

    42.0V

    43.8V

    30A

    41.4V

    7.5A

    1.5A

    4

    48V

    58.8V

    54.6V

    58.4V

    25A

    55.2V

    6.25A

    1.25A

    5

    60V

    73.5V

    75.6

    73.0

    20A

    69.0V

    5.0A

    1.0A

    6

    144V

    176.4V

    176.4V

    175.2V

    15A

    165.6V

    3.75A

    0.75A

    7

    288V

    352.8V

    352.8V

    350.4V

    4A

    331.2

    1.0A

    0.2A
