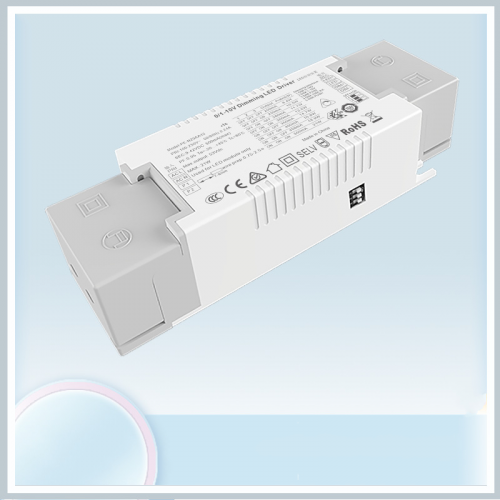

Series	Dimming	Model	Input	Power	PF	Output voltage	Output current
PE-N14AA 3-14.7W	0-10V 1-10V PWM 10V 100K Resistor PUSH	PE-N14AA24	AC100-250V	12W	0.88-0.96PF THD<10%	9-24V	200/250/280/300/350/400/450/500mA
		PE-N14AA42		14.7W		9-42V	150/180/200/250/280/300/320/350mA
PE-N20AA 12-20W	0-10V 1-10V PWM 10V 100K Resistor PUSH	PE-N20AA24	AC100-250V	19.2W	0.88-0.96PF THD<10%	9-24V	450/500/550/600/650/700/750/800mA
		PE-N20AA42		21W		9-42V	200/250/280/300/350/400/450/500mA

Model		PE-N14AA42	PE-N14AA24	PE-N20AA42	PE-N20AA24
OUTPUT	Output Voltage	9-42Vdc	9-24Vdc	9-42Vdc	9-24Vdc
	Max Output Voltage	42Vdc	24Vdc	42Vdc	24Vdc
	Non-load Output Voltage	53Vdc	33Vdc	53Vdc	33Vdc
	Output Current	150/180/200/250 /280/300/320/350mA	200/250/280/300 /350/400/450/500mA	200/250/280/300 /350/400/450/500mA	450/500/550/600 /650/700/750/800mA
	Output Power	2W~14.7W	2W~12W	2W~21W	4W~19.2W
	Strobe Level	No Flicker
	Dimming Range	0~100%，LEDstart at 0.3%possible.
	PWM Dimming Frequency	>3600Hz
	Current Accuracy	±5%
	Power down mode	No signal maximum brightness output
INPUT	Dimming Interface	0-10V 1-10V signal interface current <2ma / PUSH(P1 P2)
	Input Voltage Range	100-250Vac
	Frequency	50/60Hz
	Input Current	<0.14A ac230v		<0.23A ac230v
	Power Factor	PF>0.95/230V ac(at full load)		PF>0.96/230V ac(at full load)
	THD	230Vac@THD <10% (at full load)
	Efficency(typ.)	82%		84%
	Inrush Current(typ.)	cold start30A@230Vac
	Anti Surge	L-N: 1.5kV
	Leakage Current	<0.25mA/230Vac
ENVIRONMENT	Working Temperature	ta: 45°C tc: 80 °C
	Working Humidity	20 ~ 95%RH, non-condensing
	Storage Temp., Humidity	-40 ~ 80°C, 10~95%RH
	Temp.Coefficient	±0.03%/°C(0-50)°C
	Vibration	10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.
PROTECTION	Over-heat Protection	Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, , auto recovers.
	Over Load Protection	Shut down the output when rated power≥102%, auto recovers.
	Short Circuit Protection	Shut down automatically if short circuit occurs, auto recovers.
	Non-load Protection	output Constant Voltage.
SAFETY & EMC	Withstand Voltage	I/P-O/P: 3750Vac
	Isolation Resistance	I/P-O/P: 100MΩ/500VDC/25°C/70%RH
	Safety Standards	IEC/EN61347-1, IEC/EN61347-2-13
	EMC Emission	EN55015, EN61000-3-2 Class C, IEC61000-3-3
	EMC Immunity	EN61000-4-2,3,4,5,6,8,11, EN61547
	Strobe Test Standard	IEEE 1789

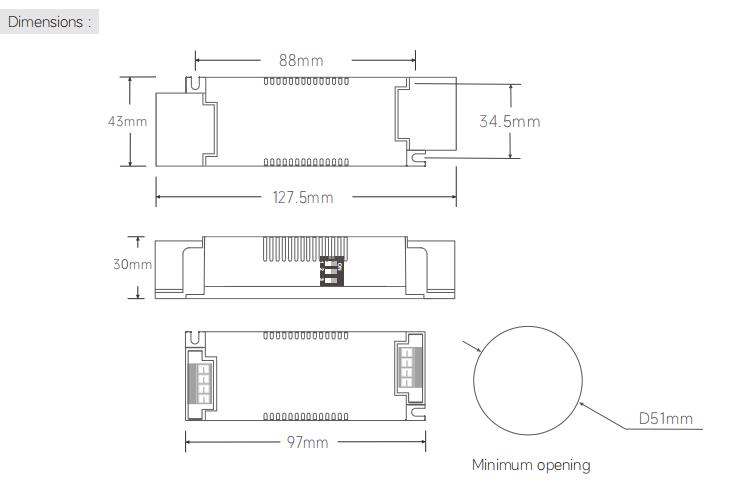

OTHERS	Dimension	127.5(97)×43×30mm(L×W×H)
	Packing	Box
	Weight(G.W.)	192g±10g

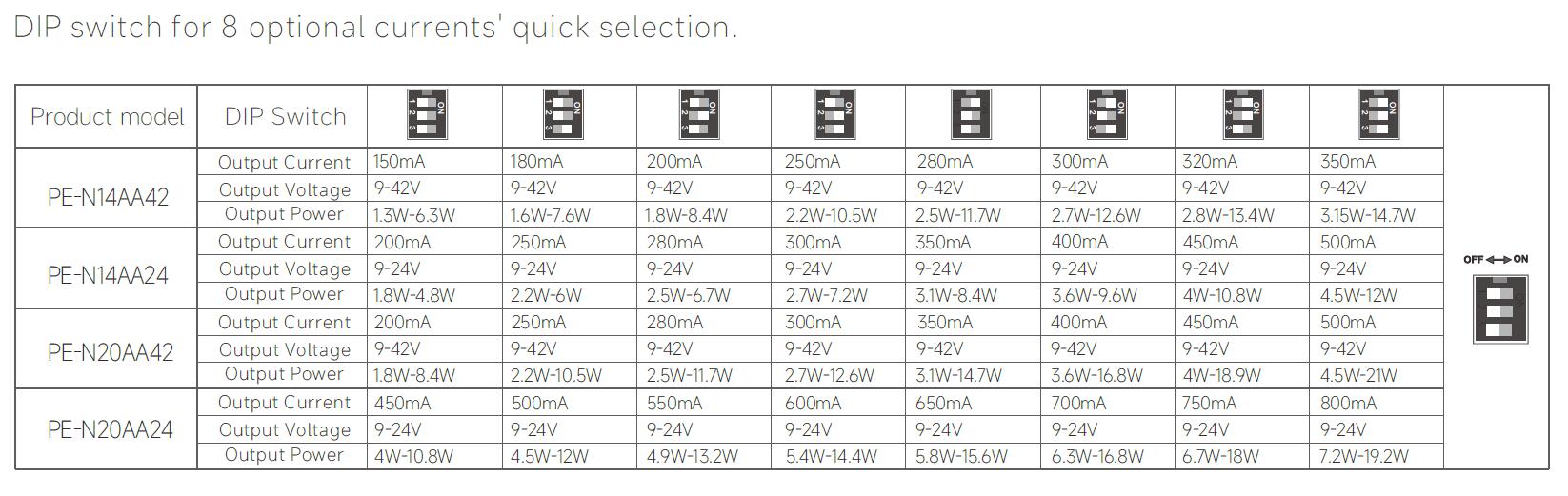

DIP SWITHC FOR 8 optional currents quick selection.

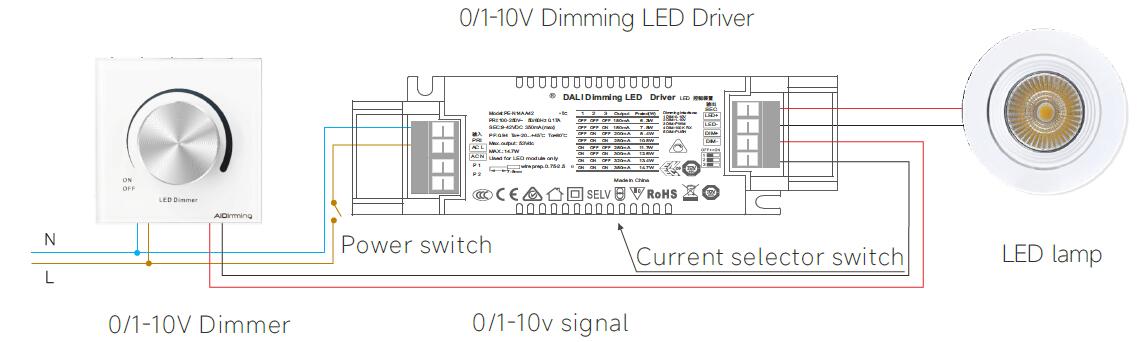

0-10V dimming diagram:

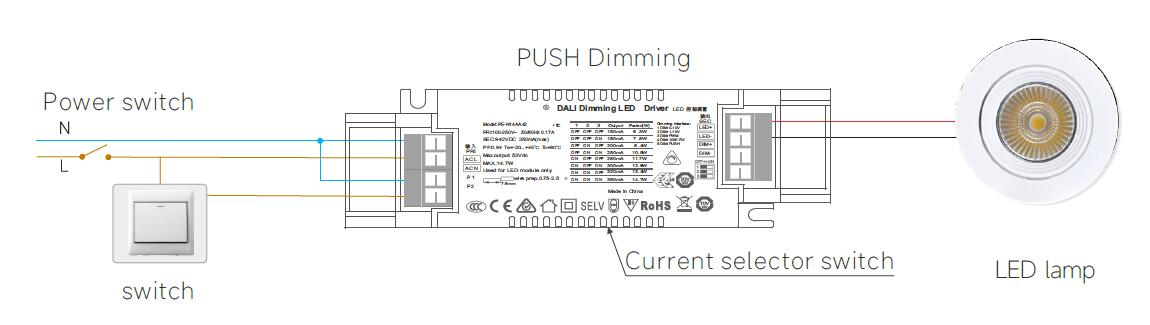

PUSH Dimming dagram:

The use of guidance:

Unless otherwise specified, all specifications and parameters are measured at 230VAC input, rated load and 25 ℃ Ambient Temperature

This product has a press line cap at the input, with self-locking clamping, it can be opened up with a screwdriver, then you will see the input terminal connected with the AC line L and the null lime N, The output terminal connect a according to the product label, notice the positive and negative pole.

1:please pay attention to the distinction between input and out put , connect correctly, then power on

2:please connect first the load of the DC output, open the driver after checking; in the constant current mode, if power on at open circuit, please turn off the driver and can’t connect the LED until the electric energy stored by the output release, or it may damage the LED ;

3.this type of driver is only limited to the use of the LED lamps ,the input voltage range is AC100-250V,the heat insulation cotton and other items that obstruct the heat dissipation of the product, which conforms to the product under the specified output voltage, current range, the use environment temperature is -20-45 degrees, and the surface can not cover the conditions of the environment, this product enjoys 5 years of free warranty.

1.the LED lamp doesn’t bright after the dimming driver is connected at the first time, please turn off the AC input and check as follow:

1)whether or not DC output bad contact;

2)whether DC output polarity is reversed, or the LED board is welded anti;

3)whether AC input is bad contact, test after eliminating these failures;

2.the device has good connection, LED lights, but the LED flicker, please turn off the AC input and check as follow:

1).whether or not the parameters and actual parameters match.

2).please timely communicate with us if you have any questions in the using, we will try our best to solve the problems with you.

Difference between 0-10V and 1-10V:

1.When the 0 / 10V dimmer is adjusted to the maximum 10V, the output current will reach 100% of the power output, and the brightness will reach 100%. When the 0-10V dimmer is adjusted to 0V,the current will be the minimum, and the light will be turned off; When the 1-10V dimming is adjusted to 1V, the current is the minimum

and the light is off.

2.Difference between 0-10V and 1-10V dimming: different starting and closing voltage, 0-10V is on at 0.7V, (the min brightness) 1-10V is on at 1.2V (the min brightness).

3.Digital dimming driver 0-10V and 1-10V dimming automatic identification two dimming modes.

4.The same signal circuit controls light and dark at the same time.

5.Dimmer (dimming system) is divided into 0-10V and 1-10V dimming signals.

6.Dimming compatibility is related to the control distance of signal line and the number of control power supply. If the number is too large or the signal line is too long, problems such as can not adjusted lower and can not adjusted off will occur.
