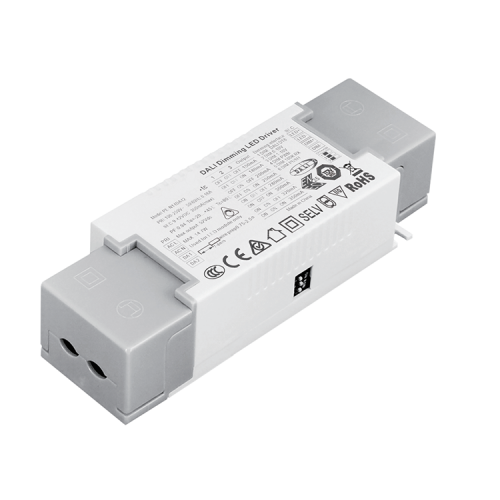

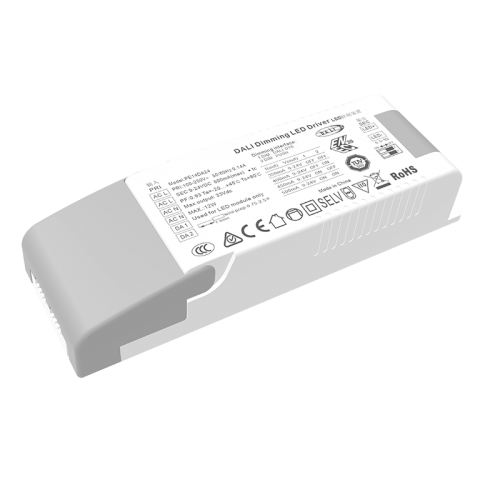

DALI Dimming LED Driver is one of the constant current dimming LED driver developed by my company with high power factor, high efficiency, high precision, the use of the efficient stable low loss switch control chip and the high performance components makes it with low noise, energy saving,environmental protection,long life and other characteristics.
PE-N14DA has DALI/ Push/ 0-10V/1-10V/PWM/R DIM six dimming ways, use the DIP switch to change the dimming function, not interfering with each other, not existing at the same time.
Dimming interface:

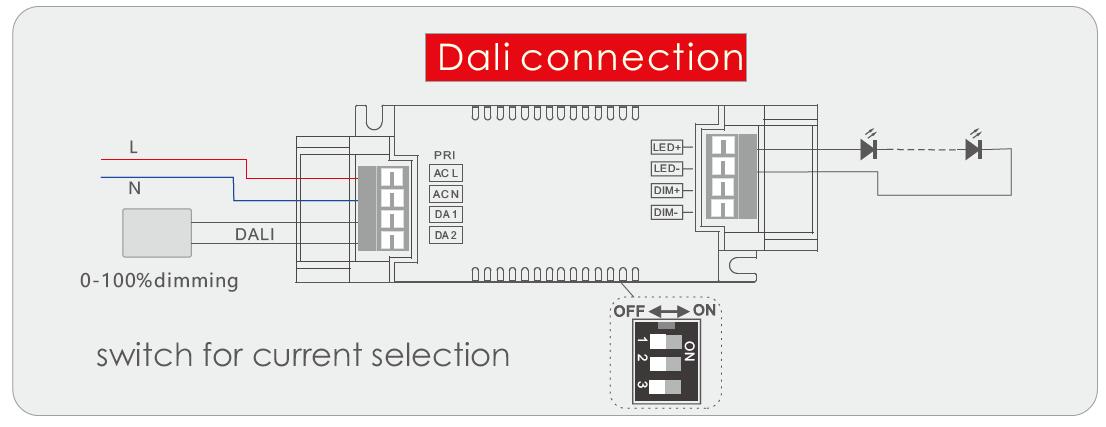

1. DALI dimming, use standard DALI signal interface. Can match with all DALI control system in the marker.

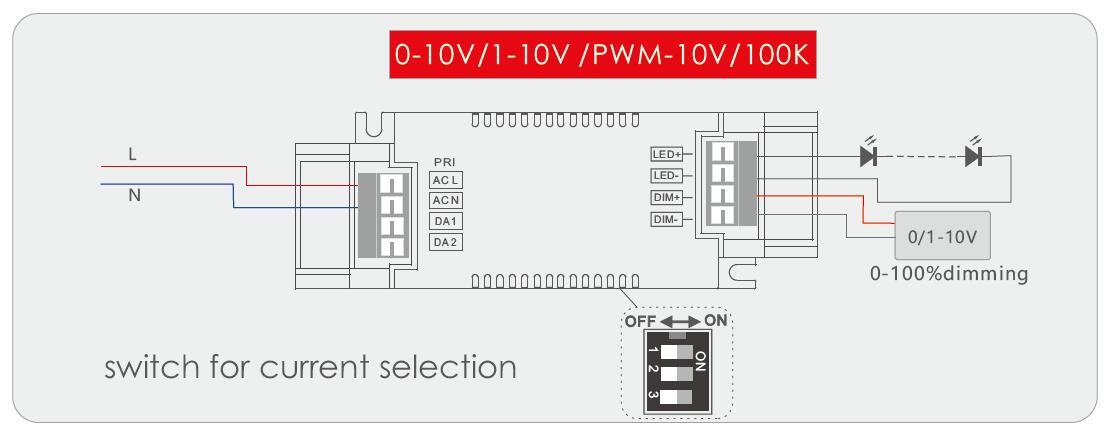

2.0-10V dimming, use the standard 0-10V /100K resistance/10V PWM dimming.
14W Constant Current DALI Dimmable LED Driver Features:
1. Integrated DALI/Push/0-10V/1-10V/PWM/R DIM standard dimming interface
2. With PUSH function to realize PUSH dimming
3. Digital control output, flicker free
4. International general AC input 100-250V range
5. Protection type: short circuit / over current / over voltage
6. Natural cold wind
7. Big terminal locked by screw
8. Economic and convenient installation
9. Conform to the world lighting equipment safety standards
10. Protection class II
11. 5-year warranty
12. TUV CE SAA ENEC certificate
13. Size: 147.5*43*30mm

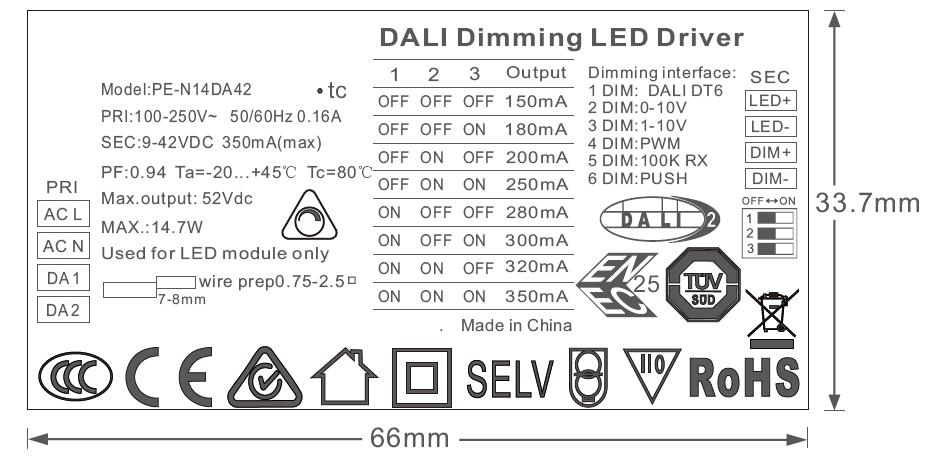

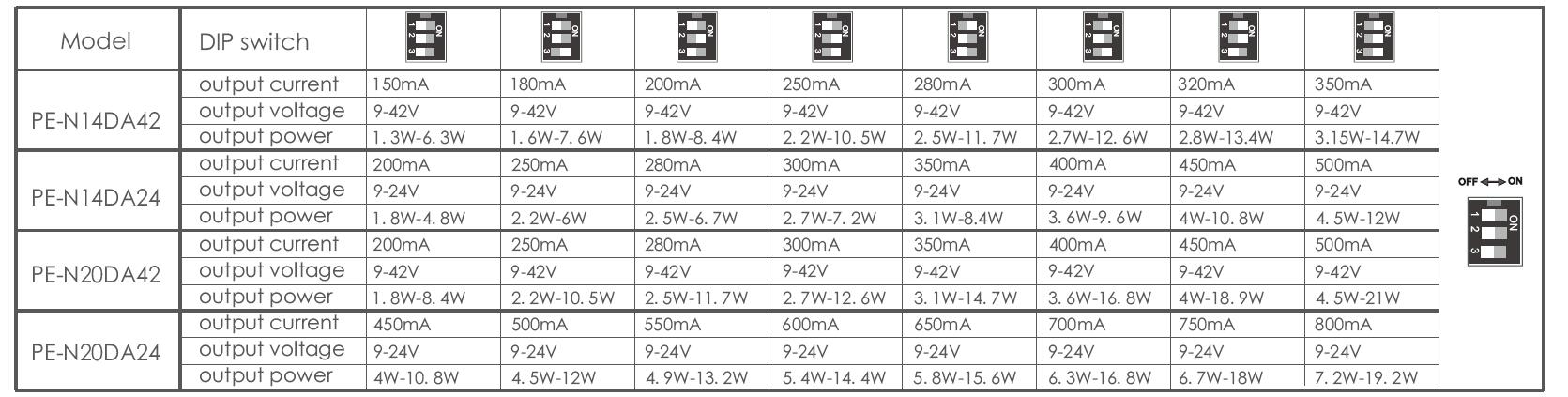

14W Constant Current DALI Dimmable LED Driver Model list:
DALI constant current dimming
Series | Dimming | Model | Input | Power | PF | Output Voltage | Output Current |
PE-N14DA 12-14.7W |
DALI/Push/0-10V/1-10V/ 100K Resistor/PWM | PE-N14DA24 | AC100-250V | 12w | 0.88-0.96PF THD<10% | 9-24V | 200/250/280/300/ 350/400/450/500mA |
PE-N14DA42 | 14.7W | 9-42V | 150/180/200/250/ 280/300/320/350mA | ||||
PE-N20DA 12-20W |
DALI/Push/0-10V/1-10V/ 100K Resistor/PWM | PE-N20DA24 | AC100-250V | 19.2W | 0.88-0.96PF THD<10% | 9-24V | 450/500/550/600/ 650/700/750/800mA |
PE-N20DA42 | 21W | 9-42V | 200/250/280/300/ 350/400/450/500mA | ||||
PE-N30DA 20-30W |
DALI/Push/0-10V/1-10V/ 100K Resistor/PWM | PE-N30DA42 | AC100-250V | 29.4W | 0.88-0.96PF THD<10% | 9-42V | 350/400/450/500/ 550/600/650/700mA |
PE-N45DA 30-45W |
DALI/Push/0-10V/1-10V /100K Resistor/PWM | PE-N45DA42 | AC100-250V | 44.1W | 0.88-0.96PF THD<10% | 9-42V | 700/750/800/850/ 900/950/1000/1050mA |
PE-N60DA 30-60W |
DALI/Push/0-10V/1-10V/ 100K Resistor/PWM | PE-N60DA42 | AC200-250V | 58.8W | 0.88-0.96PF THD<10% | 9-42V | 700/800/900/ 1000/1100/1200/ 1300/1400mA |
14W Constant Current DALI Dimmable LED Driver Application:
DALI (Digital Addressable Lighting Interface) LED drivers are used in various scenarios. Here are some common applications:
1. Commercial building lighting
2. Educational Institutions
3. Healthcare facilities
4. Hospitality industry
5. Retail stores
6. Architectural lighting
7. Outdoor lighting
14W Constant Current DALI Dimmable LED Driver Specification:
Model | PE-N30DA42 | PE-N45DA42 | ||
OUTPUT | Output Voltage | 9-42Vdc | 9-42Vdc | |
Max Output Voltage | 42Vdc | 42Vdc | ||
Non-load Output Voltage | 55Vdc | 55Vdc | ||
Output Current | 550/600/650/700mA | 900/950/1000/1050mA | ||
Output Power | 4.95W~29.4W | 8.1W~44.1W | ||
Strobe Level | No Flicker | |||
Dimming Range | 0~100%,LEDstart at 0.03%possible. | |||
PWM Dimming Frequency | >3600Hz | |||
Current Accuracy | ±3% | |||
Ripple & Noise | ≤2V (No dimming) | |||
INPUT | Dimming Interface | DALI (IEC62386), Push /0-10V/1-10V/PWM/100KR DIM Signal control current < 0.1mA | ||
Input Voltage Range | 100-250Vac | |||
Frequency | 50/60Hz | |||
Input Current | <0.37A | <0.56A | ||
Power Factor | PF>0.95/100Vac, at full load | PF>0.95/100Vac, at full load | ||
THD | 230Vac@THD ≤15% (full load) | |||
Efficiency(tys.) | 88% full load | 88% full load | ||
Inrush Current(typ.) | Cold start 3.7A@230Vac | Cold start 5.6A@230Vac | ||
Anti Surge | L-N: 2kV | |||
Leakage Current | <0.25mA/230Vac | |||
ENVIRONMENT | Working Temperature | ta: 45°C tc: 80°C | ||
Working Humidity | 20 ~ 95%RH, non-condensing | |||
Storage Temp., Humidity | -40 ~ 80°C, 10~95%RH | |||
Temp. Coefficient | ±0.03%/°C(0-50) °C | |||
Vibration | 10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes. | |||
PROTECTION | Over-heat Protection | Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, , auto recovers. | ||
Over Load Protection | Shut down the output when rated power≥102%, auto recovers. | |||
Short Circuit Protection | Shut down automatically if short circuit occurs, auto recovers. | |||
Non-load Protection | output Constant Voltage. | |||
SAFETY & EMC | Withstand Voltage | I/P-O/P: 3750Vac | ||
Isolation Resistance | I/P-O/P: 100MΩ/500VDC/25°C/70%RH | |||
Safety Standards | IEC/EN61347-1, IEC/EN61347-2-13 | |||
EMC Emission | EN55015, EN61000-3-2 Class C, IEC61000-3-3 | |||
EMC Immunity | EN61000-4-2,3,4,5,6,8,11, EN61547 | |||
Strobe Test Standard | IEEE 1789 | |||

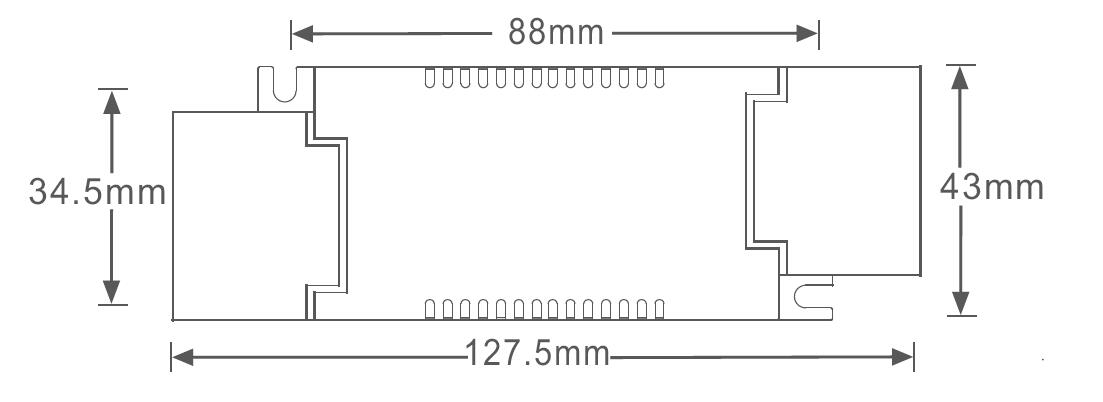

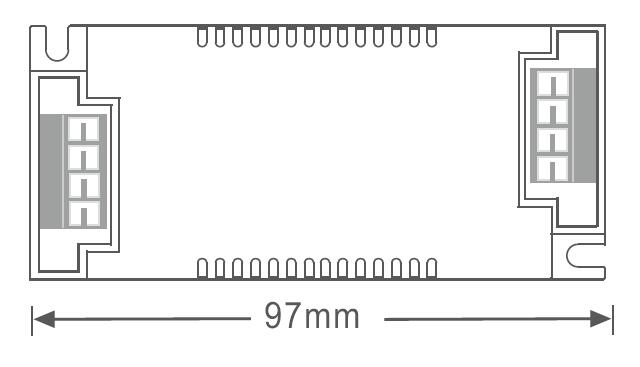

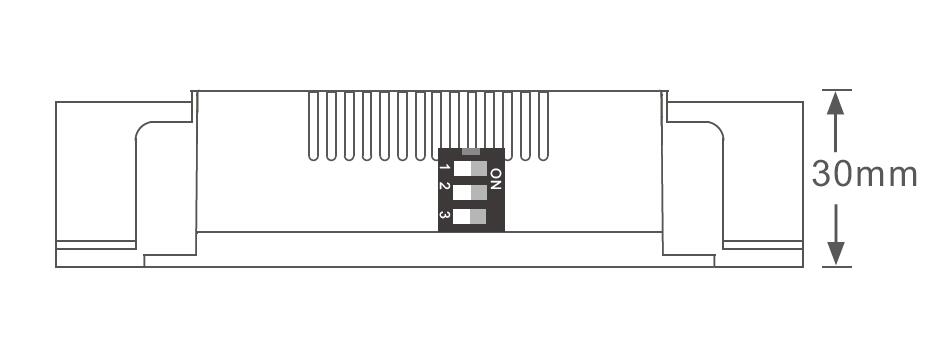

OTHERS | Dimension | 147.5(117)×43×30mm(L×W×H) | ||
Packing | PE bag | |||
Weight(G.W.) | 187g/245g±10g |

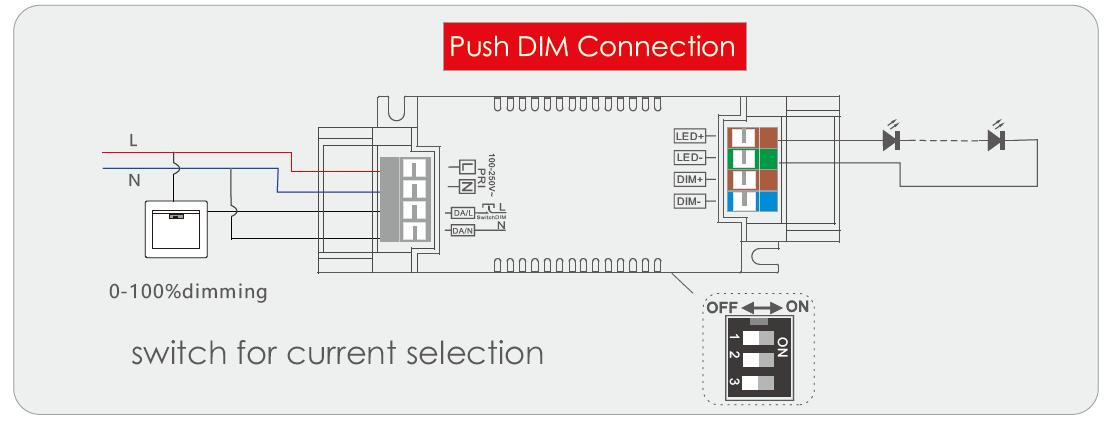

On/off control: Short press.
Stepless dimming: Long press. With every other long press, the light level goes to the opposite direction.
Dimming memory: Brightness will be the same as previously adjusted when turning off and on again.
The abnormal conditions and the corresponding treatment methods:
Digital Addressable lighting Interface (DALI)
DALI slave unit will send data only master unit requests, that is, adopt command answering mode
There are 64 slave units at most in the same DALI network, each unit has a separate address(short address), A salve unit can also be assigned to a certain group, and a slave unit can belong to different group, salve unit can exist up to 16 groups at the same time, each unit can set 16 scenarios.
The main features of the DALI protocol
1)Asynchronous serial communication.
2)1200 baud rate, using the Manchester encoding format.
3)Two lies differential signal.
4)The high level when differential voltage is larger than 9.5V.
5)The low level when differential voltage is less than 6.5V.
6)The master unit controls communication process.
7)One DALI bus can connect with 64 slave units.
8)Each slave unit can be individually addressed.
DALI Electrical Specification
Under the idle state, from machine unit method to control the bus:
1)High Output power at ordinary time, not to interference in the hold signal.
2)Output low electricity at ordinary time, directly to the DALI bus short circuit to each other.
3)DALI bus maximum current of 250mA
4)Not a two-way communication at the same time.
5)Transmission cable up to 300 meters, or pressure drop is no more than 2v
