Item

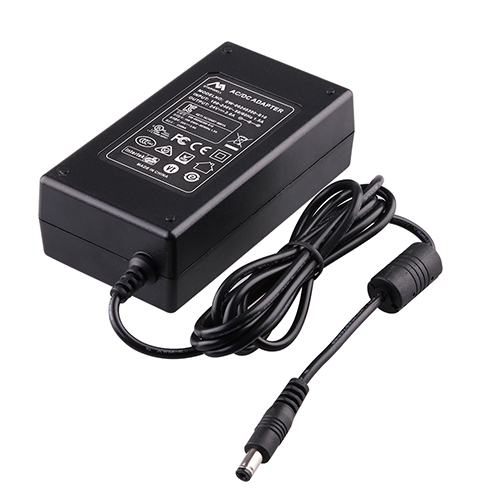

72-84W desktop Power Adapter

Model

SW-00xxxyyy-S10

INPUT

100-240VAC 50/60Hz

Output

SEE MODEL LIST

Features

Ripple & Noise

<120mV

Energy star level

Eup 2.0, Doe VI, CEC VI, CoC VI

Efficiency

>88%

Installing

Available for the system of Safety Class I/II

Environment

Operation Temp

-10 ~ +65℃, 10 ~ 95% RH non-condensing

Storage Temp

-20 ~ +85℃ (Refer to "Derating Curve")

Storage Humidity

20 ~ 90% RH non-condensing

Vibration

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

Cooling Method

by NTC (natural cooling)

Safety&EMC

Safety Standard

UL 62368, ETL 62368, EN 62368, EN 61558, IEC60335, IEC60601

Safety Approvals

UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more
information, please contact us.

EMC Stardard

EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020

EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020

MTBF

5K hrs min. MIL-HDBK-217F (25℃)

Machanicals

DC Connectors

USB-C, 5.5x2.1mm, 5.5x2.5mm, 4.0x1.7mm, 3.5x1.35mm and more available

Dimension

 112.6*60.2*35mm (LxWxH)

Packing

265g; 50pcs/15.0Kg/0.056CBM

72W DESKTOP POWER ADAPTER

POWER

MODEL

INPUT

OUTPUT
VOLT

OUTPUT
CURRENT

Certificates

inlet

72W Series

SW-0009070-S10

100-240VAC

9V

7.0A

UL,CE,FCC, RCM,C-TICK, UKCA

C8, C6, C14 or attached with ac cable

SW-00120600-S10

12V

6.0A

SW-00150300-S10

15V

4.8A

SW-00240200-S10

24V

3.0A

SW-00480150-S10

48V

1.5A

84W DESKTOP POWER ADAPTER

POWER

MODEL

INPUT

OUTPUT
VOLT

OUTPUT
CURRENT

Certificates

inlet

84W Series

SW-00090800-S10

100-240VAC

9V

8.0A

UL,CE,FCC, RCM,C-TICK, UKCA

C8, C6, C14 or attached with ac cable

SW-00120700-S10

12V

7.0A

SW-00150560-S10

15V

5.6A

SW-00240350-S10

24V

3.5A

SW-00480175-S10

48V

1.75A
