desktop power adapter

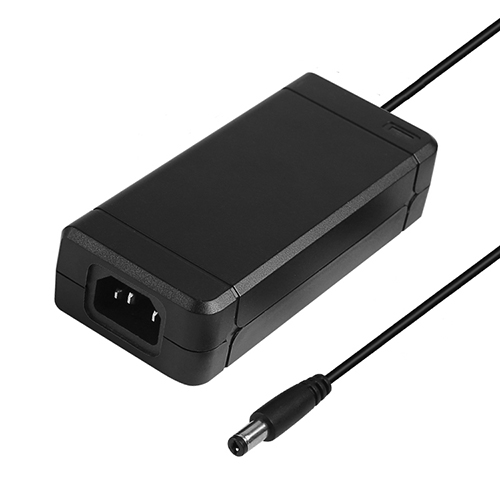

96W desktop power adapter

96W desktop power adapter
input: 100-240VAC
output: see below model list
Inlet: C8 or C6 or C14 or attached with AC cable
Certificates: UL, CCC, FCC, UKCA, CE, ROHS, REACH,RCM, SAA, C-TICK, EAC, S-mark
Color: black or white  optional.
DC jack: 5.5*2.1mm, 4.0*1.7mm, 3.5*1.35mm, USB C etc...
size: 139.5*61.5*34.5mm


    SPECIFICATION:

    Item

    96W desktop Power Adapter

    Model

    SW-00xxxyyy-S11

    INPUT

    100-240VAC 50/60Hz

    Output

    SEE MODEL LIST





    Features

    Ripple & Noise

    <120mV

    Energy star level

    Eup 2.0, Doe VI, CEC VI, CoC VI

    Efficiency

    >88%

    Installing

    Available for the system of Safety Class I/II

    Environment

    Operation Temp

    -10 ~ +65, 10 ~ 95% RH non-condensing

    Storage Temp

    -20 ~ +85 (Refer to "Derating Curve")

    Storage Humidity

    20 ~ 90% RH non-condensing

    Vibration

    10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

    Cooling Method

    by NTC (natural cooling)

    Safety&EMC

    Safety Standard

    UL 62368, ETL 62368, EN 62368, EN 61558, IEC60335, IEC60601

    Safety Approvals

    UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more
    information, please contact us.

    EMC Stardard

    EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020

    EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020

    MTBF

    5K hrs min. MIL-HDBK-217F (25)



    Machanicals

    DC Connectors

    USB-C, 5.5x2.1mm, 5.5x2.5mm, 4.0x1.7mm, 3.5x1.35mm and more available

    Dimension

     139.5*61.5*34.5mm (LxWxH)

    Packing

    300g; 50pcs/18.0Kg/0.056CBM

    MODEL LIST:



    96W DESKTOP POWER ADAPTER

    POWER

    MODEL

    INPUT

    OUTPUT
    VOLT

    OUTPUT
    CURRENT

    Certificates

    inlet

    96W Series

    SW-00120800-S10

    100-240VAC

    12V

    8.0A

    UL,CE,FCC, RCM,C-TICK, UKCA

    C8, C6, C14 or attached with ac cable

    SW-00150640-S10

    15V

    6.4A

    SW-00190474-S10

    19V

    4.74A

    SW-00240400-S10

    24V

    4.0A

    SW-00480200-S10

    48V

    2.0A

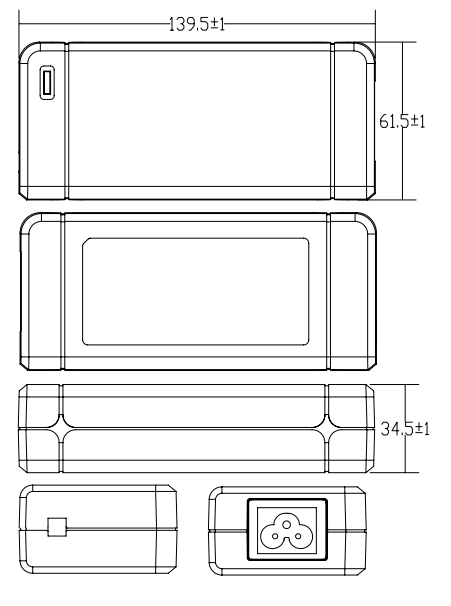

    DRAWING:
