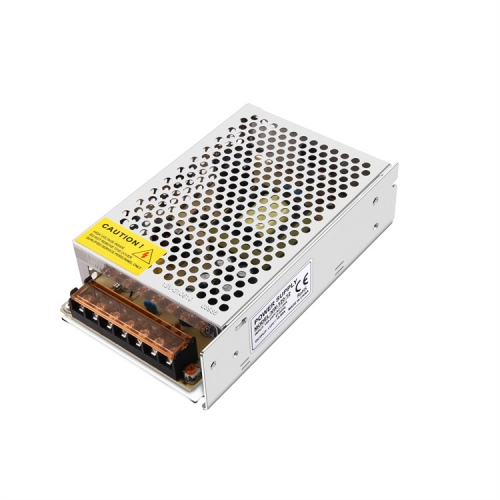

Metal case power supply

120W series switching power supply

Parameter

Input voltage100-264Vac

Output power120W

Output voltage12Vdc/24Vdc

Feature

1. Protection: short-circuit, overload

2. 100% full-load aged

3. Withstand 300VAC surge input for 5 seconds

4. -20+60Working temperature

5. 5G vibration tested

6. High efficiency, long life span, and high reliability

Applications: Industrial automation machineryIndustrial control systemTesting and measuring instrumentsHousehold appliancesLed lighting appliancesAging equipmentIT communication equipment

Warranty: 3 years

Certificate: CE RoHS

    Starwell specializes in the production of 120W switching power supplies and has 11 years of manufacturing experience. With a team of professional engineers, we design circuits and provide customized solutions for your specific needs.

    120W Switch Power supply advantages:

    Robust and Durable: 120W Switch power supply provides excellent protection and durability, making it suitable for various applications in different environments. It can withstand harsh conditions and ensure long-term reliability.



    Efficient Power Conversion: The120W switch power supply efficiently converts the input voltage to the desired output voltage, minimizing power loss and maximizing energy efficiency. This makes it ideal for applications where power efficiency is crucial .



    Wide Input Voltage Range: The 120W switch power supply typically supports a wide input voltage range, allowing it to be used in various regions with different power supply standards. This versatility makes it suitable for global applications .



    Stable Output Voltage: The 120w switch power supply maintains a stable output voltage, even under varying load conditions. This stability ensures consistent and reliable performance for connected devices .



    Overload and Short Circuit Protection: Many switch power supplies come with built-in protection mechanisms such as overload and short circuit protection. These features safeguard the power supply and connected devices from damage in case of unexpected electrical faults .



    Compact and Space-Saving: The 120W metal case power supply is often designed to be compact and space-saving, making it suitable for applications where size constraints are a concern. Its small form factor allows for easy integration into various devices and systems.



    Feature

    1. Protection: short-circuit, overload

    2. 100% full-load aged

    3. Withstand 300VAC surge input for 5 seconds

    4. -20+60Working temperature

    5. 5G vibration tested

    6. High efficiency, long life span, and high reliability

    Applications: Industrial automation machineryIndustrial control systemTesting and measuring instrumentsHousehold appliancesLed lighting appliancesAging equipmentIT communication equipment

    Warranty: 3 years

    Certificate: CE RoHS



    LED POWER SUPPLY SPECIFICATION:

    Model No.

    SW-120-12

    SW-120-24

    Output

    DC Voltage

    12V

    24V

    Current Range

    0~10A

    0~5A

    Power

    120W

    Ripple And Noise

    Max 240mVp-p

    Voltage ADJ.Range

    10~13V

    22~26V

    Voltage Tolerance

    ±5%

    Setup, Rise Time

    1500ms, 30ms / 230VAC

    Input

    Voltage Range

    90~260VAC

    Frequency Range

    50~60Hz

    Efficiency

    >0.85

    PF

    0.6

    Current

    7A/110VAC, 4A/220VAC

    Surge Current

    40A/110VAC, 60A/220VAC

    Leakage Current

    Max 3.5mA/240VAC

    Protection

    Overload

    Above 110%-150% of rated power

    Shut-down output voltage, auto recovery after fault condition is removed

    Overvoltage

    Above Max. Voltage (105% of rated voltage)

    Shut-down output voltage, auto recovery after fault condition is removed

    Over temperature

    90 ± 5(5~12V)  80 ± 5(24V)

    Shut-down output voltage, auto recovery after fault condition is removed

    Environment

    Working Temp. & humidity

    "-20°C~+60°C,  20%~90%RH

    Storage Temp. & humidity

    "-40°C~+85°C,  10%~95%RH

    Safety

    Withstand Voltage

    I/P-O/P: 1.5KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min;

    Safety

    GB4943 ;IEC60950-1; EN60950-1

    EMC

    EN55032:2015/AC:2016; EN61000-3-2:2014; EN61000-3-3:2013; EN55024:2010+A1:2015

    LVD

    EN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

    Other

    Cooling

    free air

    Lifespan

    20000hrs

    Dimensions (L*W*H)

    199*98*42mm

    Weight

    0.48kg

    Note

    1. The above mentioned data were measured at 230VAC input and 25°C.
    2. Dis-connect the AC input before checking any mal-phenomenons.
    3. Make sure the INPUT&OUPUT were in right situation before connected to power supply.
    4. Datasheet for reference only. We suggest you take sampling before mass orders.
