TUYA dimmable led driver

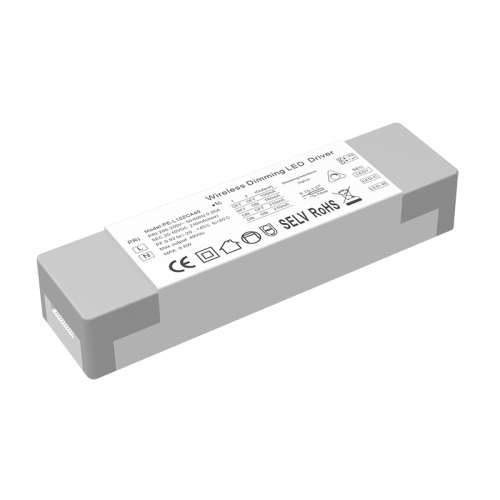

10W TUYA ZIGBEE Dimmable Led Driver

█  Features:

● Controlled by Tuya mobile app

● Built in Tuya ZigBee (Tuya Bluetooth) wireless control module

● Mixing is used to control deep dimming without stroboscopic

● AC input range: 100-250VAC

● Natural air cooling

● Multiple protection functions

● Ultra small volume design

● Crimping design, convenient installation

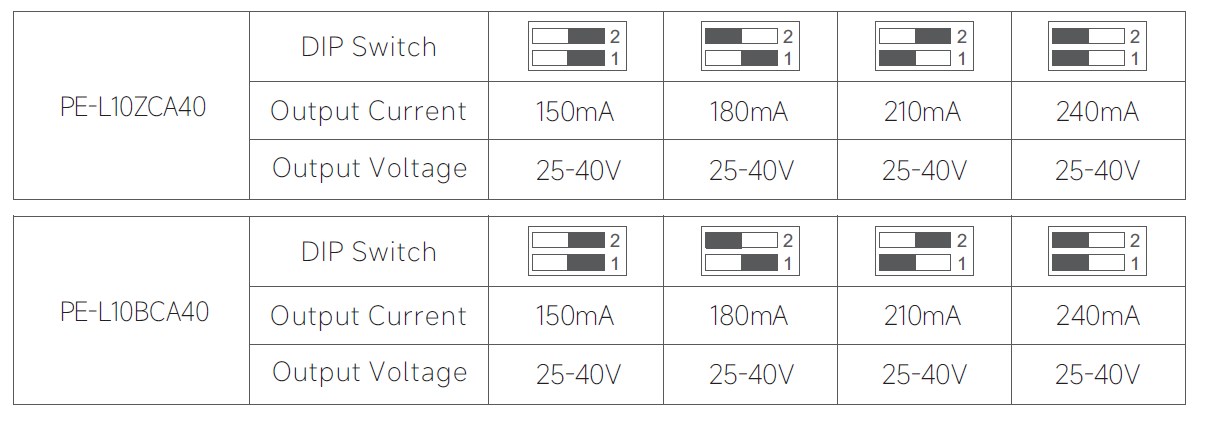

● 4 gears current selection

● size: 116*30*21mm(LxWxH)



    STARWELL is one of professional China 10W TUYA Zigbee CCT Dimmable LED Driverr manufacturers and suppliers, if you are looking for the best 10W TUYA Zigbee CCT Dimmable LED Driver with low price, consult us now!

    The raw materials used of PE-L10ZCA are first-line brands, imported chip ultra deep dimming design, and the internal silicone heat conduction process is adopted to make the heat dissipation balance of electronic components more stable.


    10W TUYA Zigbee CCT Dimmable LED Driver Features:

    . Controlled by Tuya mobile app

    .Built in Tuya Zigbee (Tuya Bluetooth) wireless control module

    . Mixing is used to control deep dimming without stroboscopic

    . AC input 200-250V range

    . Natural air cooling,moisture-proof,heat conduction,silica gel heat dissipation progress

    . Multiple protection functions

    . Ultra small volume design

    . 5 year warranty

    . The design of crimping cover is convenient and fast

    . 4 gear current selection

    10W TUYA Zigbee CCT Dimmable LED Driver Model list:

    PE-L12ZCA
    3-11.2W flicker free

    TUYA Zigbee

    PE-L12ZCA4028 AC200-250V 11.2W 0.88-0.96PF THD<10% 25-40V 200/230/250/280mA
    PE-L12ZCA4018 AC200-250V 7.2W 0.88-0.96PF THD<10% 25-40V 100/130/150/180mA
    PE-L20ZCA
    12-20W flicker free

    TUYA Zigbee

    PE-L20ZCA4050 AC200-250V 20W 0.88-0.96PF THD<10% 25-40V 350/400/450/500mA
    PE-L20ZCA4040 16W 250/300/350/400mA
    PE-L30ZCA 20-30W
    flicker free

    TUYA Zigbee

    PE-L30ZCA4235 AC200-250V 29.4W 0.88-0.96PF THD<10% 25-42V 550/600/650/700mA
    PE-L40ZCA 30-40W
    flicker free

    TUYA Zigbee

    PE-L40ZCA42100 AC200-250V 42W 0.88-0.96PF THD<10% 25-42V 850/900/950/1000mA
    PE-L40ZCA4290 AC200-250V 37.8W 0.88-0.96PF THD<10% 25-42V 750/800/850/900mA

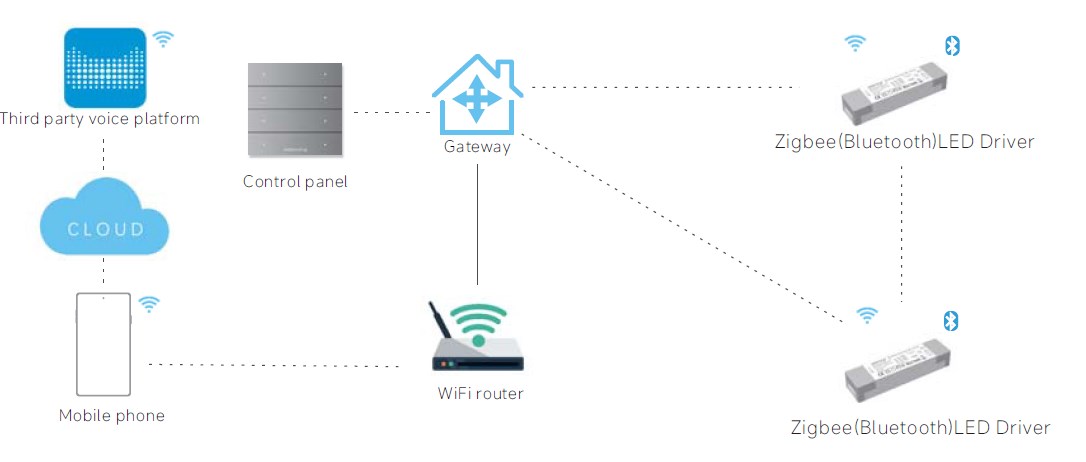

    10W TUYA Zigbee CCT Dimmable LED Driver Application:

    1. Led two-color light source

    2. Villa intelligent lighting

    3. Access to third-party language control platform

    4. High end commercial lighting

    10W TUYA Zigbee CCT Dimmable LED Driver Specification:

    Model PE-L10ZCA40
    OUTPUT Output Voltage 25-40Vdc
    Max Output Voltage 40Vdc
    Non-load Output Voltage 51Vdc
    Output Current 150/180/210/240mA
    Output Power 3.75W~9.6W
    Strobe Level No Flicker
    Dimming Range 0.4~100%,LED start at 0.4% possible.
    PWM Dimming Frequency >3600Hz
    Current Accuracy ±5%
    Power down mode Memory function when power down
    INPUT Dimming Interface TUYA Zigbee
    Input Voltage Range 200-250Vac
    Frequency 50/60Hz
    Input Current <0.52A ac230v
    Power Factor PF>0.95/230V ac(at full load)
    THD 230Vac@THD <10% (at full load)
    Efficiency(typ.) 83%
    Inrush Current(typ.) cold start 18A@230Vac
    Anti Surge L-N: 1.5kV
    Leakage Current <0.25mA/230Vac
    ENVIRONMENT Working Temperature ta: 45°C tc: 85 °C
    Working Humidity 20 ~ 95%RH, non-condensing
    Storage Temp., Humidity -40 ~ 80°C, 10~95%RH
    Temp.Coefficient ±0.03%/°C(0-50)°C
    Vibration 10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.
    PROTECTION Over-heat Protection Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, , auto recovers.
    Over Load Protection Shut down the output when rated power≥102%, auto recovers.
    Short Circuit Protection Shut down automatically if short circuit occurs, auto recovers.
    Non-load Protection output Constant Voltage.
    SAFETY
    & EMC
    Withstand Voltage I/P-O/P: 3750Vac
    Isolation Resistance I/P-O/P: 100MΩ/500VDC/25°C/70%RH
    Safety Standards IEC/EN61347-1, IEC/EN61347-2-13
    EMC Emission EN55015, EN61000-3-2 Class C, IEC61000-3-3
    EMC Immunity EN61000-4-2,3,4,5,6,8,11, EN61547
    Strobe Test Standard IEEE 1789
    OTHERS Dimension 116*30*21mm(L×W×H)
    Packing PE bag
    Weight(G.W.) 70g±10g

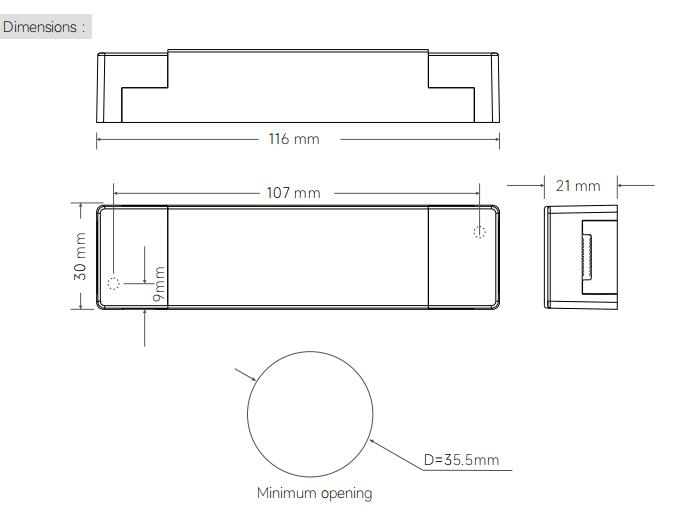

    Dimension:
