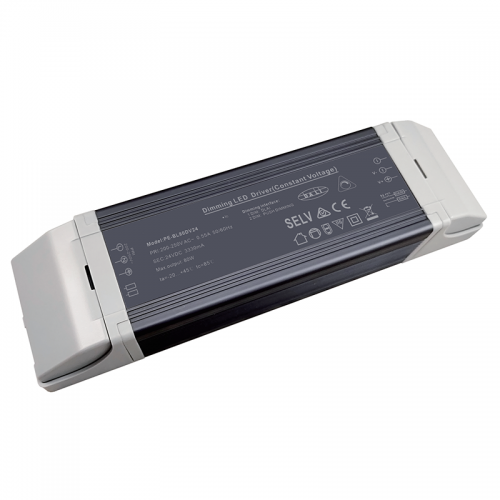

Constant Voltage DALI dimmable driver

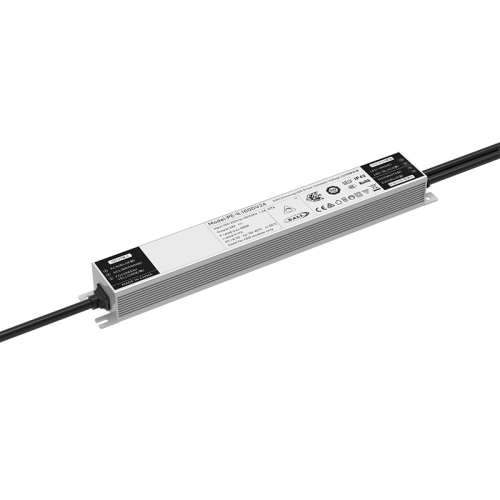

100W Constant Voltage DALI Dimmable LED Driver

100W Constant Voltage DALI Dimmable LED Driver Features:

1. Dali standard interface complies with Dali 144 standards

2. Dali2 certification, Dali member

3. Digital control output is adopted, and there is no flicker

4. International general AC input 100-250V range

5. Natural air cooling, moisture-proof, heat conduction, silica gel heat dissipation process

6. Self developed depth dimming curve

7. Multiple protection functions

8. Special aluminum welding process, ultra small volume design

9. Comply with ERP standard, and the standby power consumption is less than 0.5W

10. Size: 255 (279) *37*27mm

     Find a huge selection of 100W Constant Voltage DALI Dimmable LED Driver from China at STARWELL.

    PE-IL100DV adopts special aluminum shell welding process, aluminum shell and internal heat conduction silica gel heat dissipation, more stable use, all raw materials are first-line brands, and imported chips exceed. The deep dimming design matches the intelligent dimming system of various brands in the market. Anti surge voltage 2KV, smooth dimming, no stroboscopic, low noise in dimming process.

    100W Constant Voltage DALI Dimmable LED Driver Model list:

    12v/24v constant voltage DALI led driver

    Series Dimming Model Input Power PF Output Voltage Output Current
    PE-IL60DV
    60W
    DALI PE-IL60DV24 AC100V-250V 60W 0.96PF THD<10% 24V 2.5A
    PE-IL60DV12 12V 5A
    PE-IL100DV
    100W
    DALI PE-IL100DV24 AC100V-250V 100W 0.96PF THD<10% 24V 4.17A
    PE-IL100DV12 12V 8.3A
    PE-IL150DV
    150W
    DALI PE-IL150DV24 AC100V-250V 150W 0.96PF THD<10% 24V 6.25A
    PE-IL150DV12 12V 10A

    100W Constant Voltage DALI Dimmable LED Driver Application:

    1.Led light strip

    2.Villa intelligent lighting

    3.It can be connected to DALI intelligent lighting system

    4.Museum lighting

    100W Constant Voltage DALI Dimmable LED Driver Specification:

    Model PE-IL100DV24 PE-IL100DV12
    OUTPUT Output Voltage 24Vdc 12Vdc
    Max Output Voltage 4.2A 8.3A
    No load output voltage 24Vdc 12Vdc
    Load power range 0-4.2A 0-8.3A
    Output Power 0-100W 0-100W
    Strobe Level No Flicker
    Dimming Range 0~100%,LEDstart at 0.03%possible.
    PWM Dimming Frequency >3600Hz
    Current Accuracy ±3%
    Power down mode memory function when power down
    INPUT Dimming Interface DALI (IEC62386)Signal control current < 2mA
    Input Voltage Range 100-250Vac
    Frequency 50/60Hz
    Input Current <1.2A ac100v
    Power Factor PF>0.99/100V ac(at full load)
    THD 230Vac@THD <10% (at full load)
    Efficiency(typ.) 91% 88%
    Standby Power 0.4W
    Inrush Current(typ.) cold start4.5A@230Vac
    Anti Surge L-N: 2kV
    Leakage Current <0.25mA/230Vac
    ENVIRONMENT Working Temperature ta: 45°C tc: 80 °C
    Working Humidity 20 ~ 95%RH, non-condensing
    Storage Temp., Humidity -40 ~ 80°C, 10~95%RH
    Temp.Coefficient ±0.03%/°C(0-50)°C
    Vibration 10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.
    PROTECTION Over-heat Protection Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, , auto recovers.
    Over Load Protection Shut down the output when rated power≥102%, auto recovers.
    Short Circuit Protection Shut down automatically if short circuit occurs, auto recovers.
    Non-load Protection output Constant Voltage.
    SAFETY
    & EMC
    Withstand Voltage I/P-O/P: 3750Vac
    Isolation Resistance I/P-O/P: 100MΩ/500VDC/25°C/70%RH
    Safety Standards IEC/EN61347-1, IEC/EN61347-2-13
    EMC Emission EN55015, EN61000-3-2 Class C, IEC61000-3-3
    EMC Immunity EN61000-4-2,3,4,5,6,8,11, EN61547
    Strobe Test Standard IEEE 1789
    OTHERS Dimension 280×37×27mm(L×W×H)
    Packing 285×47×33mm(L×W×H)
    Weight(G.W.) 560g±10g

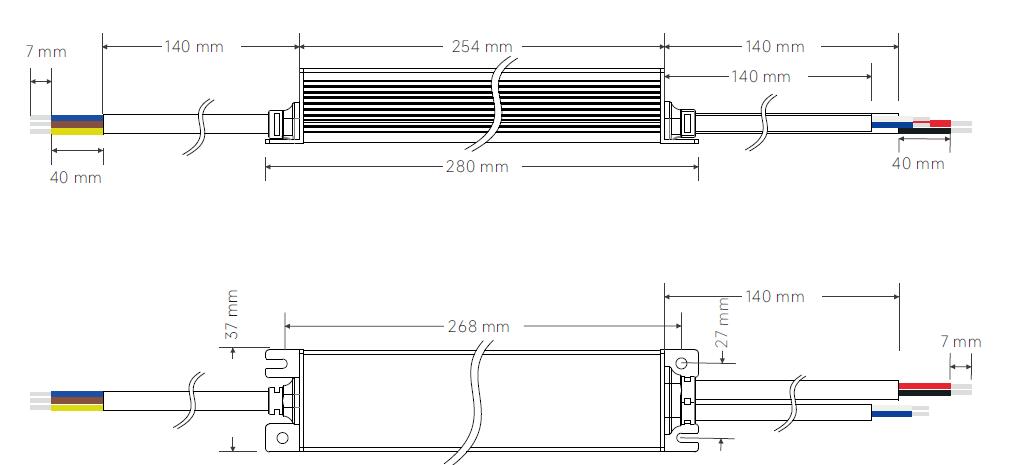

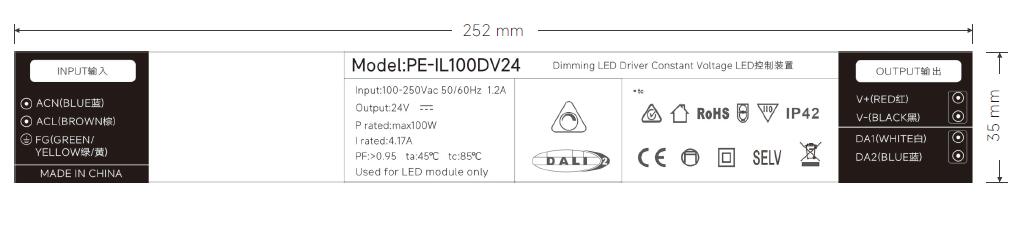

    Dimension:



    The abnormal conditions and the corresponding treatment methods:

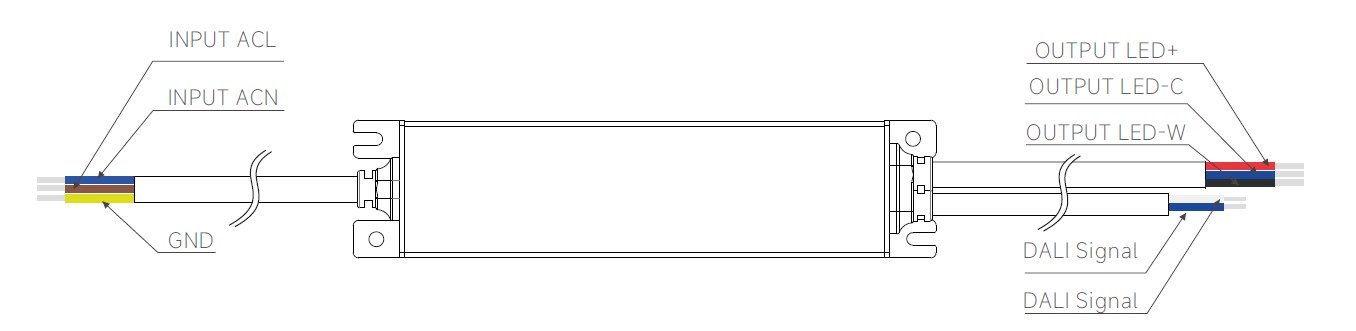

    Digital Addressable lighting Interface (DALI)

    DALI slave unit will send data only master unit requests, that is, adopt command answering mode

    There are 64 slave units at most in the same DALI network, each unit has a separate address(short address), A salve unit can also be assigned to a certain group, and a slave unit can belong to different group, salve unit can exist up to 16 groups at the same time, each unit can set 16 scenarios.

    The main features of the DALI protocol

    1)Asynchronous serial communication.

    2)1200 baud rate, using the Manchester encoding format.

    3)Two lies differential signal.

    4)The high level when differential voltage is larger than 9.5V.

    5)The low level when differential voltage is less than 6.5V.

    6)The master unit controls communication process.

    7)One DALI bus can connect with 64 slave units.

    8)Each slave unit can be individually addressed.

    DALI Electrical Specification

    Under the idle state, from machine unit method to control the bus:

    1)High Output power at ordinary time, not to interference in the hold signal.

    2)Output low electricity at ordinary time, directly to the DALI bus short circuit to each other.

    3)DALI bus maximum current of 250mA

    4)Not a two-way communication at the same time.

    5)Transmission cable up to 300 meters, or pressure drop is no more than 2v
