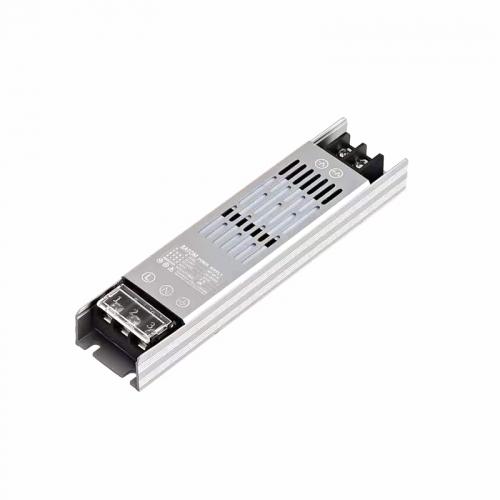

Thin type led power supply

60W led power supply

Features

 Semi-gable

 Aluminium Casing

 Ultra-low start up temp.-30℃)

 Ultra-light and easy to install

 High efficiency up to 90%

 High reliability

 Wide input Voltage 180 ~ 264Vac

 Size: L110 ×W36 ×H21mm

    Starwell is a professional factory specializing in the production of 60W thin type LED power supply.Starwell factory is known for its commitment to producing high-quality LED power supply. They adhere to strict quality control measures throughout the manufacturing process to ensure that each product meets the highest standards of performance and reliability.

    The 60W thin type LED power supply offers several advantages for LED lighting applications. Here are some of its key advantages:

    Space-saving design: The thin type LED power supply is designed to be compact and slim, allowing for easy installation in tight spaces or applications where space is limited. This makes it ideal for use in various lighting fixtures and installations .



    High efficiency: The 60W thin type LED power supply is designed to operate with high efficiency, ensuring that a significant amount of power is converted into usable light. This not only helps to reduce energy consumption but also minimizes heat generation, leading to improved overall performance and longevity of the LED lights .



    Reliable and stable performance: The thin type LED power supply is built with high-quality components and advanced circuitry, ensuring reliable and stable performance. It provides a constant and regulated power output, which is essential for the proper functioning of LED lights and preventing any potential damage to the LEDs .



    Wide input voltage range: The 60W thin type LED power supply is designed to accept a wide range of input voltages, typically ranging from 100V to 240V AC. This versatility allows for compatibility with different electrical systems and ensures that the power supply can be used in various regions or countries .



    Overload and short circuit protection: The thin type LED power supply is equipped with built-in protection mechanisms, such as overload and short circuit protection. These features help to safeguard the power supply and the connected LED lights from any potential damage caused by excessive current or electrical faults .



    Long lifespan: Due to its efficient design and reliable performance, the 60W thin type LED power supply has a long lifespan. It is built to withstand continuous operation and can provide consistent power output for extended periods, contributing to the longevity of the LED lights.



    Features
    Features

     Semi-gable

     Aluminium Casing

     Ultra-low start up temp.-30℃)

     Ultra-light and easy to install

     High efficiency up to 90%

     High reliability

     Wide input Voltage 180 ~ 264Vac

     Size: L145 ×W53 ×H21mm



    Ultra Thin LED power supply specification:


    ITEM 项目

    FUNCTION 特性参数

    KHT-60W12V

    KHT-60W24V

    Output

    Characteristics

    输出特性

    DC Output Voltage 输出电压



    24V

    Output Current 输出电流



    2.5A  max

    Rated Power 额定功率



    60W

    Ripple & Noise 纹波和噪声



    l  小于200mVp-p

    Output Voltage range输出电压范围



    22.825.2V

    Output Voltage Tolerance 电压精度

    ±3%

    Line Regulation 电源调整率

    1%

    Load Regulation 负载调整率

    2%

    Setup and Rise Time   开机及爬升时间

    1.5S20mS@230Vac

    Input Characteristics

    输入特性

    Typical Input Voltage 典型输入电压

    200240Vac  50Hz



    Maximum Input Voltage Range

    最大输入电压范围

    180264Vac  50Hz

    Typical Efficiency 典型效率



    85%

    Maximum Input Current  最大输入电流

    Max 3.5A @ 230Vac;

    Inrush Current 浪涌电流

    Less than 50A/230Vac, cold start

    冷启动,小于50A

    Leakage Current 漏电流

    <0.75mA/240Vac

    Protection Characteristics

    保护特性

    Overload Protection过载保护

    110%150% of rated load.

    过载保护范围为额定输出功率的110150%

    Short Circuit Protection短路保护

    Protection Type : Hiccup mode, Auto-recovery

    保护模式:打嗝模式,异常条件移除后自动恢复

    Signal

    指示信号

    DC OK Signal输出指示

    LED light to indicate PSU turn on

    LED 亮灯指示电源输出正常





    Ambient

    环境

    Ambient Temperature

    工作环境温度

    -3060℃ (Reference To Derating Curve

    -3060℃ (参考降额曲线)

    Working Humidity工作湿度

    2090% RH non-condensing 无冷凝

    Storage Temp. and Humidity存储温湿度

    -3070,1095% RH  无冷凝

    Withstand Vibration耐振动参数

    10500Hz,5G 10min./cycle,60min.each along X,Y,Z axis  10500Hz,5G 10分钟/周期,XYZ60分钟

    Safety

    安全

    Withstand Voltage耐压测试

    Input-FG:1500Vac

    Input-Output: 1500Vac

    Output-FG: 500Vac

    Isolation Resistance绝缘测试

    Input-FG: > 100M Ohm  500Vdc @ 25& 70RH

    Input-Output: > 100M Ohm  500Vdc @ 25& 70RH

    Output-FG: > 100M Ohm  500Vdc @ 25& 70RH

    Packing

    包装

    Unit Weight电源单重

    0.171Kg/PCS

    Unit Dimension电源尺寸

    L110 ×W36 ×H21mm

    Packing And Weight包装及重量

    56PCS/BOX

    Packing Box Dimension

    L 340 ×W 190 ×H 167mm
