Standard 0-10v/1-10V signals are used to control brightness and color temperature, and third-party voice control and can be realized through mobile app.The raw materials used are first-line brands, imported chip, matching a variety of 0-10V dimming and CCT drivers on the market.Custom 0-10v/ 1-10v on and off voltage value to control the color temperature and brightness.The color temperature can be set according tothe range of LED.The built-in active power supply to control more drivers

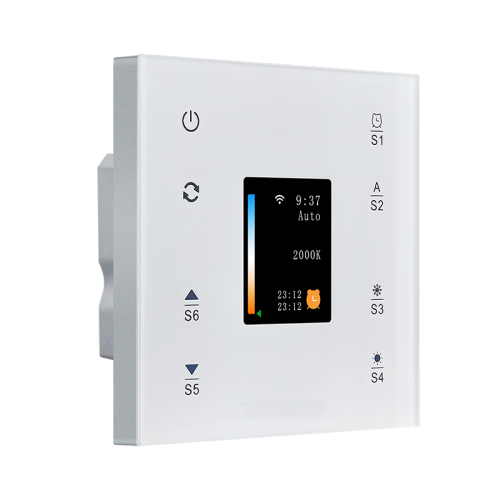

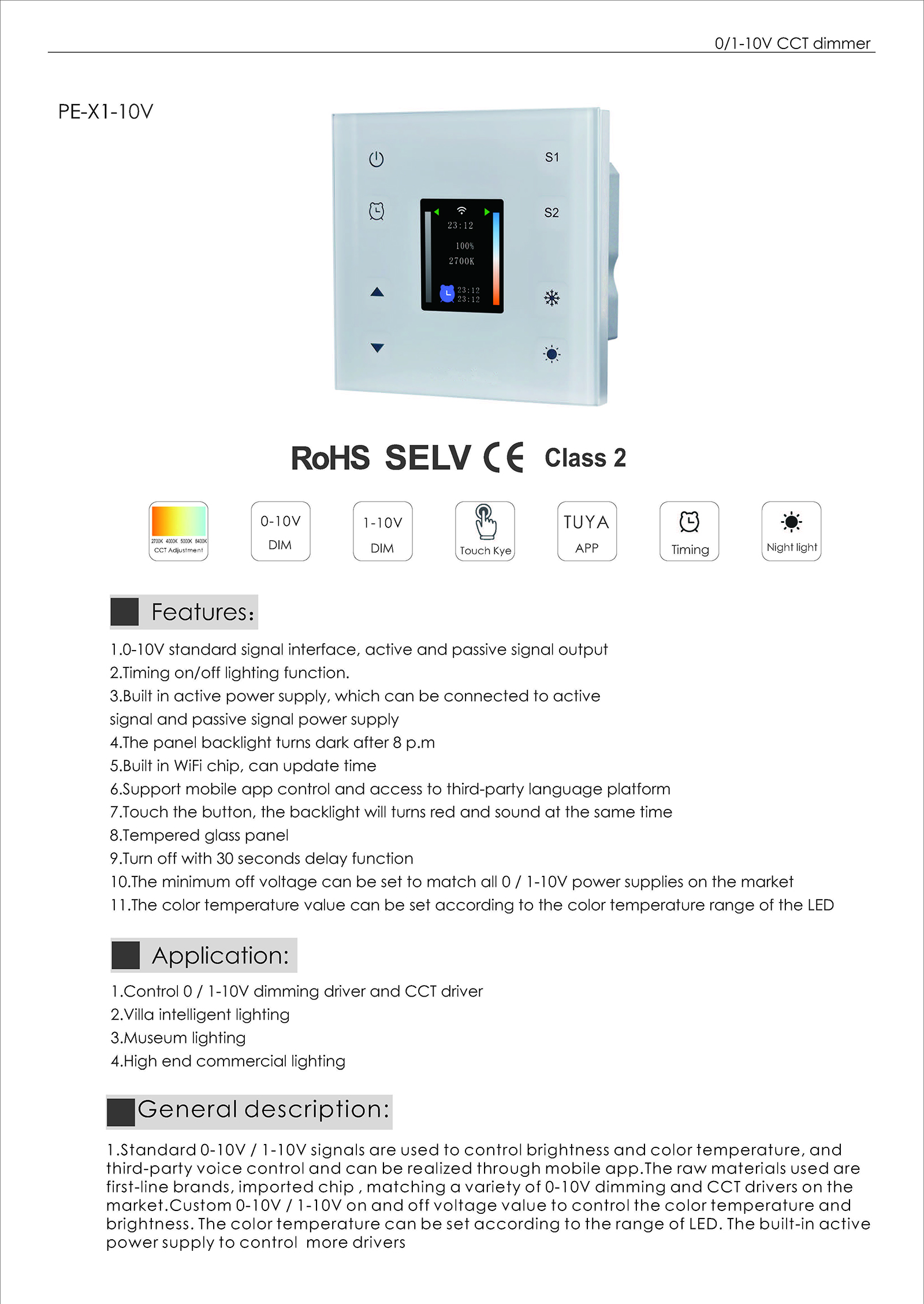

█ Features:
1.0-10V standard signal interface, active and passive signal output
2.Timing on/off lighting function.
3.Built in active power supply, which can be connected to active
signal and passive signal power supply
4.The panel backlight turns dark after 8 p.m
5.Built in WiFi chip, can update time
6.Support mobile app control and access to third-party language platform
7.Touch the button, the backlight will turns red and sound at the same time
8.Tempered glass panel
9.Turn off with 30 seconds delay function
10.The minimum off voltage can be set to match all 0 / 1-10V power supplies on the market
11.The color temperature value can be set according to the color temperature range of the LED
Application:
1.Control 0 /1-10v dimming driver and CCT driver
2.Villa intelligent lighting
3.Museum lighting
4.High end commercial lighting

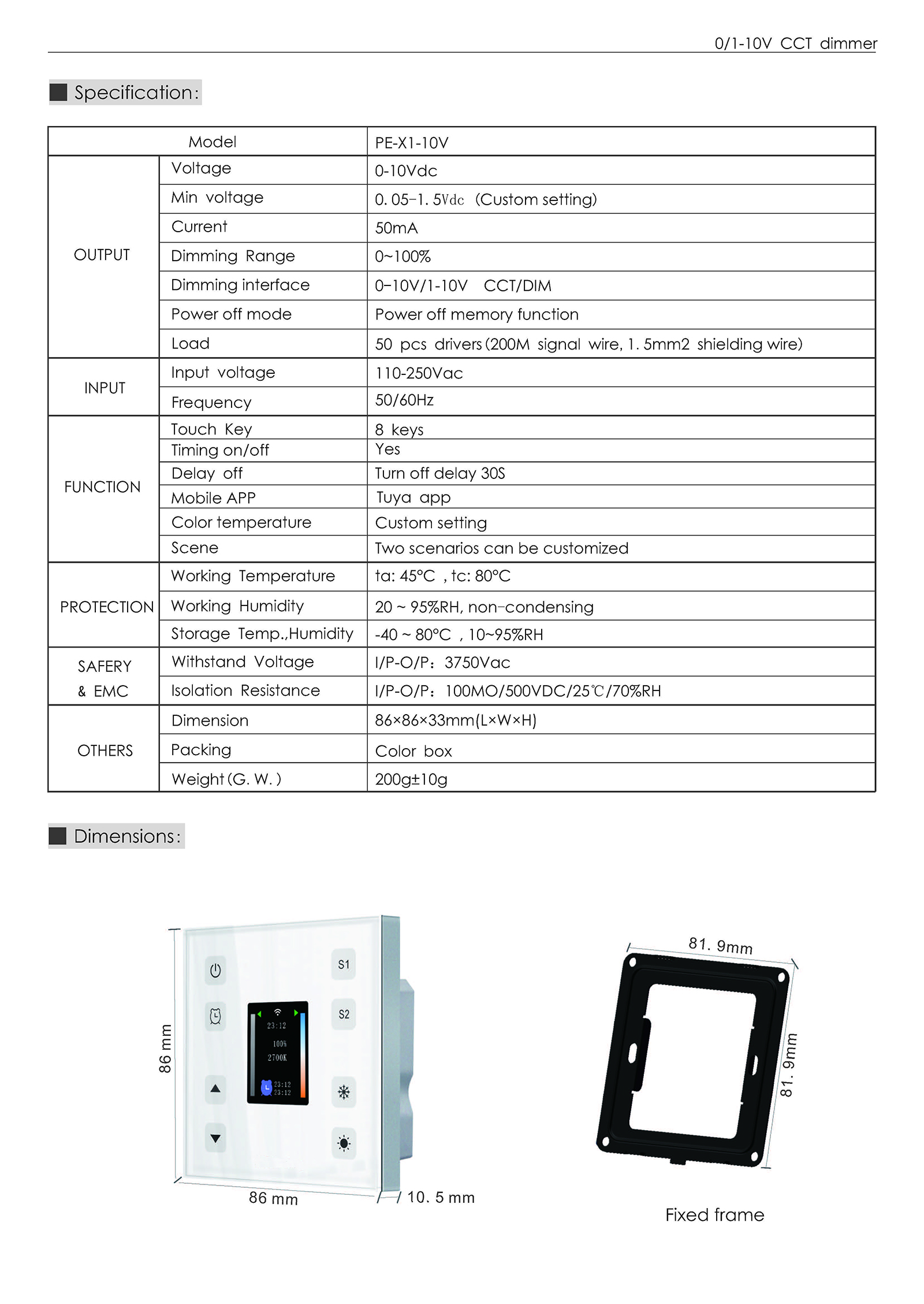

Specification:
| Model | PE-X1-10V | |||||||||||||
| OUTPUT | Voltage | 0-10Vdc | ||||||||||||
| Min voltage | 0.05-1.5Vdc(Custom setting) | |||||||||||||
| Current | 50mA | |||||||||||||
| OUTPUT Dimming Range | 0~100% | |||||||||||||
| Dimming interface | 0-10V/1-10VCCT/DIM | |||||||||||||
| Power off mode | Power off memory function | |||||||||||||

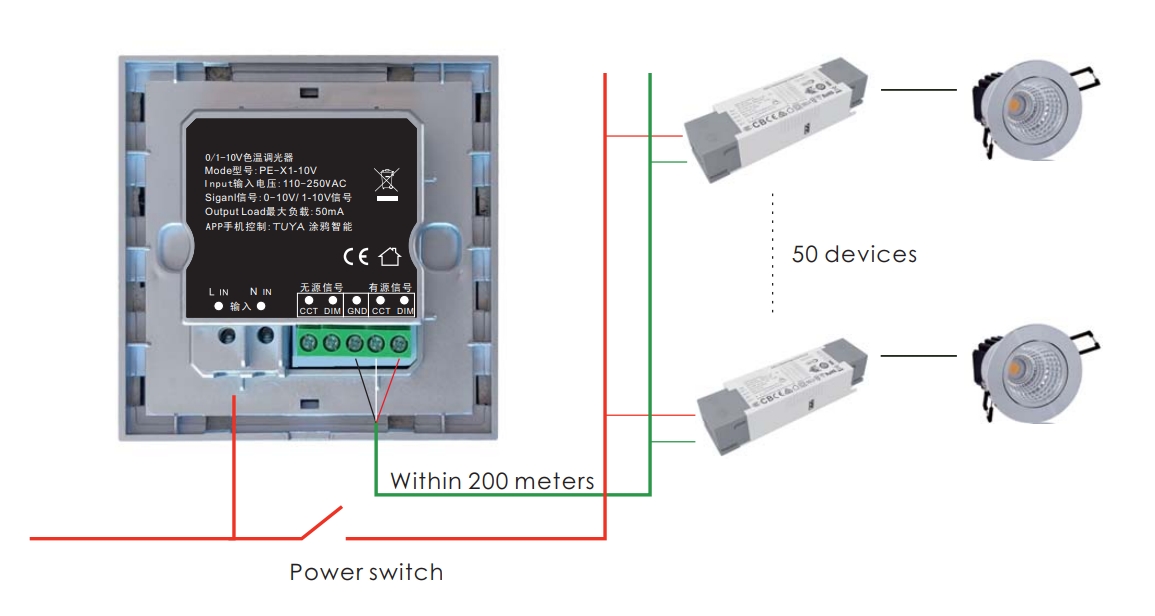

| Load | 50 pcs drivers(200M signal wire, 1. 5mm2 shielding wire) | |||||||||||||
| INPUT | Input voltage | 110-250Vac | ||||||||||||
| Frequency | 50/60Hz | |||||||||||||
| FUNCTION | Touch Key | 8 keys | ||||||||||||
| Timing on/off | Yes | |||||||||||||
| Delay Off | Turn off delay | |||||||||||||
| Mobile App | Tuya APP | |||||||||||||
| Color temperature | Custom setting | |||||||||||||
| Scene | Two scenarios can be customized | |||||||||||||
| PROTECTION | Working Temperature | ta:45°C,tc:80°C | ||||||||||||
| Working Humidity | 20~95%RH,non-condensing | |||||||||||||
| Storage Temp.,Humidity | 40~80°C,10~95%RH | |||||||||||||
| SAFETY&EMC | Withstand Voltage | I/P-O/P:3750Vac | ||||||||||||
| EMC Isolation Resistance | I/P-O/P:100MO/500VDC/25°C/70%RH | |||||||||||||

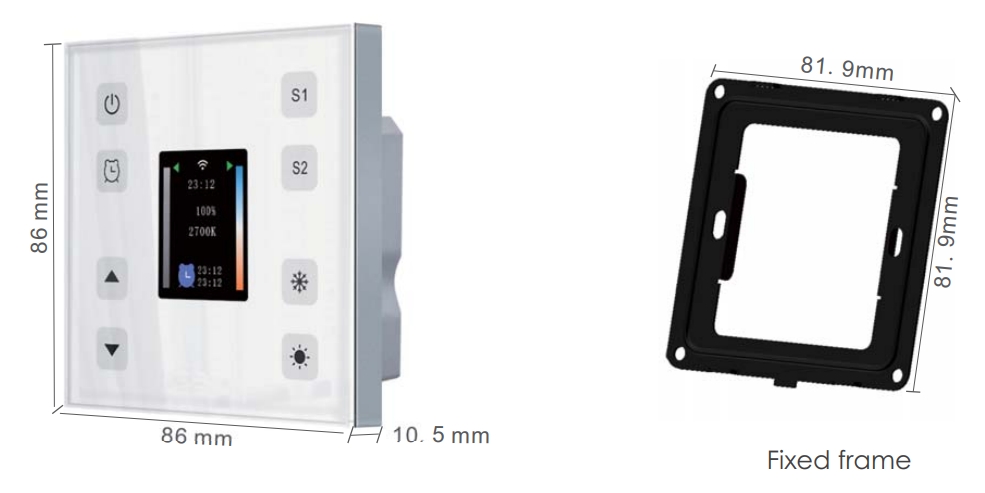

| OTHERS | Dimension | 86x86x33mm(LxWxH) | ||||||||||||
| Packing | Color box | |||||||||||||
| Weight | 200g±10g | |||||||||||||
Note:1-10V driver or 0/1-10V driver(The light will come on without a signal) use passiveinterface, 0-10v driver(need a signal to turn on the light)Use active interfaces.

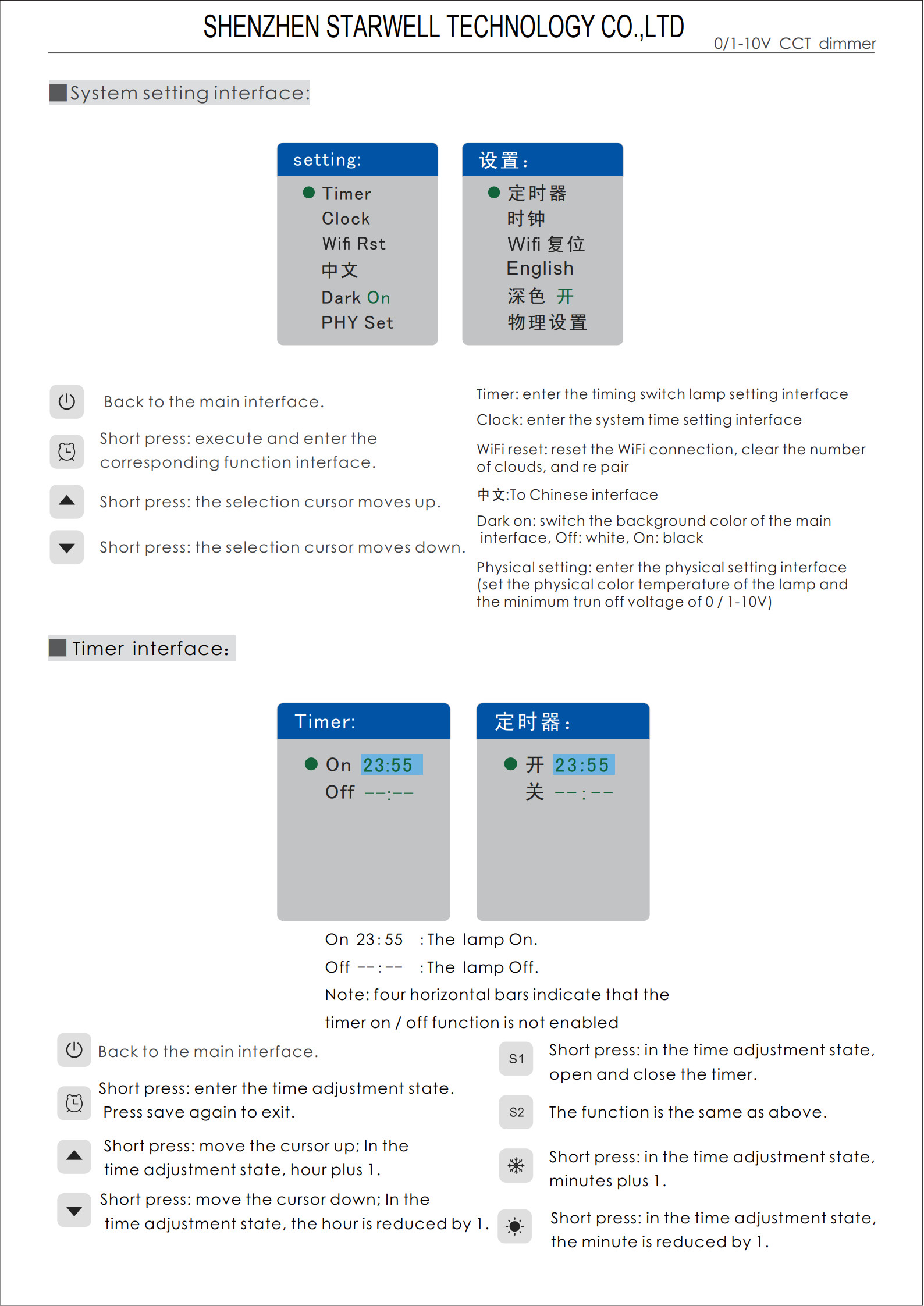

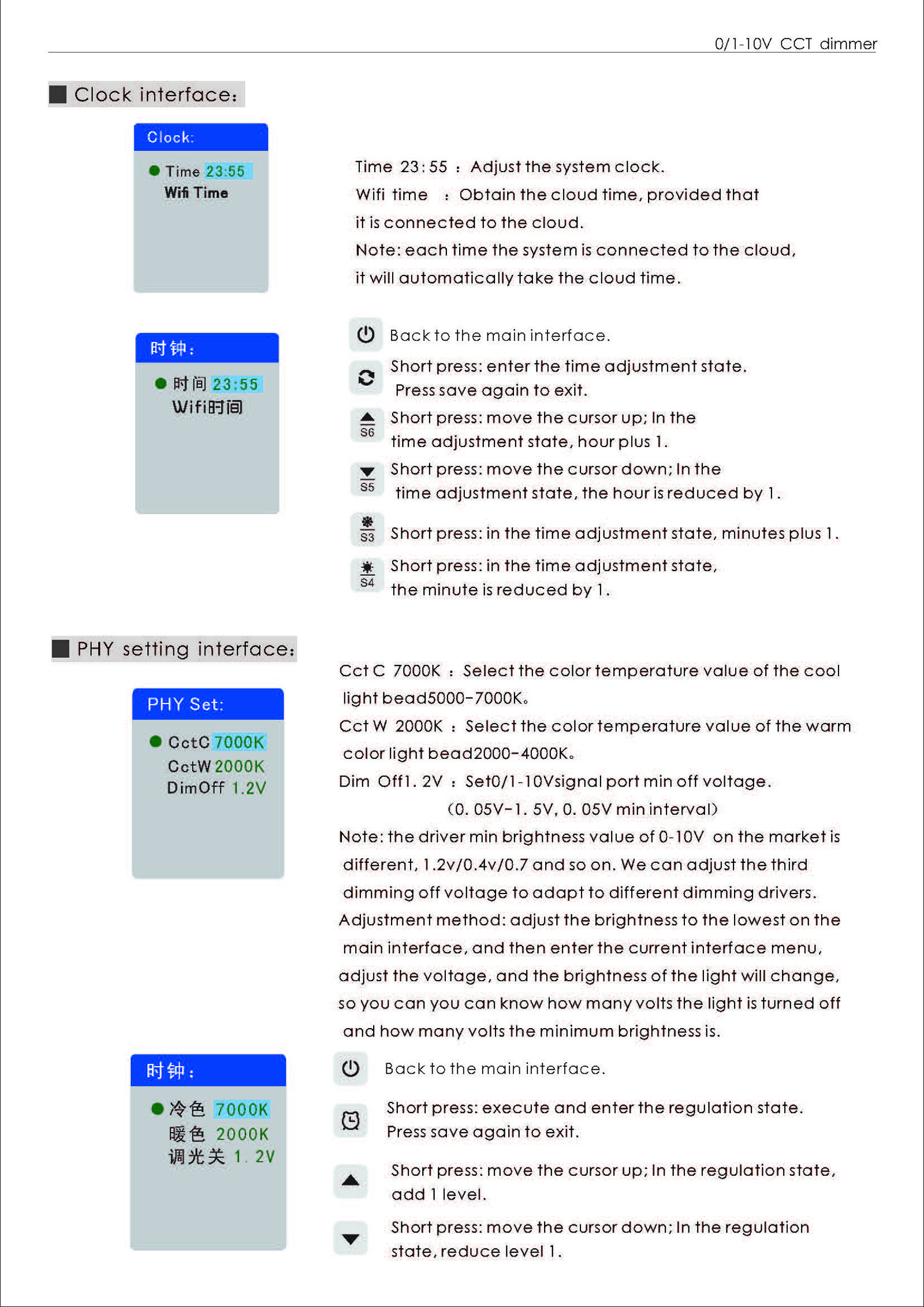

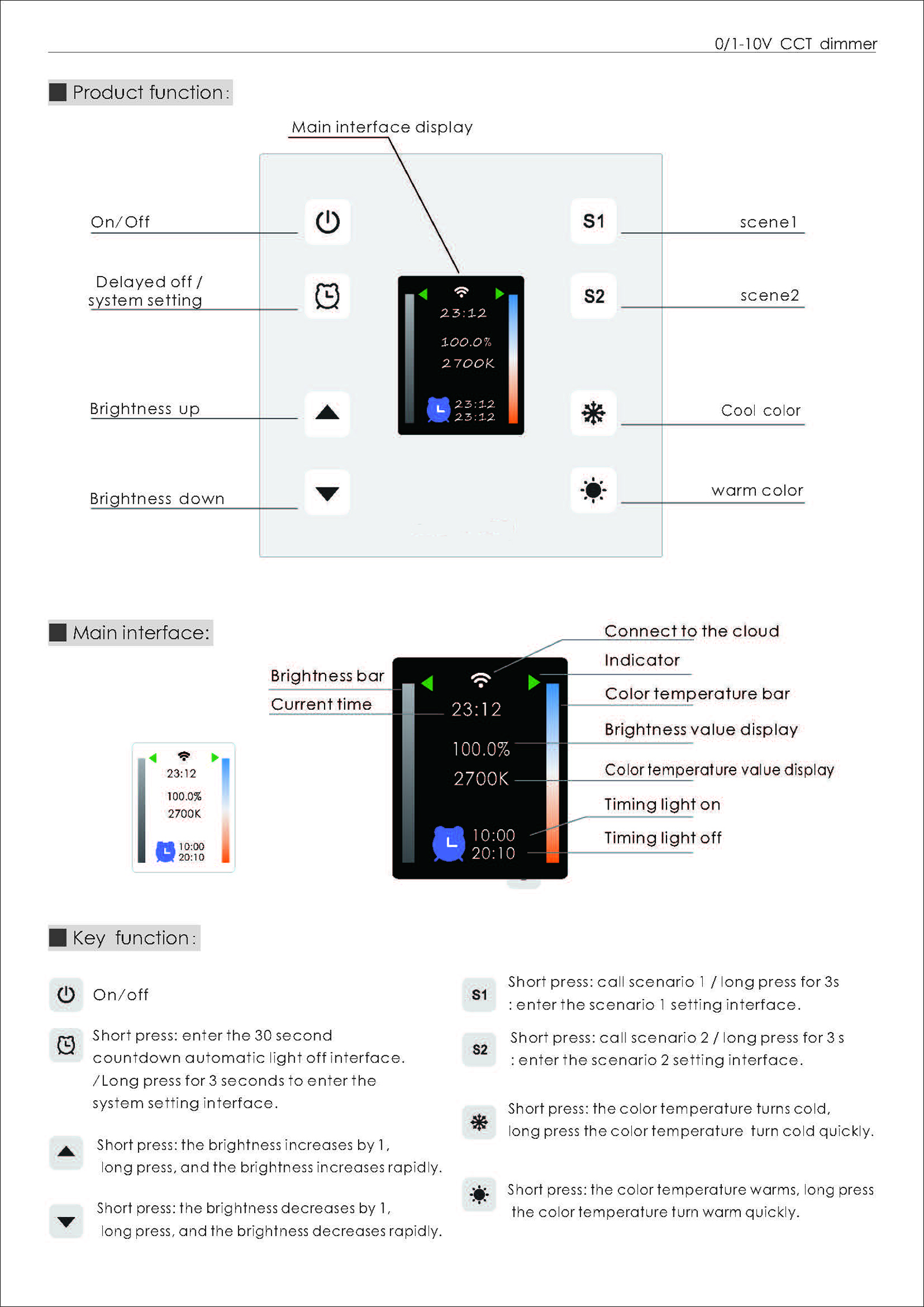

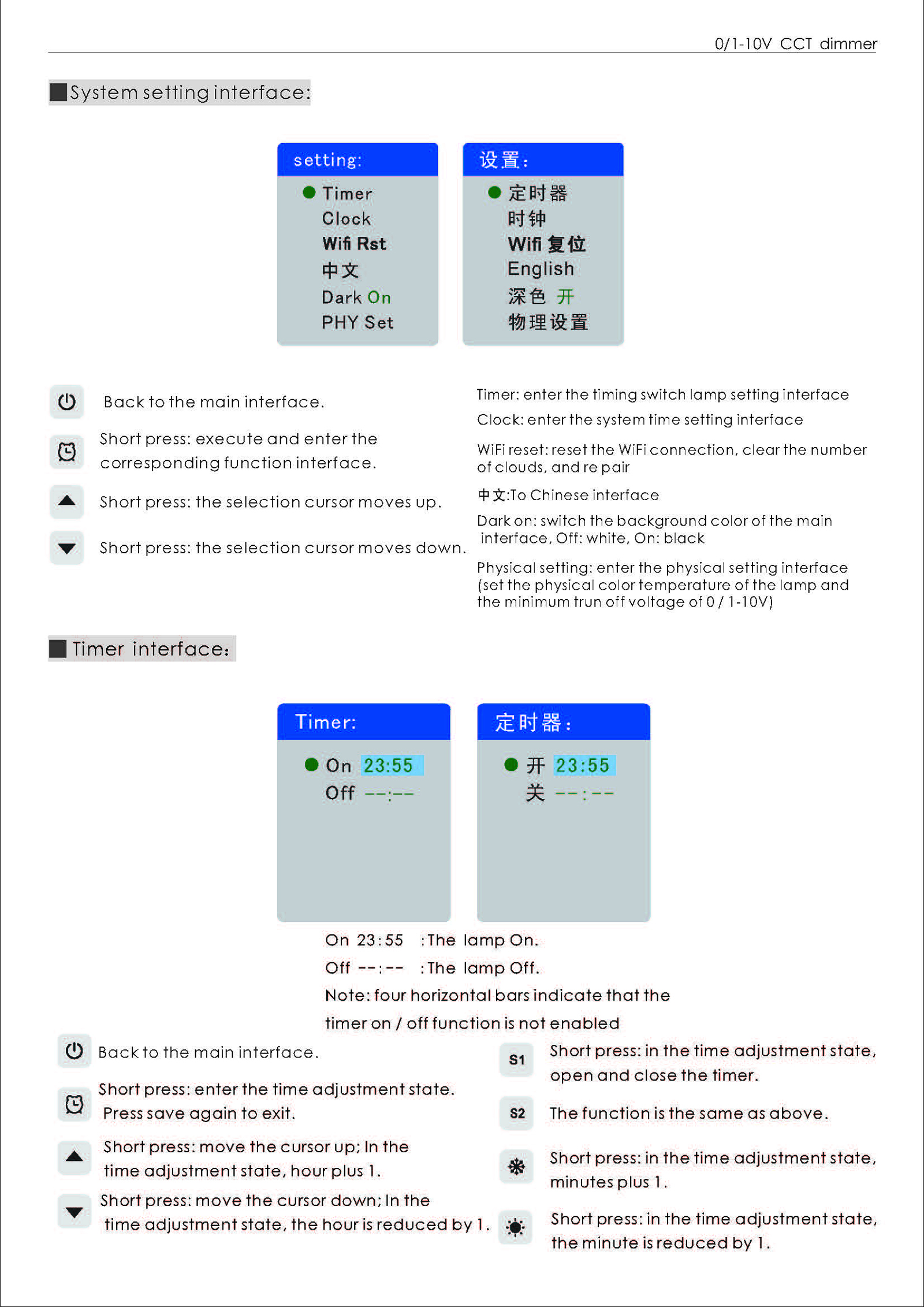

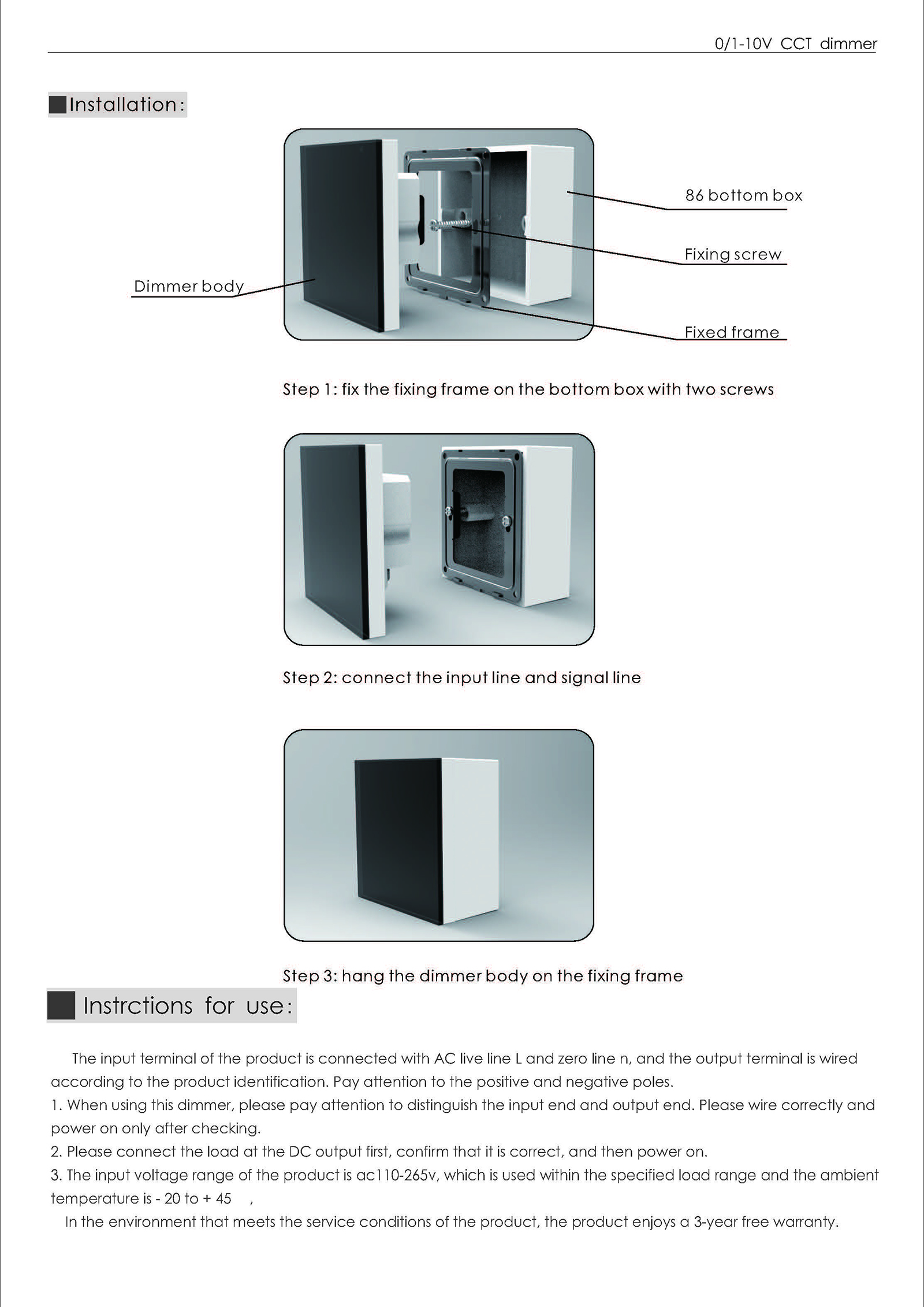

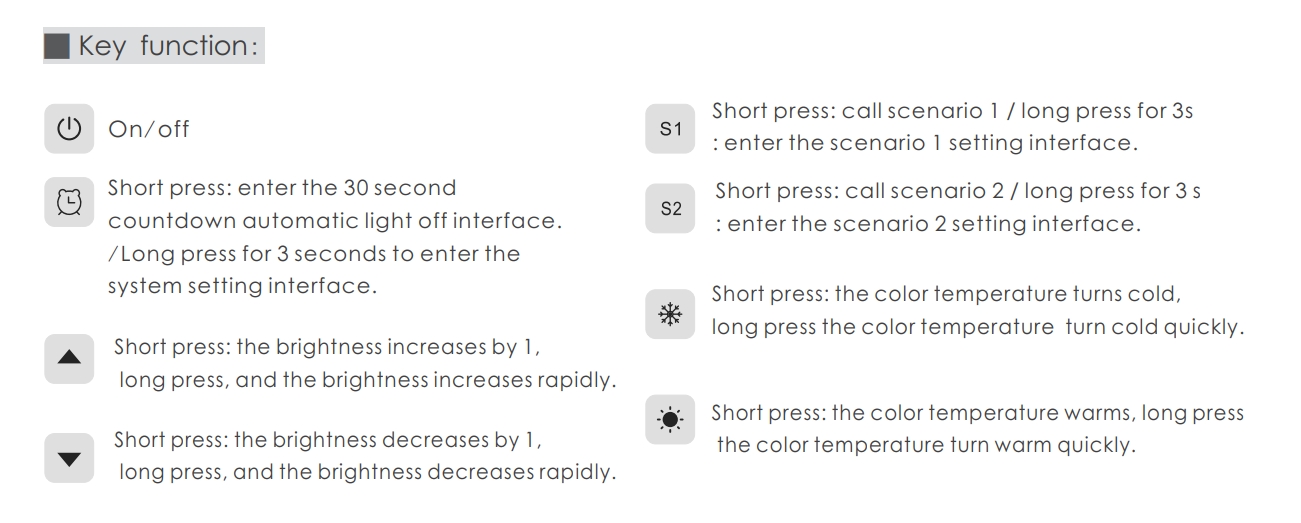

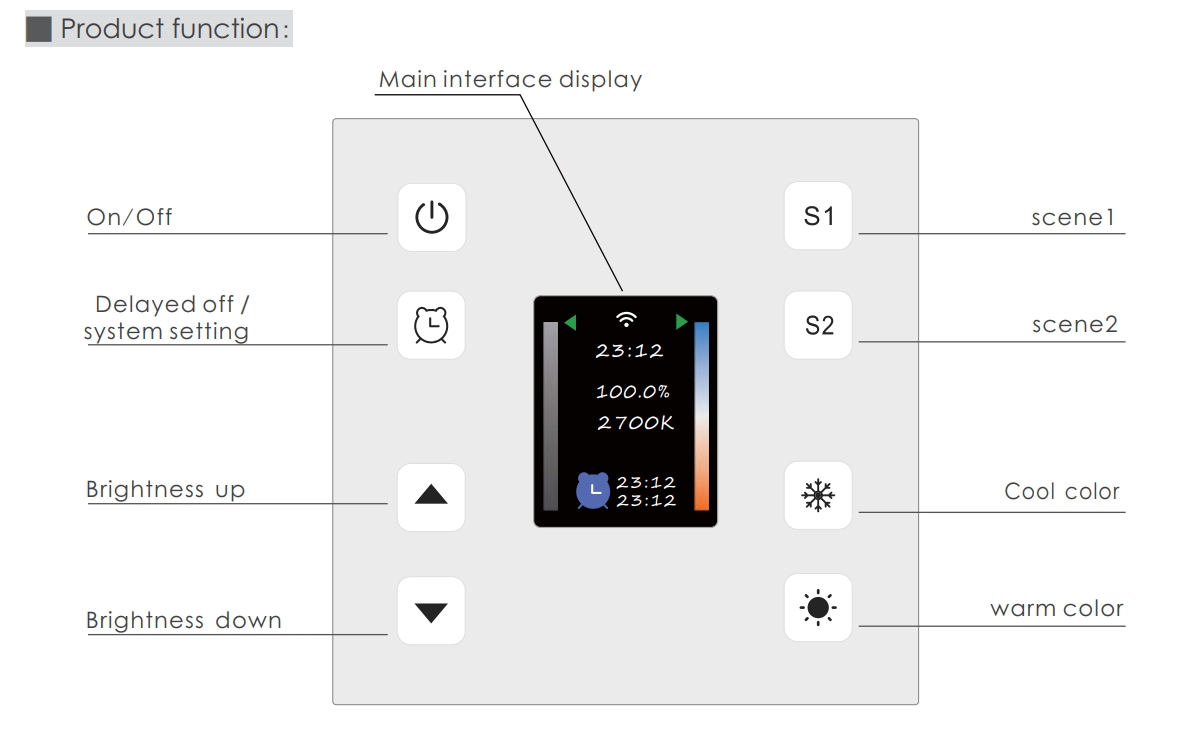

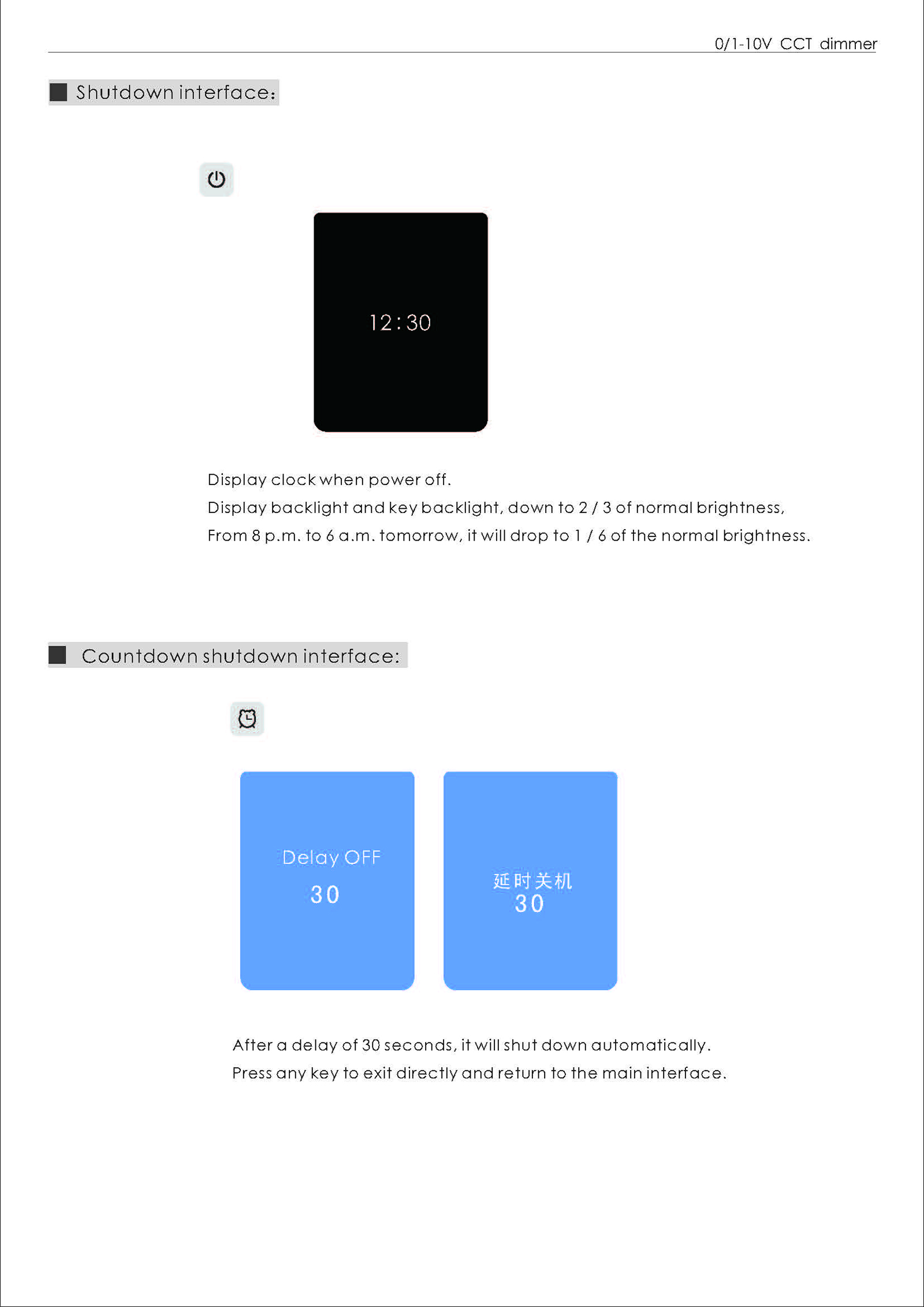

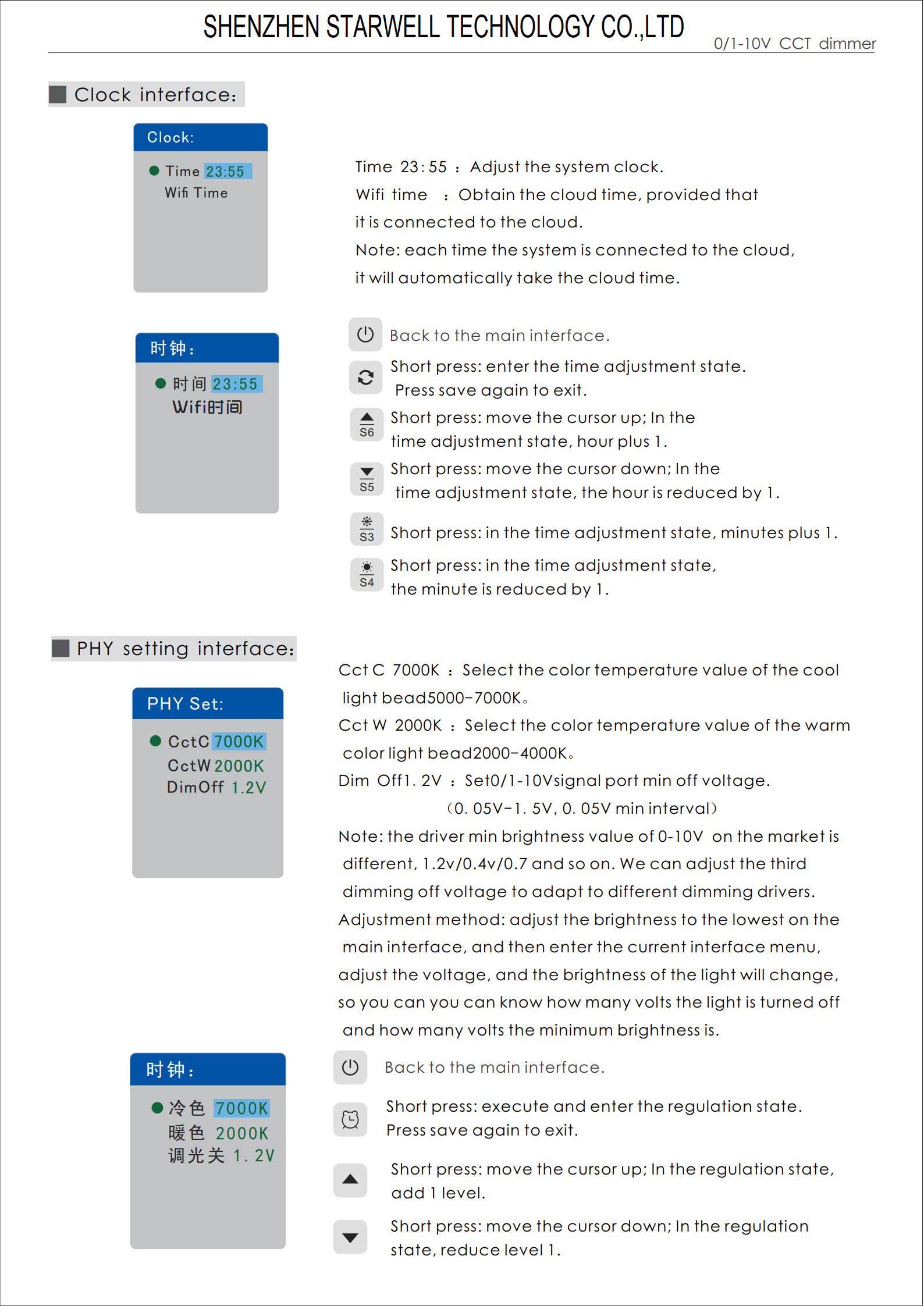

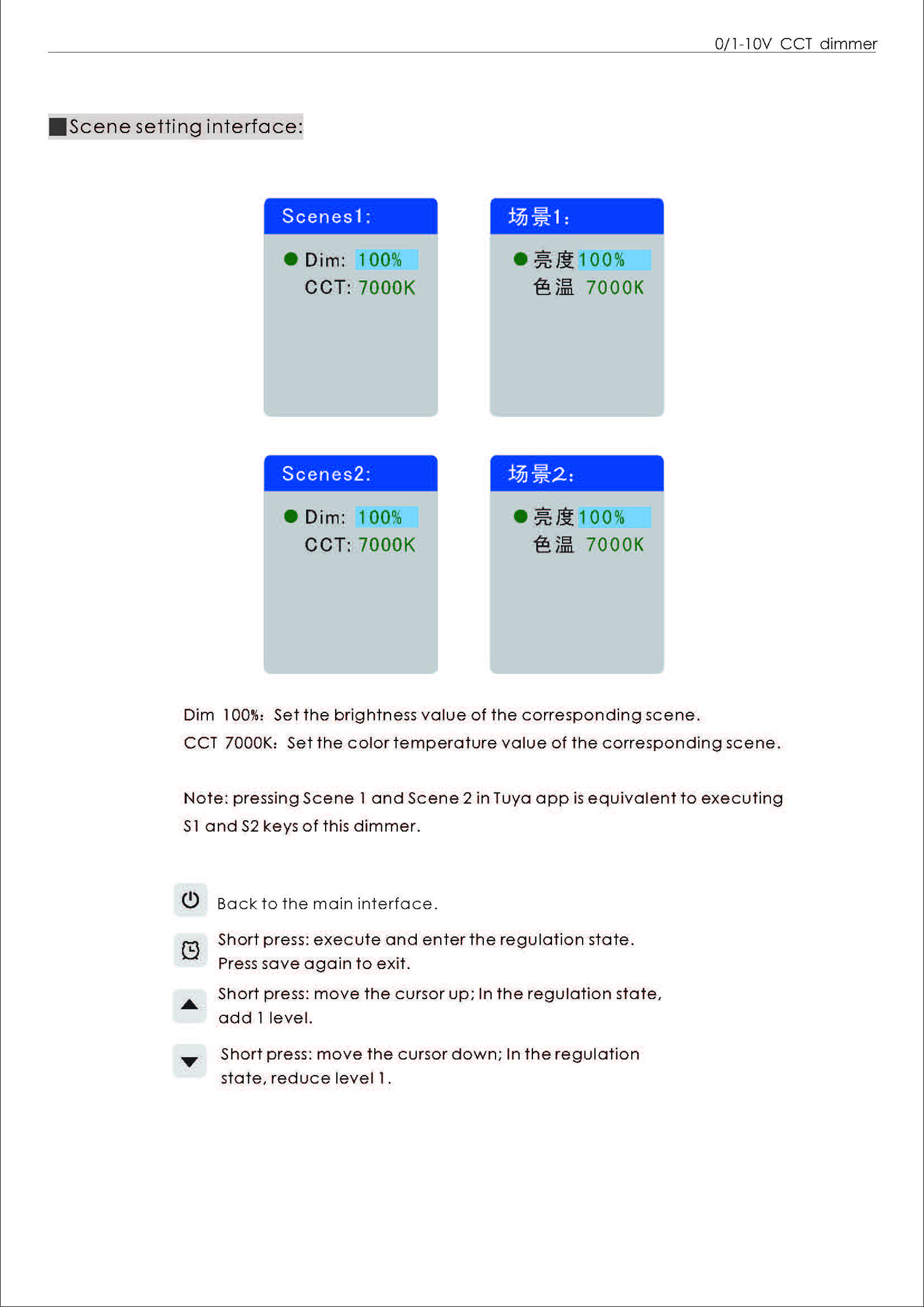

Instruction for use:

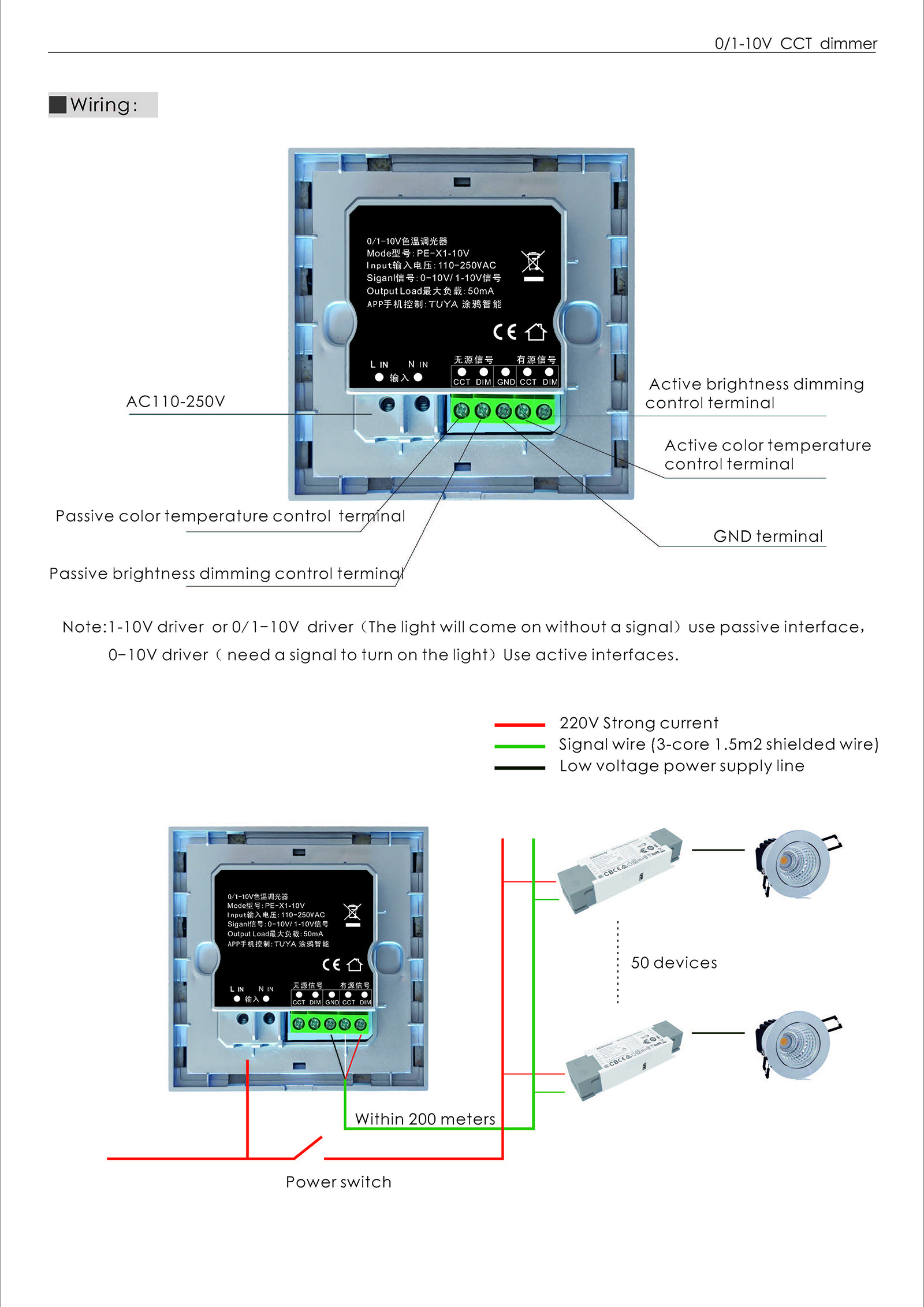

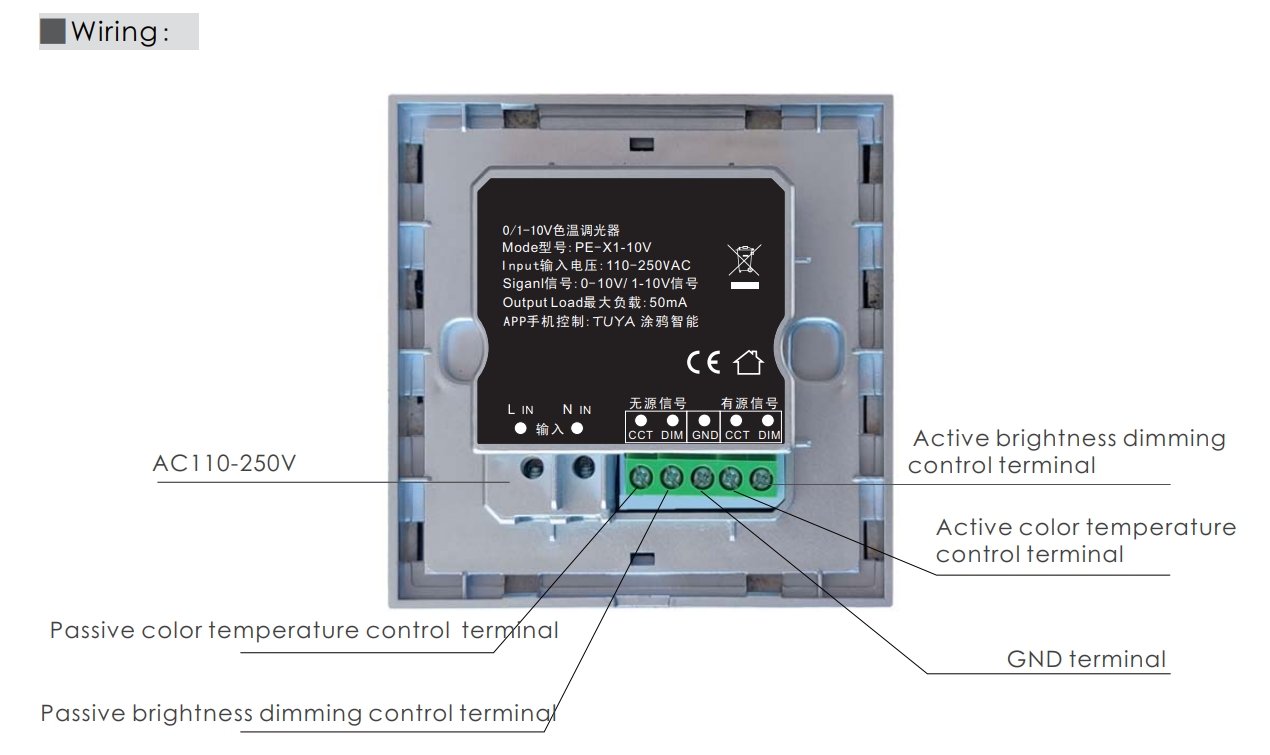

The input terminal of the product is connected with AC live line L and zero line n, and the output terminal is wired according to the product identification. Pay attention to the positive and negative poles.
1. When using this dimmer, please pay attention to distinguish the input end and output end. Please wire correctly and power on only after checking.
2. Please connect the load at the DC output first, confirm that it is correct, and then power on.
3. The input voltage range of the product is ac110-265v, which is used within the specified load range and the ambient temperature is - 20 to + 45 In the environment that meets the service conditions of the product, the product enjoys a 3-year free warranty.

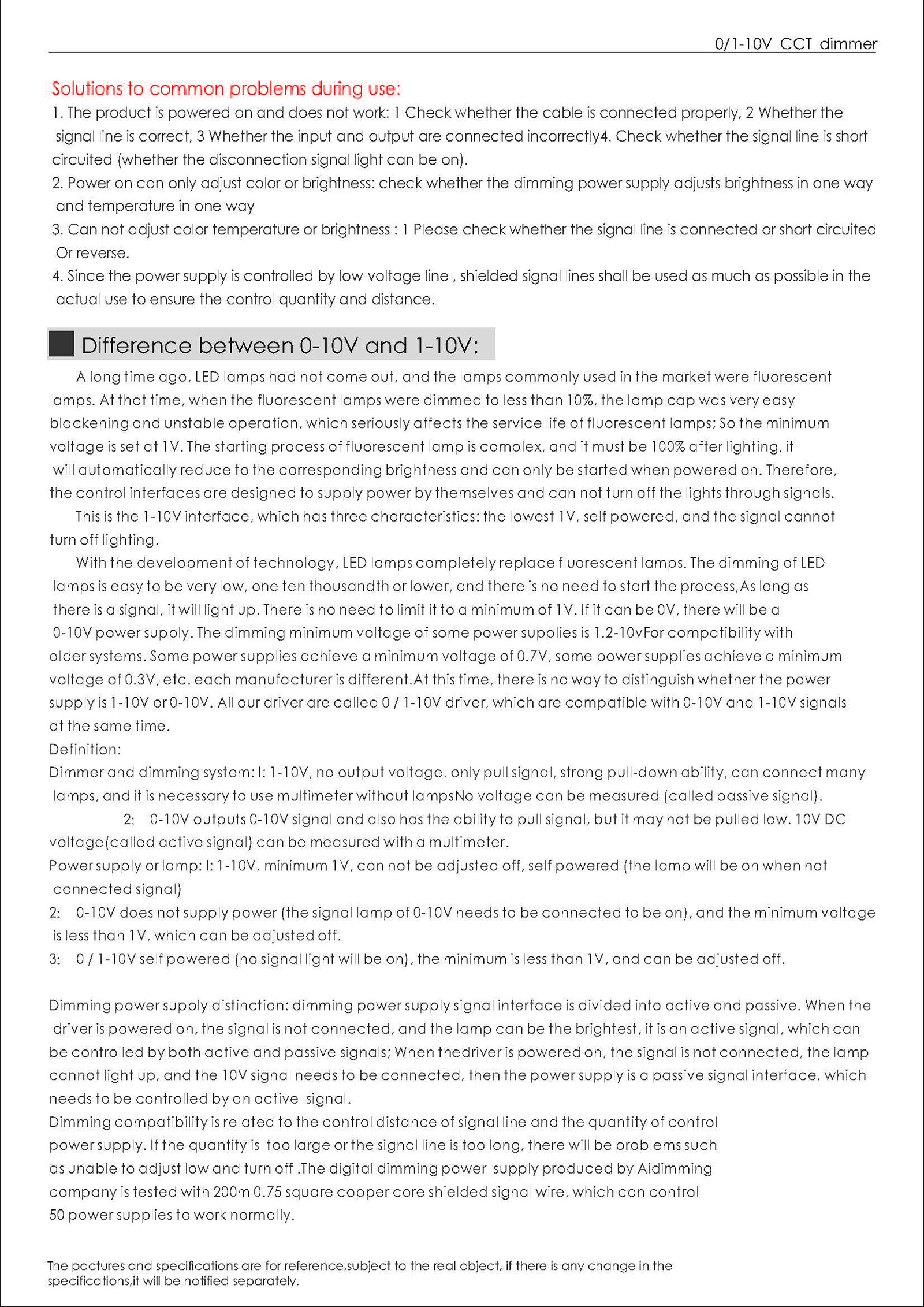

Difference between 0-10V and 1-10v:
Along time ago, LED lamps had not come out, and the lamps commonly used in the market were fluorescent lamps.At that time, when the fluorescentlamps were dimmed to less than 10%, thelamp cap was very easy blackening and unstable operation, which seriously affects the service life of fluorescent lamps; So the minimum voltage is set at 1V.The starting process of fluorescent lamp is complex, and it must be 100% after lighting, it will automatically reduce to the corresponding brightness and can only be started when powered on.Therefore, the control interfaces are designed to supply power by themselves and can not turn off the lights through signals.
This is the 1-10v interface, which has three characteristics: thelowest 1V, self powered, and the signal cannot turn off lighting .
With the development of technology, LED lamps completely replace fluorescentlamps.The dimming of LED lamps is easy to be very low, one ten thousandth orlower, and there is no need to start the process,As long as there is a signal, it will light up.There is no need to limit it to a minimum of 1V.Ifit can be 0V, there will be a 0-10V power supply.The dimming minimum voltage of some power suppliesis 1.2-10vFor compatibility with older systems. Some power supplies achieve a minimum voltage of 0.7v, some power supplies achieve a minimum voltage of 0.3v, etc.each manufacturer is different.At this time, there is no way to distinguish whether the power supplyis 1-10V or 0-10V.All our driver are called 0/1-10V driver, which are compatiblewith 0-10V and 1-10V signals at the same time
Definition;
With the development of technology, LED lamps completely replace fluorescentlamps.The dimming of LED lamps is easy to be very low, one ten thousandth orlower, and there is no need to start the process,As long as there is a signal, it will light up.There is no need to limit it to a minimum of 1V.Ifit can be 0V, there will be a 0-10V power supply.The dimming minimum voltage of some power suppliesis 1.2-10vFor compatibility with older systems. Some power supplies achieve a minimum voltage of 0.7v, some power supplies achieve a minimum voltage of 0.3v, etc.each manufacturer is different.At this time, there is no way to distinguish whether the power supplyis 1-10V or 0-10V.All our driver are called 0/1-10V driver, which are compatiblewith 0-10V and 1-10V signals at the same time
Definition;
Dimmer and dimming system: I: 1-10v,no output voltage, only pull signal, strong pull-down ability, can connect many lamps, and it is necessary to use multimeter without lampsNo voltage can be measured(called passive signal).
2:0-10V outputs 0-10V signal and also has the ability to pull signal, but it may not be pulled low.10v DC voltage(called active signal) can be measured with a multimeter. Power supply or lamp: I: 1-10v, minimum 1V, can not be adjusted off, self powered(thelamp will be on when not connected signal
2: 0-10V does not supply power(the signal lamp of 0-10V needs to be connected to be on), and the minimum voltage is less than 1V, which can be adjusted off.
3:0/1-10v self powered(no signal light will be on), the minimum is less than 1V, and can be adjusted off. Dimming power supply distinction: dimming power supply signal interface is divided into active and passive. When the driver is powered on, the signal is not connected, and thelamp can be the brightest, it is an active signal, which can be controlled by both active and passive signals; When thedriver is powered on, the signalis not connected, thelamp cannot light up,and the 10V signal needs to be connected, then the power supply is a passive signalinterface, which needs to be controlled by an active signal.
Dimming compatibility is related to the control distance of signal line and the quantity of control power supply. If the quantity is too large or the signal line is too long, there will be problems such
as unable to adjustlow and turn off.The digital dimming power supply produced by Aidimming company is tested with 200m 0.75 square copper core shielded signal wire, which can control 50 power supplies to work normally.
The poctures and specifications are for reference,subject to the real object, if there is any change in the specifications,it will be notified separately.
