Triac led dimmer

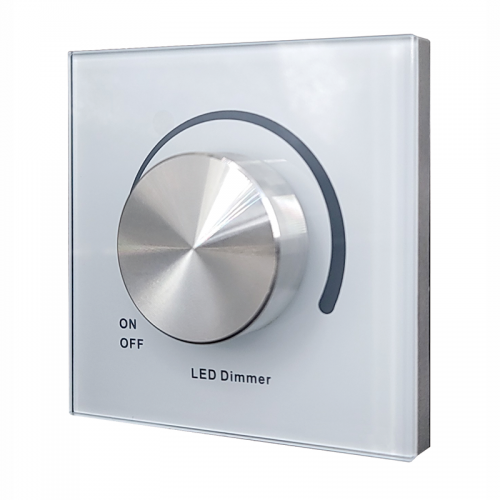

PE386 Triac Led dimmer

PE386 Triac Led dimmer
Input voltage( VAC) : 200- 250VAC
Input frequency( Hz) : 47-63Hz
Dimensions LxW(mm) : 86* 86mm
Dimensions LxWxH(mm) : 100* 92* 62
Dimming way: Leading edge dimmer
Panel control mode:  Knob control mode
Panel:  White
    PE386 Triac Led dimmer

    Features:
    1. Front cut dimming, smooth and fine dimming
    2. Metal knob brightness adjustment
    3. Support infrared remote control dimming on / off to quickly switch brightness
    4. There are 3 custom scenarios for remote control
    5. Super compatibility
    6. Glass panel, metal knob, strong texture
    7. Super dimming compatibility
    8. Slow on and slow off function
    9. Dimming range 0-100%
    10. Minimum brightness setting
    11. 5-year warranty


    Model PE386
    OUTPUT Out Voltage 0-250Vac
    Load Power 3-500W Max
    Dimming function leading edge dimmer
    Max control signal 500W
    INPUT Input Voltage range 200-250Vac
    Input power <2W
    Frequency 50/60Hz
    control mode knob dimming/ on and off
    remote control IR remote control ( remote range is less 15M)
    ENVIRONMENT Working Temperature ta: 45°C tc: 85°C
    Woking Humidity 20 ~ 95%RH, non-condensing
    Storage temp.,Humidity -40 ~ 80°C 10~95%RH
    Waterproof grade IP20
    PROTECTION Over Load Protection Use within the specified load range
    Short Circuit Protection The output cannot be short circuited, which will damage the dimmer and cannot be repaired
    Non-Load Protection No load voltage output
    OTHERS Dimension 86×86mm(L×W)
    Packing 100×92×62mm(L×W×H)
    Weight(G.W.) 158±10g
