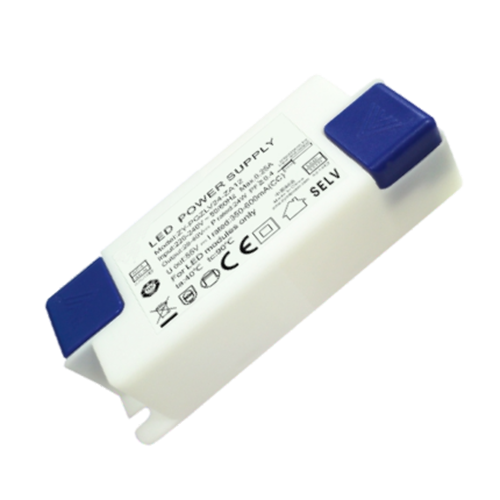

Constant Current led driver

ZY-PGZLV24 series (15-24W)

1. Input: 100-120VAC or 220-240VAC

2. Usage: down light, spot light, grille light, panellight, etc.

3. Characteristic: high costperformance,high efficiency,

4. stroboscopic coefficient <1%.

5. Lightning protection: 500V,five years warranty:

    STARWELL, a manufacturer of plastic constant current power supplies ranging from 24W, offers high-quality products with an extended warranty period. With excellent customer support, we ensure customer satisfaction throughout the product lifecycle.

    24W constant current led drivers are reliable and efficient power supplies designed to deliver a stable current to LED systems. They are widely used in residential and commercial lighting applications, including indoor lighting, architectural lighting, display lighting, and more, ensuring optimal performance and longevity of LEDs.

    24W  constant current led driver   Parameter (Specification)

    24W  constant current led driver



    High PF Flicer Free Isolated Driver

    Power: 15-24w

    Input:  100-240v

    Current: 0-700mA

    Double-staged No-flicker Series<1%

    CE/CB/TUV/SAA/PSE Certification


    MODEL LIST:

    产品型号
    (MODEL NO.)
    功率区间(W)
    POWER
    输入电压
    INPUT AC
    输出电压
    OUTPUT-DC
    输出电流
    OUTPUT Current (mA)
    功率因数
    POWER FACTOR
    外壳尺寸(mm)
    DIM(LxWxH)
    产品认证
    Certificates
    ZY-PGZLV24-ZC12 15-24W 100-120VAC or
    200-240VAC
    25-42V 375-600 0.5 96*36*24 CE/CB/ENEC
    ZY-PGZLV24-ZC24 15-24W 42-80V 185-300 0.5 96*36*24 CE/CB/ENEC

    Application:

    Starwell 24W constant current LED drivers with a long lifespan and high efficiency are highly sought-after in the market. These drivers offer exceptional features and versatility, ensuring stable and consistent current supply for optimal performance in LED systems.

    They find wide applications in various lighting scenarios, from residential indoor lighting, such as ceiling lights, downlights, and track lights, to commercial architectural lighting and display lighting in retail stores. They are also suitable for outdoor lighting applications like landscape lighting and pathway lighting.

    By providing a constant current, these drivers prevent overcurrent and voltage fluctuations, ensuring the longevity and reliability of the LED fixtures.
