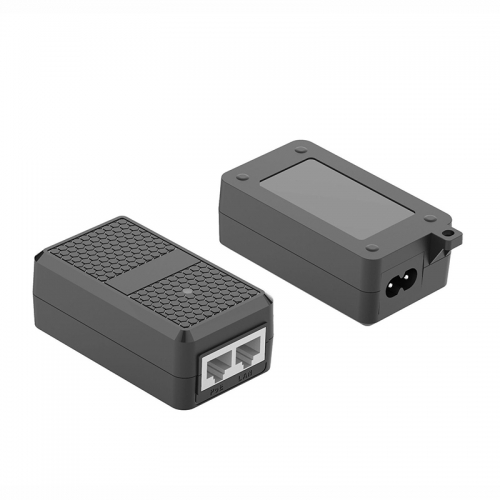

The 24W Desktop POE Injector is a standard Gigabit Ethernet PoE (Power over Ethernet) adapter manufactured by STARWELL. This PoE injector is designed to provide power and data transmission capabilities for Ethernet devices. It is commonly used in various application scenarios such as security monitoring, wireless coverage, and bridge relay.
The 24W Desktop POE Injector features a Gigabit PoE port that can deliver power and data at 1G/2.5G speeds. It also includes a 1/2.5 Gigabit uplink port for seamless connectivity to the network. This allows for high-speed data transmission and efficient power delivery to connected devices.
In terms of power supply, the PSE-24W supports 1/2/4/5+ and 3/6/7/8- pin configurations, delivering 52V POE power to connected devices. It is compatible with devices that support 1/2/4/5+ and 3/6/7/8- power supply at the receiving end. This ensures reliable and stable power delivery to PoE-enabled devices, eliminating the need for separate power cables.
The 24W Desktop POE Injector is optimized for POE network power supply, providing a convenient and efficient solution for powering various devices over the Ethernet network. Its versatility makes it suitable for a wide range of applications, including security monitoring systems, wireless coverage setups, and bridge relays.
In summary, the 24W Desktop POE Injector by STARWELL is a reliable and feature-rich device that offers high-speed data transmission and efficient power delivery for PoE-enabled devices. It is a versatile solution suitable for various application scenarios that require reliable and centralized power supply over the Ethernet network.
STARWELL 24W Desktop POE Injector Specification:
| Item | 5W 12W 18W 24W POE Power Adapter, POE injector, Power Over Ethernet for router, POE injecter | ||||||
| Model | PSE-xxxyyyw | ||||||
| INPUT | 100-240VAC 50/60Hz | ||||||
| Output | 12V | 15V | 18V | 24V | 48V | 56V | |
| 0-2A | 0-1.6A | 0-1.33A | 0-1.0A | 0-5A | 0.4A | ||
| Features | Ripple & Noise | <120mV | |||||
| Energy star level | Eup 2.0, Doe VI, CEC VI, CoC VI | ||||||
| inlet | C8 C6 inlet optional | ||||||
| Installing | Available for the system of Safety Class I/II | ||||||
| Environment | Operation Temp | -10 ~ +65℃, 10 ~ 95% RH non-condensing | |||||
| Storage Temp | -20 ~ +85℃ (Refer to "Derating Curve") | ||||||
| Storage Humidity | 20 ~ 90% RH non-condensing | ||||||
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||
| Cooling Method | by NTC (natural cooling) | ||||||
| Safety&EMC | Safety Standard | UL 62368, ETL 62368, EN 62368, EN 61558 | |||||
| Safety Approvals | UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more information, please contact us. |
||||||
| EMC Stardard | EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020 | ||||||
| MTBF | 5K hrs min. MIL-HDBK-217F (25℃) | ||||||
| POE funciton | Protocol | Compatible with IEE802.3af/IEEE802.3at | |||||
| Protocol type | Passive POE / Active POE (optional) | ||||||
| POE pin | 4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan or 1245+ 3678- | ||||||
| Data Speed | 10/100/1000M/2.5G/5G/10G bps ( optional ) | ||||||
| Machanicals | DC PORT | 2*RJ45 :10/100/1000M/2.5G/5G/10G bps, Port 1: LAN, Port 2: POE | |||||
| Dimension | 84x46.99x37.1mm (LxWxH) exclude plug | ||||||
| Packing | 100g; 100pcs/12.0Kg/0.056CBM |
||||||
