Item |
5W 12W 18W 24W POE Power Adapter |
||||||
Model |
PSE-xxxyyyw |
||||||
INPUT |
100-240VAC 50/60Hz |
||||||
Output |
12V |
15V |
18V |
24V |
48V |
56V |
|
0-2A |
0-1.6A |
0-1.33A |
0-1.0A |
0-5A |
0.4A |
||
Features |
Ripple & Noise |
<120mV |
|||||
Energy star level |
Eup 2.0, Doe VI, CEC VI, CoC VI |
||||||
Efficiency |
>88% |
||||||
Installing |
Available for the system of Safety Class I/II |
||||||
Environment |
Operation Temp |
-10 ~ +65℃, 10 ~ 95% RH non-condensing |
|||||
Storage Temp |
-20 ~ +85℃ (Refer to "Derating Curve") |
||||||
Storage Humidity |
20 ~ 90% RH non-condensing |
||||||
Vibration |
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
||||||
Cooling Method |
by NTC (natural cooling) |
||||||
Safety&EMC |
Safety Standard |
UL 62368, ETL 62368, EN 62368, EN 61558 |
|||||
Safety Approvals |
UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more |
||||||
EMC Stardard |
EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020 |
||||||
MTBF |
5K hrs min. MIL-HDBK-217F (25℃) |
||||||
POE funciton |
Protocol |
Compatible with IEE802.3af/IEEE802.3at |
|||||
Protocol type |
Passive POE / Active POE (optional) |
||||||
POE pin |
4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan or 1245+ 3678- |
||||||
Data Speed |
10/100/1000M/2.5G bps ( optional ) |
||||||
Machanicals |
DC PORT |
2*RJ45 :10/100/1000Mbps, Port 1: LAN, Port 2: POE |
|||||
Dimension |
84x46.99x37.1mm (LxWxH) exclude plug |
||||||
Packing |
100g; 100pcs/12.0Kg/0.056CBM |
Products
Contact Us
Engineer support | |
18927407321 | |
support@starwell.cc |
You are here:Home >> Products >> POE ADAPTER >> Wallmounted POE adapter...

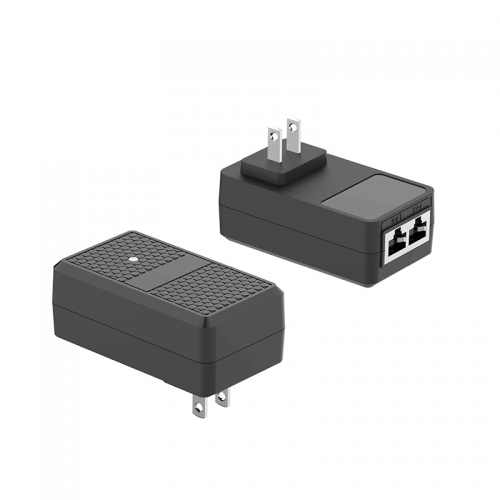

Wallmounted POE adapter
24W series POE adapter
█ Features:
●24W series wallmounted POE power adapter
●input: 100-240VAC
●output: see below model list
●Plug typpe: US/CN/EU/UK/AUS plug optional
●Certificates: UL, CE, FCC, TUV, UKCA
●Color: black or white optional.
●DC PORT: 2*RJ45 : Port 1: LAN, Port 2: POE
●Protocol type: Passive POE or Active POE optional
●POE pin: 4,5(+)/7,8(-) Midspan / 1,2(+),3,6(-) Endspan / 1,2,4,5(+) 3,6,7,8(-) both
●Protocol: Compatible with IEE802.3af/IEEE802.3at
●Data Speed:
●size: 84*46.9*31.7mm(exclude plug)
