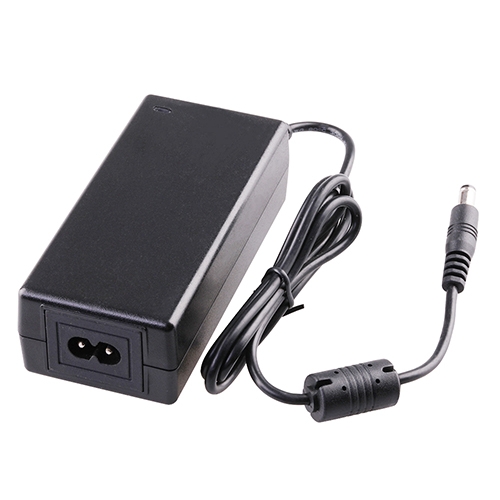

STARWELL is a reputable Chinese factory and supplier with years of experience specializing in 48W desktop power adapter production.
The 48W desktop power adapter manufactured by STARWELL, with the mentioned certifications and specifications:
The 48W desktop power adapter by STARWELL is a reliable and high-quality power supply solution. It is designed to meet international safety standards and provides efficient and stable power delivery.
Product Specifications:
• Power Output: 48W
• Manufacturer: STARWELL
• Safety Standards: The power adapter complies with the following safety standards:
• IEC62368: Audio/Video, Information, and Communication Technology Equipment
• IEC60601: Medical Electrical Equipment
• IEC61347: Lamp Controlgear
• IEC61558: Safety of Power Transformers, Power Supply Units, and Similar Devices
Quality Certifications:
• ISO9001 and ISO14001: The manufacturing facility has obtained ISO9001 certification for quality management systems and ISO14001 certification for environmental management systems. This ensures consistent product quality and environmental responsibility.
Safety Certifications:
• UL: Underwriters Laboratories (United States)
• CE: Conformité Européene (European Union)
• FCC: Federal Communications Commission (United States)
• TUV: Technischer Überwachungsverein (Germany)
• UKCA: UK Conformity Assessed (United Kingdom)
• RCM: Regulatory Compliance Mark (Australia and New Zealand)
Voltage and Current Options:
The power adapter offers the following output voltage and current options:
• 5V6A: 5 Volts, 6 Amps
• 9V5A: 9 Volts, 5 Amps
• 9V6A: 9 Volts, 6 Amps
• 12V4A: 12 Volts, 4 Amps
• 12V5A: 12 Volts, 5 Amps
• 24V2A: 24 Volts, 2 Amps
• 24V2.5A: 24 Volts, 2.5 Amps
• 48V1A: 48 Volts, 1 Amp
• 48V1.25A: 48 Volts, 1.25 Amps
Energy Efficiency:
The power adapter meets energy efficiency level 6 requirements, ensuring minimal energy waste and improved efficiency.
With its adherence to stringent safety standards, quality certifications, and a range of voltage options, the STARWELL 48W desktop power adapter offers a reliable and efficient power supply solution for various applications.
STARWELL 48W 65W desktop power adapters Specification:
Item |
48-65W desktop Power Adapter |
|
Model |
SW-00xxxyyy-S10 |
|
INPUT |
100-240VAC 50/60Hz |
|
Output |
SEE MODEL LIST |
|
Features |
Ripple & Noise |
<120mV |
Energy star level |
Eup 2.0, Doe VI, CEC VI, CoC VI |
|
Efficiency |
>88% |
|
Installing |
Available for the system of Safety Class I/II |
|
Environment |
Operation Temp |
-10 ~ +65℃, 10 ~ 95% RH non-condensing |
Storage Temp |
-20 ~ +85℃ (Refer to "Derating Curve") |
|
Storage Humidity |
20 ~ 90% RH non-condensing |
|
Vibration |
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
|
Cooling Method |
by NTC (natural cooling) |
|
Safety&EMC |
Safety Standard |
UL 62368, ETL 62368, EN 62368, EN 61558, IEC60335, IEC60601 |
Safety Approvals |
UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more |
|
EMC Stardard |
EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020 EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020 |
|
MTBF |
5K hrs min. MIL-HDBK-217F (25℃) |
|
Machanicals |
DC Connectors |
USB-C, 5.5x2.1mm, 5.5x2.5mm, 4.0x1.7mm, 3.5x1.35mm and more available |
Dimension |
91.5x45x30mm (LxWxH) |
|
Packing |
140g; 100pcs/15.0Kg/0.056CBM |
MODEL LIST:
48W DESKTOP POWER ADAPTER |
||||||
POWER |
MODEL |
INPUT |
OUTPUT |
OUTPUT |
Certificates |
inlet |
48W Series |
SW-0009050-S10 |
100-240VAC |
9V |
5.0A |
UL,CE,FCC, RCM,C-TICK, UKCA |
C8, C6, C14 or attached with ac cable |
SW-00120400-S10 |
12V |
4.0A |
||||
SW-00150300-S10 |
15V |
3.0A |
||||
SW-00240200-S10 |
24V |
2.0A |
||||
SW-00480100-S10 |
48V |
1.0A |
65W DESKTOP POWER ADAPTER |
||||||
POWER |
MODEL |
INPUT |
OUTPUT |
OUTPUT |
Certificates |
inlet |
65W Series |
SW-00090600-S10 |
100-240VAC |
9V |
6.0A |
UL,CE,FCC, RCM,C-TICK, UKCA |
C8, C6, C14 or attached with ac cable |
SW-00120500-S10 |
12V |
5.0A |
||||
SW-00150400-S10 |
15V |
4.0A |
||||
SW-00240250-S10 |
24V |
2.5A |
||||
SW-00480133-S10 |
48V |
1.33A |

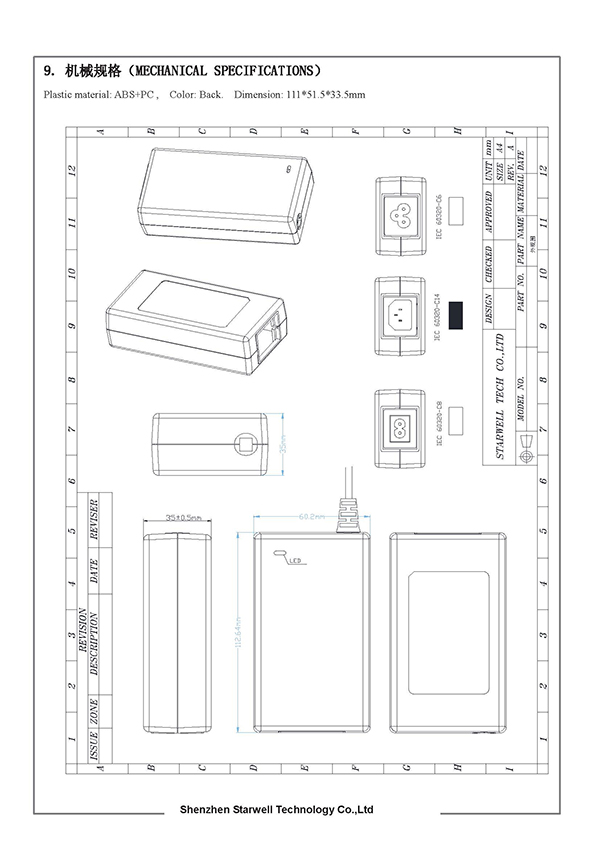

DRAWING:
