Item

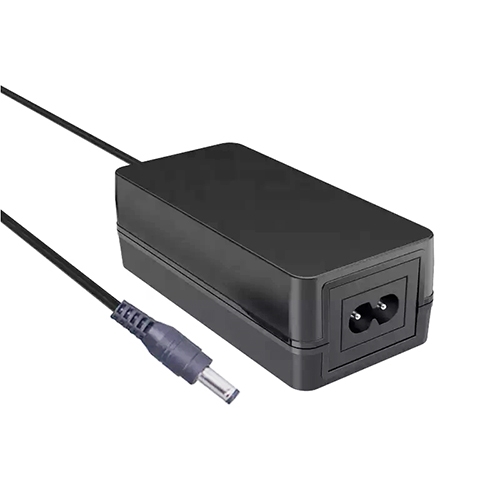

24-36W desktop Power Adapter

Model

SW-00xxxyyy-S10

INPUT

100-240VAC 50/60Hz

Output

SEE MODEL LIST

Features

Ripple & Noise

<120mV

Energy star level

Eup 2.0, Doe VI, CEC VI, CoC VI

Efficiency

>88%

Installing

Available for the system of Safety Class I/II

Environment

Operation Temp

-10 ~ +65℃, 10 ~ 95% RH non-condensing

Storage Temp

-20 ~ +85℃ (Refer to "Derating Curve")

Storage Humidity

20 ~ 90% RH non-condensing

Vibration

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

Cooling Method

by NTC (natural cooling)

Safety&EMC

Safety Standard

UL 62368, ETL 62368, EN 62368, EN 61558, IEC60335, IEC60601

Safety Approvals

UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more
information, please contact us.

EMC Stardard

EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020

EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020

MTBF

5K hrs min. MIL-HDBK-217F (25℃)

Machanicals

DC Connectors

USB-C, 5.5x2.1mm, 5.5x2.5mm, 4.0x1.7mm, 3.5x1.35mm and more available

Dimension

 91.5x45x30mm (LxWxH)

Packing

140g; 100pcs/15.0Kg/0.056CBM

24W DESKTOP POWER ADAPTER

POWER

MODEL

INPUT

OUTPUT
VOLT

OUTPUT
CURRENT

Certificates

inlet

24W Series

SW-00090250-S10

100-240VAC

9V

2.5A

UL,CE,FCC, RCM,C-TICK, UKCA

C8, C6, C14 or attached with ac cable

SW-00120500-S10

12V

2.0A

SW-00150160-S10

15V

1.6A

SW-00240000-S10

24V

1.0A

SW-00480050-S10

48V

0.5A

36W DESKTOP POWER ADAPTER

POWER

MODEL

INPUT

OUTPUT
VOLT

OUTPUT
CURRENT

Certificates

inlet

36W Series

SW-00090400-S10

100-240VAC

9V

4.0A

UL,CE,FCC, RCM,C-TICK, UKCA

C8, C6, C14 or attached with ac cable

SW-00120300-S10

12V

3.0A

SW-00150240-S10

15V

2.4A

SW-00240100-S10

24V

1.0A

SW-00480050-S10

48V

0.5A
