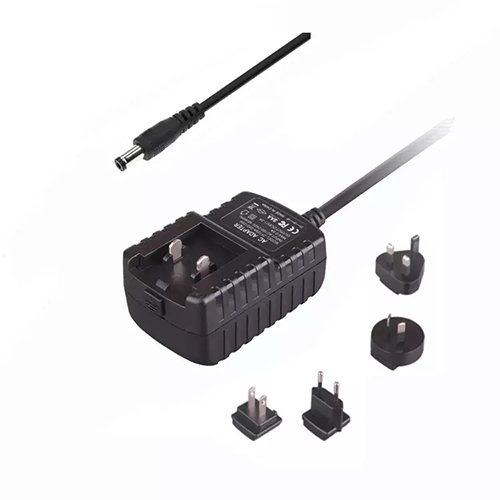

universal power adapter

5W interchangeable power adpater

5W interchangeable power adapter
input: 100-240VAC
output: see below model list
Plug typpe: US, EU, UK, AUS, KR, JP, CN plug optional
Certificates: UL,CE,FCC,TUV,UKCA,RCM, SAA, C-TICK,ROHS,REACH
Color: black or white  optional.
DC jack: 5.5*2.1mm, 5.5*2.5mm, 4.0*1.7mm, 3.5*1.35mm, USB A etc...
size:62*39.2*32.1mm

    The STARWELL made 5W,12W,18W interchaangeable power adapter offers versatility with US/EU/AU/UK/KR/CN interchangeable plugs and provides multiple output options, including
    5W: 5V1A, 12V0.5A, 9V0.6A, 6V1A
    12W : 5V2A, 5V2.4A, 9V1A, 12V1A, 15V0.8A, and 24V0.5A
    18W:  9V1.5A, 12V1.5A, 15V1.2A, 18V1A

    STARWELL, a trusted brand in the industry, offers the versatile and reliable STARWELL 5W 12W 18W interchangeable power adapter. This adapter, manufactured by STARWELL, is designed to provide convenience and compatibility worldwide, making it a perfect solution for your power needs.

    Equipped with interchangeable US/EU/AU/UK/KR/CN plugs, this adapter allows for seamless power connectivity in various countries and regions without the need for additional converters. Whether you‘re traveling or using it at home, it ensures hassle-free power usage.

    In addition to its convenience, the STARWELL 5W 12W 18W power adapter meets international certifications such as UL, CE, FCC, RCM, ROHS, and REACH. These certifications ensure compliance with safety and environmental standards, giving you peace of mind.

    When it comes to performance, the adapter offers multiple output voltage options, including 5V2A, 5V2.4A, 9V1A, 12V1A, 15V0.8A, and 24V0.5A. This versatility allows you to charge a wide range of devices, including smartphones, tablets, Bluetooth speakers, and other compatible electronics.

    With its compact and detachable design, the STARWELL 5W 12W 18W power adapter is highly portable and easy to carry. It is produced in an ISO-certified factory, ensuring consistent quality. Moreover, it offers good pricing, making it a cost-effective choice.




    SPECIFICATION:

    Item

    5W universal power adapter

    Model

    SK01G-xxxyyyyw

    Output range

    "xxx" can be 050 to 480 which represent output voltage from 5V to 48V in step on 0.1V

    "yyyy" can be 0010 to 0600 which represent output current from 0.1A to 6.0A in step on 0.01A

    "w" can be EU, US, CN, JP, BS, AU, KR or Z EU denote European plug, US denote American plug, CN denote China plug, JP denote Japan plug, BS denote UK plug, AU denote Australia plug, KR denote Korea plug, Z denote replaceable plug

    INPUT

    100-240VAC 50/60Hz

    Output

    SEE MODEL LIST





    Features

    Ripple & Noise

    <120mV

    Energy star level

    Eup 2.0, Doe VI, CEC VI, CoC VI

    Efficiency

    >88%

    Installing

    Available for the system of Safety Class I/II

    Environment

    Operation Temp

    -10 ~ +65, 10 ~ 95% RH non-condensing

    Storage Temp

    -20 ~ +85 (Refer to "Derating Curve")

    Storage Humidity

    20 ~ 90% RH non-condensing

    Vibration

    10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

    Cooling Method

    by NTC (natural cooling)

    Safety&EMC

    Safety Standard

    UL 62368, ETL 62368, EN 62368, EN 61558

    Safety Approvals

    UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more
    information, please contact us.

    EMC Stardard

    EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020

    EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020

    MTBF

    5K hrs min. MIL-HDBK-217F (25)



    Machanicals

    DC Connectors

    USB-C, 5.5x2.1mm, 5.5x2.5mm, 4.0x1.7mm, 3.5x1.35mm and more available

    Dimension

    62.0x39.2x32.1mm (LxWxH)

    Packing

    145g; 54pcs/14.5Kg/0.056CBM

     MODEL LIST:

    5W INTERCHANGEABLE POWER ADAPTER

    POWER

    MODEL

    INPUT

    OUTPUT
    VOLT

    OUTPUT
    CURRENT

    Certificates

    PLUG

    5W Series

    SK01G-0500100Z

    100-240VAC

    5V

    1.0A

    UL,CE,FCC, RCM,C-TICK, UKCA

    interchangeable

    SK01G-0500120Z

    5V

    1.2A

    SK01G-1200050Z

    12V

    0.5A

    SK01G-1500030Z

    15V

    0.3A

    SK01G-2400050Z

    24V

    0.25A

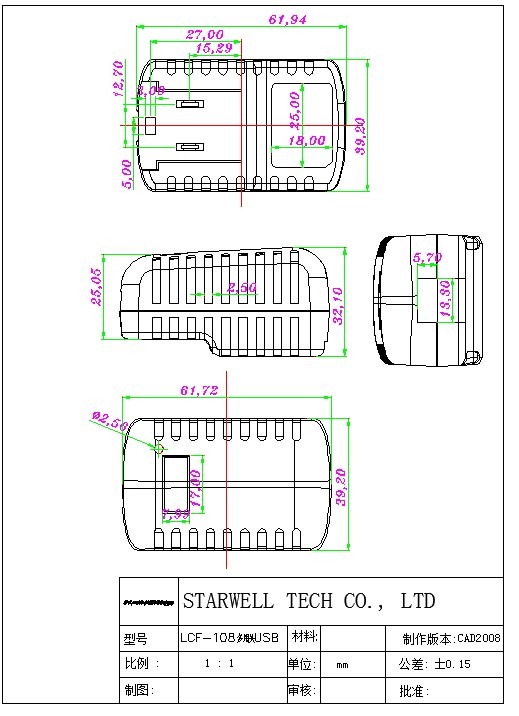

    DRAWING:
