Our company offers a selection of classic models in constant current triac dimmable led drivers. In our small-sized circular series, we have models such as PE280 (8W), PE281 (12W), PE282 (18W), and PE283 (30W). These power supplies are characterized by their compact size and utilize controllable silicon technology to achieve efficient dimming capabilities.
Additionally, we have a classic series of flicker-free dimmable led driver, which include models such as PE294 (12W), PE296 (18W), PE292 (30W), PE299 (36W), and PE298 (50W). These power supplies are designed to eliminate flickering and provide stable illumination.
LED DRIVER SPEC
| Model | PE294R2435 | PE294R4225 | PE294R4230 | PE294R24250 | PE294R1570 | PE294R1570 | |
| OUTPUT | Output Voltage | 12-24Vdc | 25-42Vdc | 25-42Vdc | 12-24Vdc | 6-15Vdc | 2.5-6Vdc |
| Max Output Voltage | 24Vdc | 42Vdc | 42Vdc | 24Vdc | 15Vdc | 6Vdc | |
| Non-load Output Voltage | 27Vdc | 45Vdc | 45Vdc | 27Vdc | 19Vdc | 8Vdc | |
| Output Current | 350mA | 250mA | 300mA | 500mA | 700mA | 700mA | |
| Output Power | 4.2W~8.4W | 6.25W~10.5W | 7.5W~12.6W | 6W~12W | 4.2W~10.5W | 1.75W~4.2W | |
| Dimming Range | 2~100%, | ||||||
| Current Accuracy | ±5% | ||||||
| Ripple & Noise | =500mv p-p | ||||||
| INPUT | Dimming Interface | Triac Leading edge / Tralling edge Dimming Led driver | |||||
| Input Voltage Range | 200-250Vac 50/60Hz | ||||||
| Input Current | <0.072A | <0.077A | <0.077A | <0.066A | <0.077A | <0.02A | |
| Power Factor | PF>0.9 | PF>0.9 | PF>0.9 | PF>0.9 | PF>0.9 | PF>0.9 | |
| THD | 230Vac@THD <18% (at full load) | ||||||
| Efficyency | 77% | 79% | 78% | 78% | 77% | 75% | |
| Inrush Current(typ.) | Cold start1.44A | Cold start1.54A | Cold start1.54A | Cold start1.32A | Cold start1.54A | Cold start0.4A | |
| ENVIRONMENT | Anti Surge | L-N: 1.5kV | |||||
| Leakage Current | <0.25mA/230Vac | ||||||
| Working Temperature | ta: 45 °C tc: 85 °C | ||||||
| Working Humidity | 20 ~ 95%RH, non-condensing | ||||||
| Storage Temp., Humidity | -40 ~ 80 °C , 10~95%RH | ||||||
| Vibration | 10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes. | ||||||
| PROTECTION | Over-heat Protection | Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, , auto recovers. | |||||
| Over Load Protection | Shut down the output when rated power≥102%, auto recovers. | ||||||
| Short Circuit Protection | Shut down automatically if short circuit occurs, auto recovers. | ||||||
| Non-load Protection | Shut down the output if no load, auto recovers when load back to normal. | ||||||
| SAFETY | Withstand Voltage | I/P-O/P: 3750Vac | |||||
| Isolation Resistance | I/P-O/P: 100MΩ/500VDC/25°C/70%RH | ||||||
| Safety Standards | IEC/EN61347-1, IEC/EN61347-2-13 | ||||||
| EMC Emission | EN55015, EN61000-3-2 Class C, IEC61000-3-3 | ||||||
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11, EN61547 | ||||||
| Strobe Test Standard | IEEE 1789 | ||||||
| OTHERS | Dimension | 104×39×26mm(L×W×H) | |||||
| Packing | 105×40×26.5mm(L×W×H) | ||||||
| Weight(G.W.) | 68g±10g | ||||||
LED DRIVER MODEL LIS
| Constant Voltage TRIAC Dimmable LED DRIVER | |||||||
| Series | MODEL | Input Voltage | Power | Output Voltage | Output Current | Power Factor | Dimension |
| PE702 series | PE702TV12 | 200-250VAC | 20W | 12V DC | 1670mA | 0.6 | 135*43.5*26.5mm |
| PE702TV24 | 24V DC | 830mA | |||||
| PE-TL60TV series | PE-TL60TV12 | 200-250VAC | 60W | 12V DC | 2.5A | 0.6 | 165*37*27mm |
| PE-TL60TV24 | 24V DC | 5.0A | |||||
| PE-TL100TV series | PE-TL100TV12 | 200-250VAC | 100W | 12V DC | 8.3A | 0.6 | 180*47.5*32mm |
| PE-TL100TV24 | 24V DC | 4.2A | |||||
| PE-TL150TV series | PE-TL150TV12 | 200-250VAC | 150W | 12V DC | 10.0A | 0.6 | 230*47.5*32mm |
| PE-TL150TV24 | 24V DC | 6.25A | |||||
| PE-TL250TV series | PE-TL250TV24 | 200-250VAC | 250W | 24V DC | 10.5A | 0.6 | 264.5*47.5*32mm |
| PE-TL300TV series | PE-TL300TV24 | 200-250VAC | 300W | 24V DC | 12.5A | 0.6 | 264.5*47.5*32mm |
| Constant Current TRIAC DIMMING LED DRIVER | |||||||
| Series | MODEL | Input Voltage | Power | Output Voltage | Output Current | Power Factor | Dimension |
| PE294R series | PE294R4230 | 200-250VAC or 90-130VAC |
12.6W | 25-42V DC | 0-300mA | 0.95 | 98*39*26mm |
| PE294R2450 | 12W | 12-24V DC | 0-500mA | 0.95 | |||
| PE294R1570 | 10.5W | 6-15V DC | 0-700mA | 0.95 | |||
| PE294R0670 | 4.2W | 2.5-6V DC | 0-700mA | 0.95 | |||
| PE296R series | PE296R2470 | 200-250VAC or 90-130VAC |
16.8W | 12-24V DC | 0-700mA | 0.95 | 132*44*29mm |
| PE296R4240 | 16.8W | 25-42V DC | 0-400mA | 0.95 | |||
| PE296R3845 | 16.8W | 25-38V DC | 0-450mA | 0.95 | |||
| PE296R6030 | 18W | 43-60V DC | 0-300mA | 0.95 | |||
| PE296R7025 | 17.5W | 42-70V DC | 0-400mA | 0.95 | |||
| PE292R series | PE292B2490 | 200-250VAC or 90-130VAC |
21.6W | 12-24V DC | 0-900mA | 0.95 | 156.5*44*29mm |
| PE292R4270 | 29.4W | 25-42V DC | 0-700mA | 0.95 | |||
| PE292R7040 | 28W | 43-70V DC | 0-400mA | 0.95 | |||
| PE292R6050 | 30W | 43-60V DC | 0-500mA | 0.95 | |||
| PE299B series | PE292B42105 | 200-250VAC or 90-130VAC |
44.1W | 25-42V DC | 0-1050mA | 0.95 | 156.5*44*29mm |
| PE292B7060 | 43W | 43-70V DC | 0-600mA | 0.95 | |||
| PE298B series | PE298B24200 | 200-250VAC or 90-130VAC |
50W | 12-24V DC | 0-2000mA | 0.95 | 208.0*44.5*33.5mm |
| PE298B42120 | 50W | 25-42V DC | 0-1200mA | 0.95 | |||
| PE298B7070 | 50W | 43-70V DC | 0-700mA | 0.95 | |||

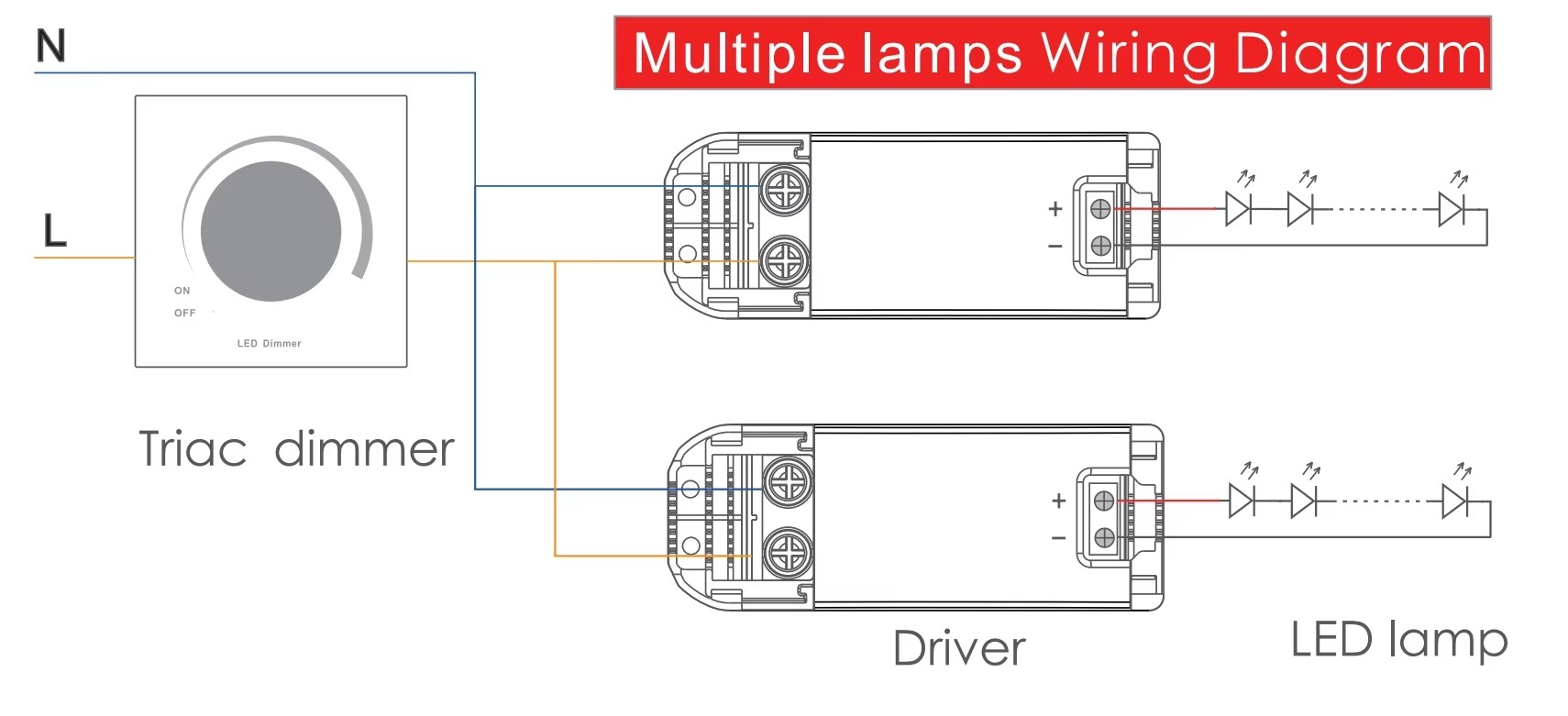

Wiring Diagram:
