Constant Current Triac dimmable driver

PE298B series dimmable led dirver

█  Features:

● LED phase-cut dimming driver, dimming range 2-100%

● used for RPC Mosfet Dimmer and FPC Traic dimmer

● Active PFC

● Protections: Short circuit/over voltage/over current protection

● Natural air cooling

● Big terminal locked by screw

● Economic and convenient installation

● 3 years warranty

● size: 208*44.5*33.5mm(LxWxH)


    Our company offers a selection of classic models in constant current triac dimmable led drivers. In our small-sized circular series, we have models such as PE280 (8W), PE281 (12W), PE282 (18W), and PE283 (30W). These power supplies are characterized by their compact size and utilize controllable silicon technology to achieve efficient dimming capabilities.

    Additionally, we have a classic series of flicker-free dimmable led driver, which include models such as PE294 (12W), PE296 (18W), PE292 (30W), PE299 (36W), and PE298 (50W). These power supplies are designed to eliminate flickering and provide stable illumination.

    Features:
    LED phase-cut dimming driver, dimming range 2-100%
    Suitable for RPC MOSFET dimmer and FPC TRAIC dimmer
    Active PFC
    Protections:short circuit/over voltage/over current
    Natural cold wind
    Big terminal locked by screw
    Suitable for LED home lighting and commercial lighting
    Safe no load protection device

    Protection class II
    Three years warranty


    PE298B is one of the constant current dimming LED driver developed by my company with high power factor ,high efficiency, high precision, the use of the efficient stable low loss switch control chip and the high performance components makes it with low noise, energy saving, environmental protection, long life and other characteristics.


    Model PE298B24200 PE298R42135 PE298B42120 PE298B42105 PE298B7070
    OUTPUT Output Voltage 12-24Vdc 25-42Vdc 25-42Vdc 25-42Vdc 43-70Vdc
    Max Output Voltage 24Vdc 42Vdc 42Vdc 42Vdc 70Vdc
    Non-load Output Voltage 27Vdc 45Vdc 45Vdc 25Vdc 72Vdc
    Output Current 2000mA 1350mA 1200mA 1050mA 700mA
    Output Power 48W 56W 50W 44W 49W
    Dimming Range 2~100%,
    Current Accuracy ±5%
    Ripple & Noise =500mv p-p
    INPUT Dimming Interface Triac Leading edge / Tralling edge Dimming Led driver
    Input Voltage Range 200-250Vac 50/60Hz
    Input Current <0.072A <0.077A <0.077A <0.066A <0.077A <0.02A
    Power Factor PF>0.9 PF>0.9 PF>0.9 PF>0.9 PF>0.9 PF>0.9
    THD 230Vac@THD <18% (at full load)
    Efficyency 77% 79% 78% 78% 77% 75%
    Inrush Current(typ.) Cold start1.44A Cold start1.54A Cold start1.54A Cold start1.32A Cold start1.54A Cold start0.4A
    ENVIRONMENT Anti Surge L-N: 1.5kV
    Leakage Current <0.25mA/230Vac
    Working Temperature ta: 45 °C tc: 85 °C
    Working Humidity 20 ~ 95%RH, non-condensing
    Storage Temp., Humidity -40 ~ 80 °C , 10~95%RH
    Vibration 10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.
    PROTECTION Over-heat Protection Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, , auto recovers.
    Over Load Protection Shut down the output when rated power≥102%, auto recovers.
    Short Circuit Protection Shut down automatically if short circuit occurs, auto recovers.
    Non-load Protection Shut down the output if no load, auto recovers when load back to normal.
    SAFETY Withstand Voltage I/P-O/P: 3750Vac
    Isolation Resistance I/P-O/P: 100MΩ/500VDC/25°C/70%RH
    Safety Standards IEC/EN61347-1, IEC/EN61347-2-13
    EMC Emission EN55015, EN61000-3-2 Class C, IEC61000-3-3
    EMC Immunity EN61000-4-2,3,4,5,6,8,11, EN61547
    Strobe Test Standard IEEE 1789
    OTHERS Dimension 104×39×26mm(L×W×H)
    Packing 105×40×26.5mm(L×W×H)
    Weight(G.W.) 68g±10g

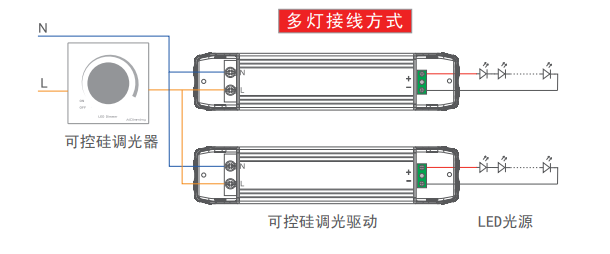

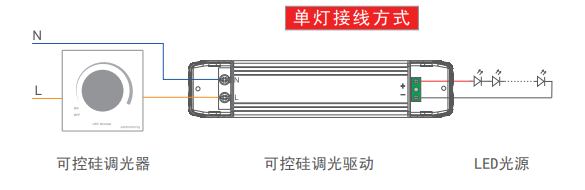

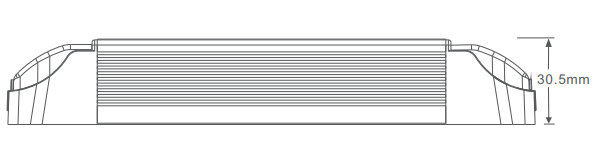

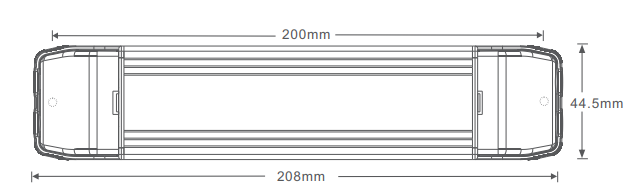

    Dimension:




    The input terminal: wire gauge 22AWG-14AWG (0.315mm2 – 2.06mm2)wire stripping requirement:9-10mm.
    The output terminal: wire gauge 22AWG-12AWG (0.315mm2 – 3.15mm2)wire stripping requirement :6-7mm.

    NOfe:
    **1:please
    pay attention to the distinction between input and output, connect corectly, then power on
    " *2: please connect first the load of the DC output, open the power supply after checking; in the constant curent mode, if power on at
    open circuit, please turn off the power supply and can‘t connect the LED until the electric energy stored by the output release, or it
    may damage the LED;
    **3:this type of power supply is only limited to the use of the LEDlamps and lanterns,theinputvoltage range is AC200-250V, the
    heat insulation cotton and other items that obstruct the heat dissipation of the product, which conforms to the product under the
    Specified output voltage, current range, the use environment temperature is-20-45 degrees,and the surface can not cover the
    conditions of the environment, this product enjoys three yearsof free warranty.

    The abnormal conditions and the corresponding treatment methods

    1, the LED lamp doesn‘t bright after the dimming driver is connected at the first time please turn off the AC input and check as follow:
    a) Whether or not DC output bad contact;
    b) Whether DC output polarity is reversed, or the LED board is welded anti;
    c) Whether AC input is bad contact; test after eliminating these failures.
    2, the device has good connection, LED lights, but the LED flicker, please turn off the AC input, then check the DC output:
    a) overload, under load
    b) Whether or not the parameters and actual parameters match.
    3, please timely communicate with us if you any questions in the using, we will try our best to solve the problems with you.
