Constant Voltage led driver

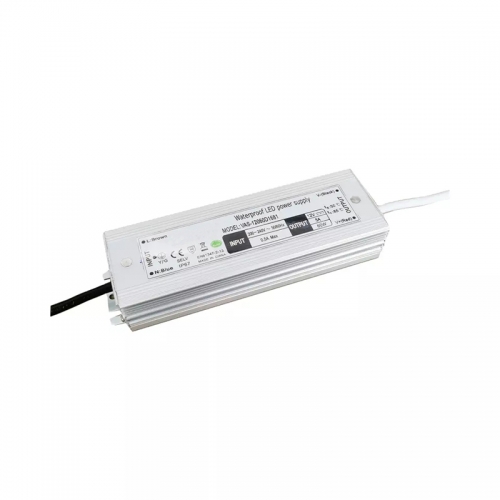

60W waterproof led driver constant voltage

Short Description:

Brand: STARWELL

Input Voltage: 100-240VAC

Output Voltage: 24VDC / 12VDC

Output Current: 5A / 2.5A

Working Mode: Constant Voltage type

Typical efficiency:88%

Size: 179X41X31mm(L*W*H)

Certification: CE, RoHS, EMC, SAA

    STARWELL is a reliable manufacturer dedicated to delivering high-quality 60W waterproof LED drivers. We provide exceptional service and competitive pricing to meet your requirements.

    Detailed Introduction

    The STARWELL IP67 60W waterproof LED driver is specifically designed for high-performance in waterproof environments. With an IP67 rating, it ensures excellent protection against water ingress, making it suitable for a variety of indoor and outdoor applications, including LED lighting, outdoor signage, and landscape illumination.

    This driver features a constant voltage output, which guarantees stable power delivery, enhancing the efficiency and lifespan of your LED devices. It is energy-efficient, reliable, and operates seamlessly even in challenging conditions. Count on our waterproof power supply to meet the demands of your diverse applications.

    STARWELL IP67 60W Waterproof LED Driver Specifications

    Item No VA-12060D091 VA-24060D091 VAS-12060D1681 VAS-24060D1681
    Output Voltage 12V 24V 12V 24V
    Output Current 5A 2.5A 5A 2.5A
    Rated Power 60W
    Input Voltage 170264VAC or 240374VDC
    Efficiency (Typical) 86% 89% 86% 87%
    Power Factor PF≥0.5/230V (at full load) PF≥0.9/230V (at full load)
    Waterproof Rating IP67
    Warranty 2/3/5 years
    Certification CE, RoHS, BIS CE, RoHS, BIS, EMC, SAA
    Working Temperature -25°C to +50°C
    Working Humidity 10%~90% RH, No Condensation
    Storage Temperature & Humidity -25°C to +75°C, 5%~95% RH
    Dimensions 179 x 41 x 31 mm 182 x 56 x 30 mm

    Features and Applications

    This compact LED driver is perfect for:

    • Signage and Backlit Letters: Ideal for illuminated channel letters and light boxes.
    • Under-Cabinet Lighting: Great for RVs and motorhomes.
    • Accent Lighting: Suitable for various low-voltage applications.

    The STARWELL IP67 60W waterproof LED driver is a versatile solution that provides reliable power and protection against moisture. Whether used for garden lighting or architectural features, it is the perfect choice for those seeking a dependable and adaptable power source.

    Advantages

    1. The first factory in mainland China to specialize in waterproof LED power supplies.
    2. Over a decade of experience in R&D and manufacturing.
    3. Served over 2,500 customers worldwide, including 2,000 in mainland China.
    4. High reliability and stability proven in numerous outdoor lighting projects.
    5. In-house transformer production ensures quality control and stability.
    6. Comprehensive certifications including UL, SAA, and EMC, often lacking in smaller manufacturers.
    7. Use of premium components from renowned brands like Ruby.
    8. Strong after-sales service with one-to-one replacements for defective items.
    9. Rigorous process control ensures consistent product quality.
    10. A dedicated R&D team of over 30 experts.
    11. Flexible delivery options, with bulk orders typically shipped in two weeks and small orders in three days.
    12. Competitive pricing and ODM/OEM capabilities compared to MeanWell, while maintaining high quality.




    Specifications

    Item No

    VF-12060D1310

    VF-24060D1310

    Output Voltage

    12V

    24V

    Output Current

    5A

    2.5A

    Rated power

    60W

    Input Voltage

    90~305Vac or 127~432Vdc

    Efficiency Typ.)

    87.00%

    88.00%

    Power factor

    PF≥0.50/110V(at full load) PF≥0.45/230V(at full load)

    Waterproof Rating

    IP67

    Warranty

    2/3/5 years

    Certificate

    CE, Rohs, UL, Class2

    Working temperature

    -25°C~+50°C

    Working humidity

    10%~90%RH, No Condensation

    Storage temperature and humidity

    -25°C~+75°C, 5%~95%RH

    Dimension

    143.7X47X33.8mm(L*W*H)

    Package

    0.37Kg/PCS, 50PCS/18.5Kg/box, ( 415X325X205mm )

    For more information, such as specific data sheet, certificate files, dimensions drawing, temperature load curve and input voltage load curve, kindly please contact us.



    Features

    Constant voltage mode power supply, non- dimmable.

    Slim and thin aluminum case design, suitable to narrow installation space.

    Protection functions of short circuit / over current / over voltage / over temperature

    IP67 rating, available at dry / damp / wet locations.

    Compliance to world wide safety regulation for LED lighting, including US & Canada standard of UL certificate.

    Application

    This 60w power supply is compatible with kinds of LED linear lighting, led strip lighting, landscape lighting, flood light, square light, gardening light, projecting lamp, commercial lighting, refrigerator lighting, supermarket lighting etc.

    Quality Guarantee

    1,Standard anti-static and dust-free workshops;
    2,Well-trained employees and advanced operating machines;
    3,Finished products will be detected by detecting equipment; 100% testing before shipment
    4,All series with top quality can meet CE,UL,CCC and SAA standards. Factory meets ISO9001 qualification.

    5,High level of automated production with more machines are adopted, such as potting machine,packaging machine and Plug-in Machine. We manage to decrease defective rate as low as 0.3% by combing machines and manpower.



    Please submit your basic information, we will contact you as soon as possible!
