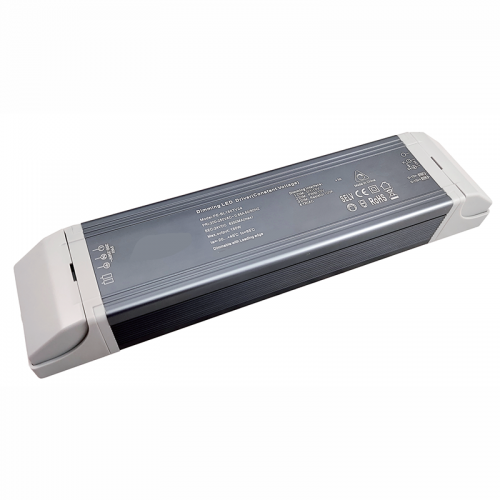

150W Constant Voltage Triac Dimmable LED Driver Features:
1. Constant voltage triac dimming driver dimming range 0-100%
2. Support leading edge dimmer and leading edge dimming system
3. Support 0-10V / 1-10V / 10V PWM / 100k potentiometer dimming
4. No stroboscopic dimming, super compatible dimming power supply
5. Protection type: short circuit / over current / over voltage
6. Aluminum alloy shell, fast heat dissipation
7. Unique design, slow on and slow off function
8. Suitable for constant voltage LED strip light and other applications
9. Meet SELV safety extra low voltage standard
10. 5years warranty
11. Size: 230*47.5*32mm
150W Constant Voltage Triac Dimmable LED Driver Model list:
Triac & 0/1-10V 2 in 1 constant voltage dimming

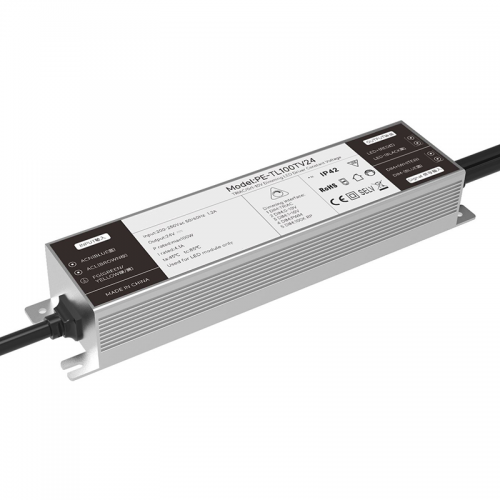

| Series | Model | Input | Power | PF | Output Voltage | Output Current |
| PE702 20W |
PE702TV12 | AC200V-250V | 20W | 0.6PF | 12V | 1670mA |
| PE702TV24 | 24V | 830mA | ||||
| PE-L80TV 80W |
PE-L80TV24 | AC200V-250V | 80W | 0.6PF | 24V | 3.33A |
| PE-TL60TV 60W |
PE-TL60TV24 | AC200V-250V | 60W | 0.6PF | 24V | 2.5A |
| PE-TL60TV12 | AC200V-250V | 12V | 5A | |||
| PE-TL100TV 100W |
PE-TL100TV24 | AC200V-250V | 100W | 0.6PF | 24V | 4.2A |
| PE-TL100TV12 | AC200V-250V | 12V | 8.3A | |||
| PE-TL150TV 150W |
PE-TL150TV24 | AC200V-250V | 150W | 0.6PF | 24V | 6.25A |
| PE-TL120TV12 | AC200V-250V | 120W | 12V | 10A | ||
| PE-TL250TV 250W |
PE-TL250TV24 | AC200V-250V | 250W | 0.6PF | 24V | 10.5A |
| PE-TL300TV 300W |
PE-TL300TV24 | AC200V-250V | 300W | 0.6PF | 24V | 12.5A |
150W Constant Voltage Triac Dimmable LED Driver Application:
1. Constant voltage lamp strip, hard lamp strip
2. Support leading edge system dimming
3. Villa, high-end hotel and other applications
4. Ultra thin light box
150W Constant Voltage Triac Dimmable LED Driver Specification:
| Model | PE-TL150TV24 | PE-TL150TV12 | |
| OUTPUT | Output Voltage | 24Vdc | 12Vdc |
| Output Current | 6.25A Max | 10A Max | |
| Max Output Voltage | 24Vdc ±0.25v | 12Vdc ±0.25v | |
| Output Power | 150W Max | 120W Max | |
| Strobe Level | No flicker | ||
| Dimming Range | 0~100%， | ||
| PWM Dimming Frequency | >3600K | ||
| INPUT | Dimming Interface | Triac,0-10V/1-10V/10V PWM/100KResistor DIM Signal control current < 0.1mA | |
| Input Voltage Range | 200-250Vac 50/60Hz | ||
| Power Factor | 0.6 | ||
| Input Current | <1.5A | ||
| Efficiency(typ.) | 89.6% | 88% | |
| Inrush Current(typ.) | Cold start80A/376us | ||
| Anti Surge | L-N: 2kV | ||
| Leakage Current | <0.5mA/230Vac | ||
| ENVIRONMENT | Working Temperature | ta: 45°C tc: 85 °C | |
| Working Humidity | 20 ~ 95%RH, non-condensing | ||
| Storage Temp., Humidity | -40 ~ 80°C , 10~95%RH | ||
| Waterproof grade | Ip42 | ||
| PROTECTION | Over Load Protection | Shut down the output when rated power≥102%, auto recovers. | |
| Short Circuit Protection | Shut down automatically if short circuit occurs, auto recovers. | ||
| Non-load Protection | output Constant Voltage. | ||
| SAFETY | Withstand Voltage | I/P-O/P: 3750Vac | |
| Isolation Resistance | I/P-O/P: 100MΩ/500VDC/25°C/70%RH | ||
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11, EN61547 | ||
| Strobe Test Standard | IEEE 1789 | ||
| OTHERS | Dimension | 230(255)*47.5*32mm(L×W×H) | |
| Packing | 288×35×60mm(L×W×H) | ||
| Weight(G.W.) | 580±10g | ||
| EXPLAIN | During use, please pay attention to the input and output wiring, and do not reverse the connection. It is forbidden to connect the signal interface with a voltage higher than 15V, otherwise the power supply will be damaged During the use of the power supply, when the load is close to full load, the temperature of the power supply housing is slightly higher. Because of the high heat dissipation efficiency of aluminum, the internal temperature can be ensured Increase service life | ||

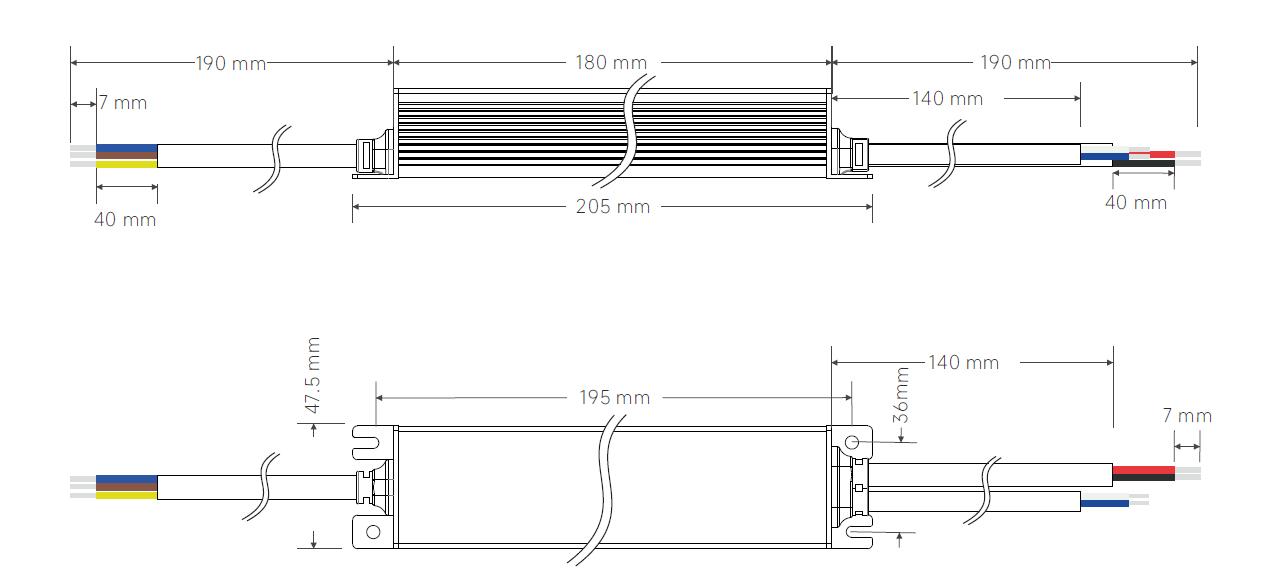

Dimensions:

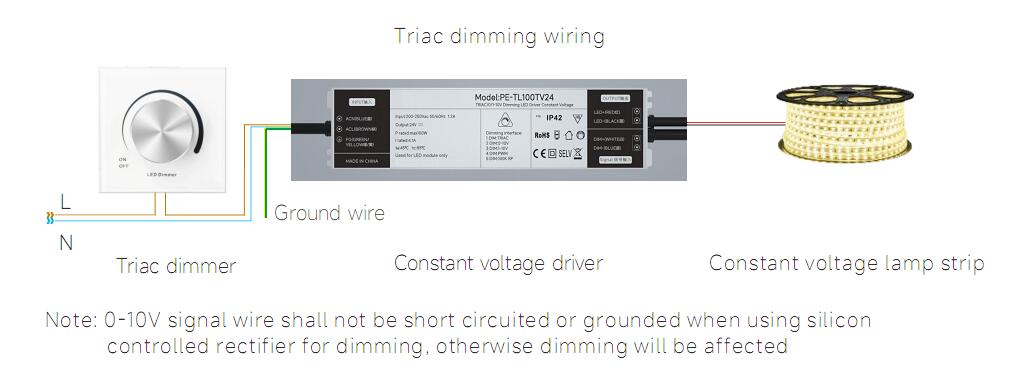

Wiring diagram:
