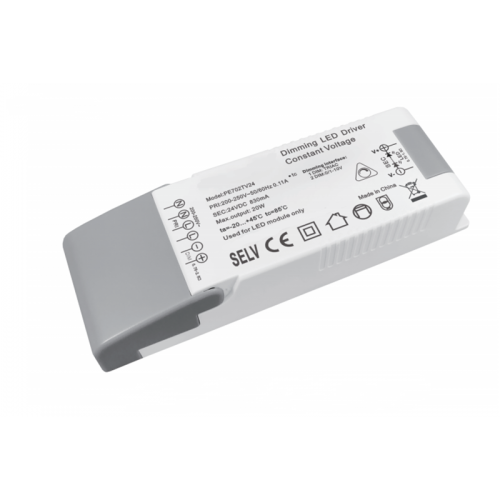

PE702TV adopts CPU control and designs a variety of control modes. The dimming is slow on and off. The raw materials used are first-line brands and imported chip ultra deep dimming design, It matches a variety of intelligent dimming systems and dimmers on the market. The input pressure line design is convenient for installation.
20W Constant Voltage Triac Dimmable LED Driver Features:
1. Constant voltage thyristor dimming power supply dimming range 0-100%
2. Support leading edge tangent dimmer and leading edge dimming system
3. Support 0-10V / 1-10V / 10V PWM / 100k potentiometer dimming
4. No stroboscopic dimming, super compatible dimming power supply
5. Protection type: short circuit / over current / over voltage
6. Unique design, slow on and slow off function
7. Suitable for constant voltage LED lamp band and other applications
8. Meet SELV safety extra low voltage standard
9. 3 years warranty
10. Size: 135*43.5*26.5mm
20W Constant Voltage Triac Dimmable LED Driver Model list:
Triac & 0/1-10V 2 in 1 constant voltage dimming
| Series | Model | Input | Power | PF | Output Voltage | Output Current |
| PE702 20W |
PE702TV12 | AC200V-250V | 20W | 0.6PF | 12V | 1670mA |
| PE702TV24 | 24V | 830mA | ||||
| PE-L80TV 80W |
PE-L80TV24 | AC200V-250V | 80W | 0.6PF | 24V | 3.33A |
| PE-TL60TV 60W |
PE-TL60TV24 | AC200V-250V | 60W | 0.6PF | 24V | 2.5A |
| PE-TL60TV12 | AC200V-250V | 12V | 5A | |||
| PE-TL100TV 100W |
PE-TL100TV24 | AC200V-250V | 100W | 0.6PF | 24V | 4.2A |
| PE-TL100TV12 | AC200V-250V | 12V | 8.3A | |||
| PE-TL150TV 150W |
PE-TL150TV24 | AC200V-250V | 150W | 0.6PF | 24V | 6.25A |
| PE-TL120TV12 | AC200V-250V | 120W | 12V | 10A | ||
| PE-TL250TV 250W |
PE-TL250TV24 | AC200V-250V | 250W | 0.6PF | 24V | 10.5A |
| PE-TL300TV 300W |
PE-TL300TV24 | AC200V-250V | 300W | 0.6PF | 24V | 12.5A |
20W Constant Voltage Triac Dimmable LED Driver Application:
1. Constant voltage lamp strip, hard lamp strip
2. Support front cut system dimming
3. Villa, high-end hotel and other applications
4. Ultra thin light box
20W Constant Voltage Triac Dimmable LED Driver Specification:
| Model | PE702TV24 | PE702V12 | |
| OUTPUT | Output Voltage | 24Vdc | 12Vdc |
| Output Current | 830mA Max | 1670mA Max | |
| Max Output Voltage | 24Vdc ±0.5v | 12Vdc ±0.5v | |
| Output Power | 20W Max | 20W Max | |
| Strobe Level | No flicker | ||
| Dimming Range | 0~100%， | ||
| PWM Dimming Frequency | >3600K | ||
| INPUT | Dimming Interface | Triac,0-10V/1-10V/10V PWM/100KResistor DIM | |
| Input Voltage Range | 200-250Vac | ||
| Frequency | 50/60Hz | ||
| Input Current | <0.2A | ||
| Efficiency(typ.) | 83-85% | ||
| Inrush Current(typ.) | Cold start2A | ||
| Anti Surge | L-N: 1.8kV | ||
| Leakage Current | <0.5mA/230Vac | ||
| ENVIRONMENT | Working Temperature | ta: 45°C tc: 85 °C | |
| Working Humidity | 20 ~ 95%RH, non-condensing | ||
| Storage Temp., Humidity | -40 ~ 80°C , 10~95%RH | ||
| Waterproof grade | IP40 | ||
| PROTECTION | Over Load Protection | Shut down the output when rated power≥102%, auto recovers. | |
| Short Circuit Protection | Shut down automatically if short circuit occurs, auto recovers. | ||
| Non-load Protection | output Constant Voltage. | ||
| SAFETY | Withstand Voltage | I/P-O/P: 3750Vac | |
| Isolation Resistance | I/P-O/P: 100MΩ/500VDC/25°C/70%RH | ||
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11, EN61547 | ||
| Strobe Test Standard | IEEE 1789 | ||

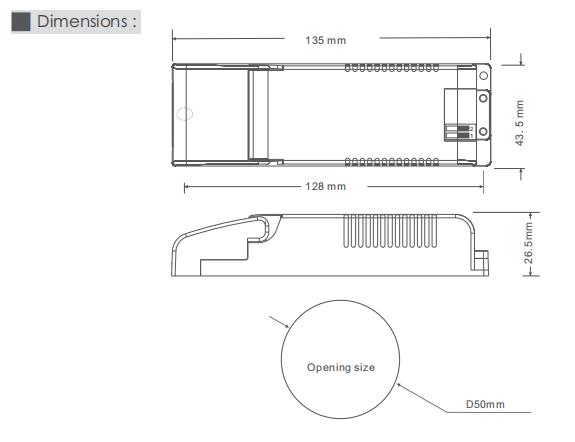

| OTHERS | Dimension | 135×43.5×26.5mm(L×W×H) | |
| Packing | PE bag | ||
| Weight(G.W.) | 130±10g | ||

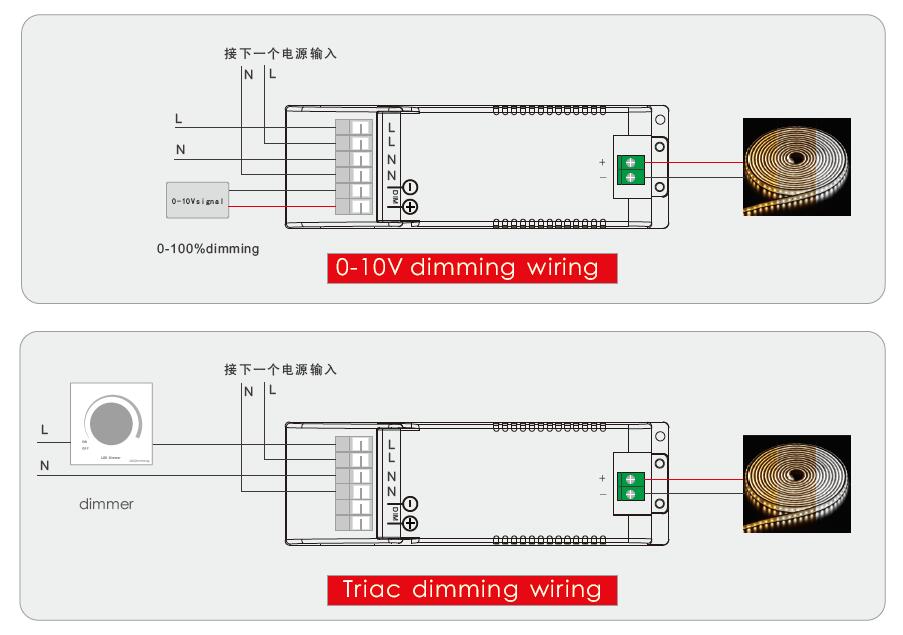

Triac Dimmer Wiring diagram.
