Item

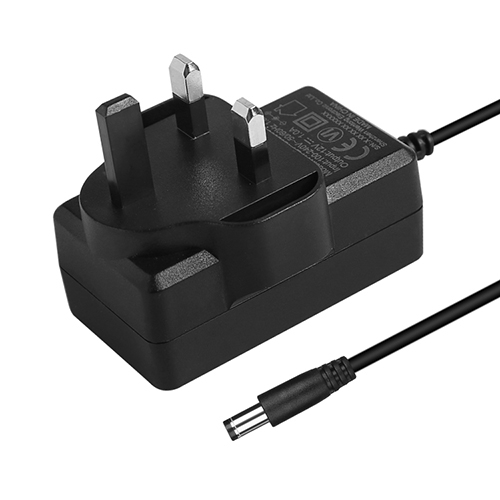

5W 12W 18W UK wallmounted Power Adapter

Model

SW-01xxxyyy-S04UK

INPUT

100-240VAC 50/60Hz

Output

SEE MODEL LIST

Features

Ripple & Noise

<120mV

Energy star level

Eup 2.0, Doe VI, CEC VI, CoC VI

Efficiency

>88%

Installing

Available for the system of Safety Class I/II

Environment

Operation Temp

-10 ~ +65℃, 10 ~ 95% RH non-condensing

Storage Temp

-20 ~ +85℃ (Refer to "Derating Curve")

Storage Humidity

20 ~ 90% RH non-condensing

Vibration

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

Cooling Method

by NTC (natural cooling)

Safety&EMC

Safety Standard

UL 62368, ETL 62368, EN 62368, EN 61558

Safety Approvals

UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more
information, please contact us.

EMC Stardard

EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020

EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020

MTBF

5K hrs min. MIL-HDBK-217F (25℃)

Machanicals

DC Connectors

USB-C, 5.5x2.1mm, 5.5x2.5mm, 4.0x1.7mm, 3.5x1.35mm and more available

Dimension

 60x30x25mm (LxWxH) exclude plug

Packing

100g; 100pcs/12.0Kg/0.056CBM

5W WALL MOUNTED POWER ADAPTER

POWER

MODEL

INPUT

OUTPUT
VOLT

OUTPUT
CURRENT

Certificates

PLUG

5W Series

SW-01050050-S04BS

100-240VAC

5V

500mA

CE, UKCA

UK plug

SW-01050100-S04BS

5V

1.0A

SW-01050120-S04BS

5V

1.2A

SW-01090060-S04BS

9V

0.6A

SW-01120050-S04BS

12V

0.5A

12W 18W UK POWER ADAPTER

POWER

MODEL

INPUT

OUTPUT
VOLT

OUTPUT
CURRENT

Certificates

PLUG

12W Series

SW-01050240-S04BS

100-240VAC

5V

2.4A

UKCA, CE, TUV

UK

SW-01060200-S04BS

6V

2A

SW-01090150-S04BS

9V

1.5A

SW-01120100-S04BS

12V

1A

SW-01150080-S04BS

15V

0.8A

SW-01240050-S04BS

24V

0.5A

18W Series

SW-0105030-S04BS

100-240VAC

5V

3.0A

UKCA, CE, TUV

UK

SW-01060300-S04BS

6V

3.0A

SW-01090200-S04BS

9V

2.0A

SW-01120150-S04BS

12V

1.5A

SW-01180100-S04BS

18V

1.0A

SW-01240750-S04BS

24V

0.75A
