Wallmounted power adapter

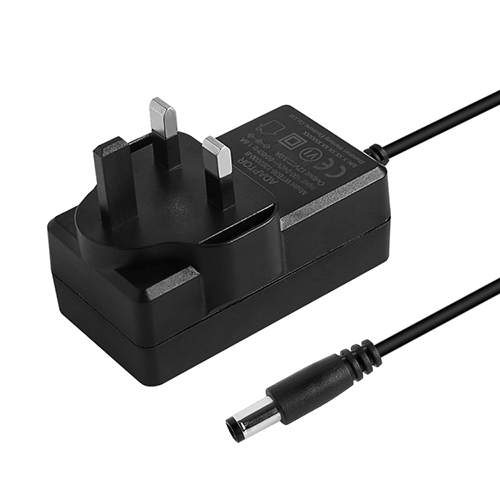

36W UK power adapter

36W UK plug wallmounted power adapter
input: 100-240VAC
output: see below model list
Plug typpe: US/CN plug only
Certificates: UKCA,CE
Color: black or white  optional.
DC jack: 5.5*2.1mm, 5.5*2.5mm, 4.0*1.7mm, 3.5*1.35mm, USB C etc...
    Product Description


    Item

    36W UK wallmounted Power Adapter

    Model

    SW-01xxxyyy-S06BS

    INPUT

    100-240VAC 50/60Hz

    Output

    SEE MODEL LIST





    Features

    Ripple & Noise

    <120mV

    Energy star level

    Eup 2.0, Doe VI, CEC VI, CoC VI

    Efficiency

    >88%

    Installing

    Available for the system of Safety Class I/II

    Environment

    Operation Temp

    -10 ~ +65, 10 ~ 95% RH non-condensing

    Storage Temp

    -20 ~ +85 (Refer to "Derating Curve")

    Storage Humidity

    20 ~ 90% RH non-condensing

    Vibration

    10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

    Cooling Method

    by NTC (natural cooling)

    Safety&EMC

    Safety Standard

    UL 62368, ETL 62368, EN 62368, EN 61558, IEC60335, IEC60601

    Safety Approvals

    UL/cUL, ETL, CE, FCC, RoHS, UKCA, PSE, CB, SAA, KC for more
    information, please contact us.

    EMC Stardard

    EMC EMISSION: EN55032 class B (CISPR32), EN61000-3-2,-3, EAC TP TC 020

    EMC IMMUNITY: EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A, EAC TP TC 020

    MTBF

    5K hrs min. MIL-HDBK-217F (25)



    Machanicals

    DC Connectors

    USB-C, 5.5x2.1mm, 5.5x2.5mm, 4.0x1.7mm, 3.5x1.35mm and more available

    Dimension

     80x43x30mm (LxWxH) exclude plug

    Packing

    160g; 100pcs/18.0Kg/0.056CBM

     MODEL  LIST:


    36W WALL MOUNTED POWER ADAPTER

    POWER

    MODEL

    INPUT

    OUTPUT
    VOLT

    OUTPUT
    CURRENT

    Certificates

    PLUG

    36W series

    SW-01090400-S06BS

    100-240VAC

    9V

    4.0A

    UL,CE,FCC, RCM,C-TICK

    UK

    SW-01120300-S06BS

    12V

    3.0A

    SW-01150240-S06BS

    15V

    2.4A

    SW-01180200-S06BS

    18V

    2.0A

    SW-01240150-S06BS

    24V

    1.5A

    SW-01360100-S06BS

    36V

    1.0A

    SW-01480075-S06BS

    48V

    0.75A
